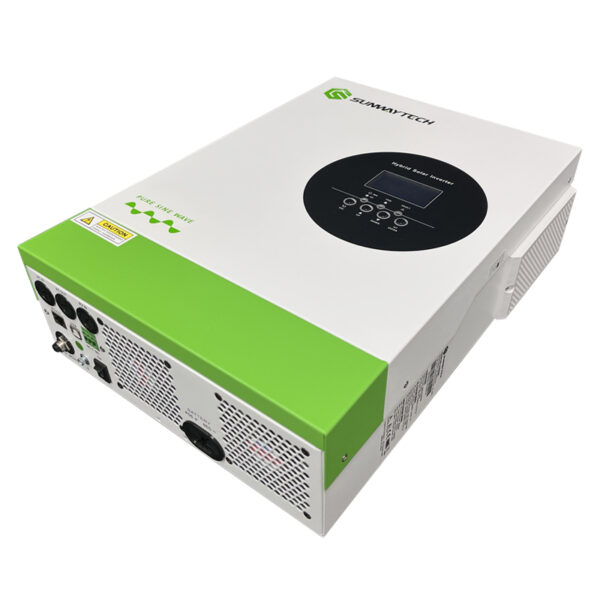

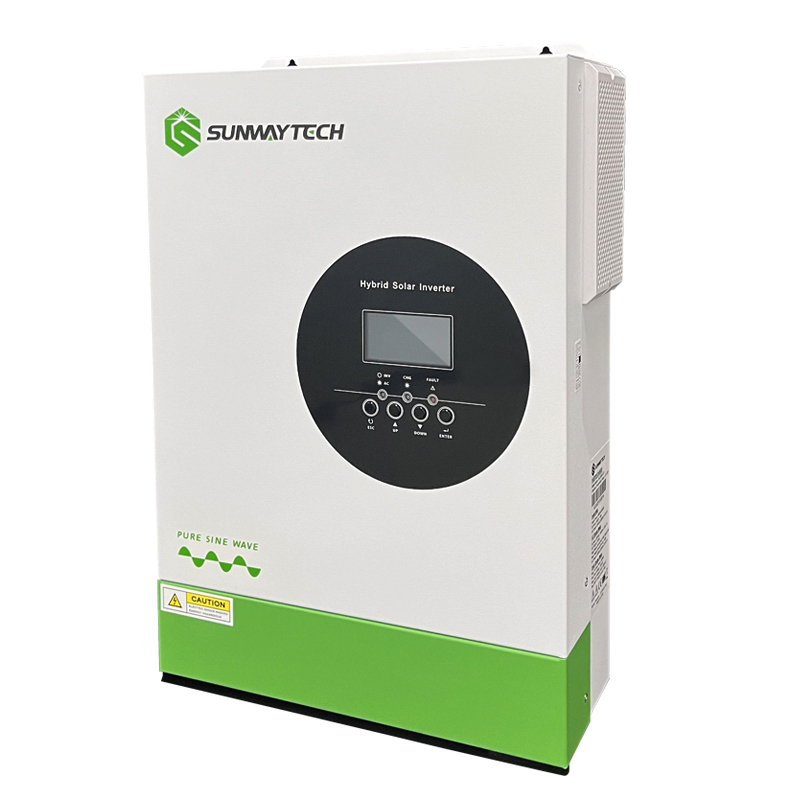

Sunway 5500w 220V Single Phase Off Grid Solar Inverter

Sunway 5500w 220V Single Phase Off Grid Solar Inverter

SUNWAY 3.5 kw 5kw MPPT solar inverters 3000w 5000w solar power inverter 230 volt inverter off grid for solar system

Model Number: SK 5500P-48L
Output power: 5.5kw
Output Voltage: 230V
Size: 448*295*129mm
Weight: 10KG



Model
SK-3500S-24
SK-5500P-48L
Capacity
3500VA/3500W
5500VA/5500W
Battery type
Lead Acid
Lead Acid/LiFePO4
Parallel Capability
No
Yes
Input
Nominal Voltage
230VAC
Acceptable Voltage Range
170-280VAC(For personal cumputer),90-280VAC(For home appliance)
Frequency
50Hz/60Hz(Auto sensing)
Output
Nominal Voltage
220/230VAC±5%
Surge Power
7000VA
11000VA
Frequency
50/60Hz
Wave Form
Pure sine wave
Transfer Time
10ms(For personal computer),20ms(For home appliances)
Peak Efficiency(PV to INV)
96%
Peak Efficiency(Battery to INV)
83%
Overload Protection
5s@≥150% load; 10@110%~150% load
Crest Factor
2:1
Admissiable Power Factor
0.6~1(inductive or capacitive)
Battery
Battery Voltage
24VDC
48VDC
Floating Charge Voltage
27VDC
54VDC
Overcharge Protection
33VDC
63VDC
Charge Method
CC/CV
Solar Charge & AC Charge
Solar Charge Type
MPPT
Maximum PV Array Power
4000W
5500W
Maximum PV Array Open Circuit Vol.
500VDC
PV Array of MPPT Voltage Range
120VDC~450VDC
Maximum Solar Input Current
15A
18A
Maximum Solar Charge Current
100A
100A
Maximum AC Charge Current
60A
60A
Maximum Charge Current
100A
100A
Physical
Product Dimension(D*W*H mm)
448*295*129mm
Package Size(D*W*H mm)
540*390*217mm
Net Weight(kgs)
9KG
10KG
Communication Interface
USB/Dry-contact
RS485/RS232/Dry-contact
Environment
Operation Temperature Range
-10℃~55℃
Storage Temperature
-15℃~50℃
Humidity
5% to 95% Relative Humidity(Non-condensing)

OFF GRID SOLAR INVERTER PRODUCT DETAILS
