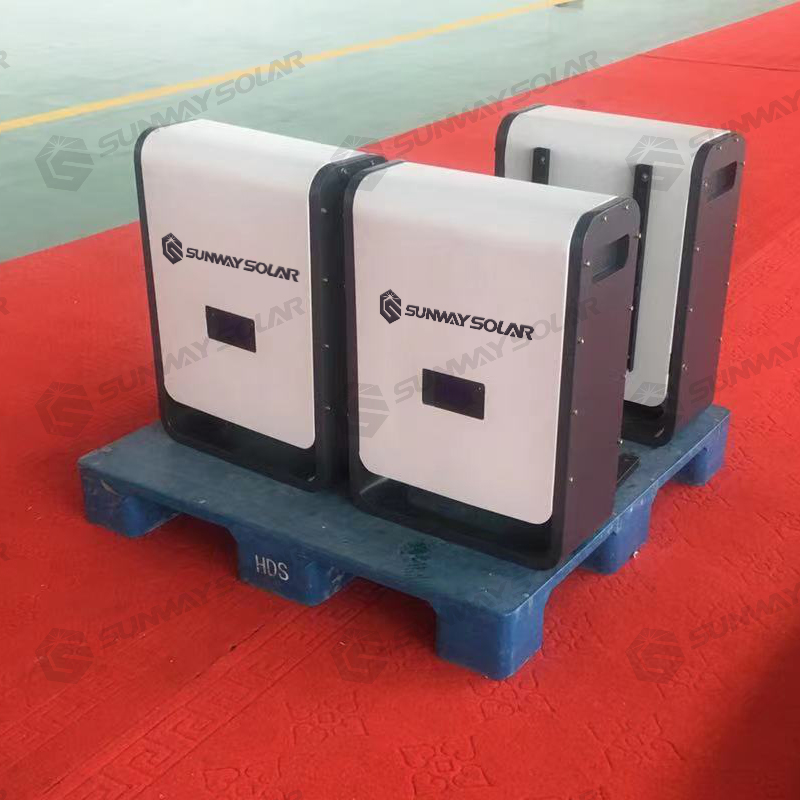

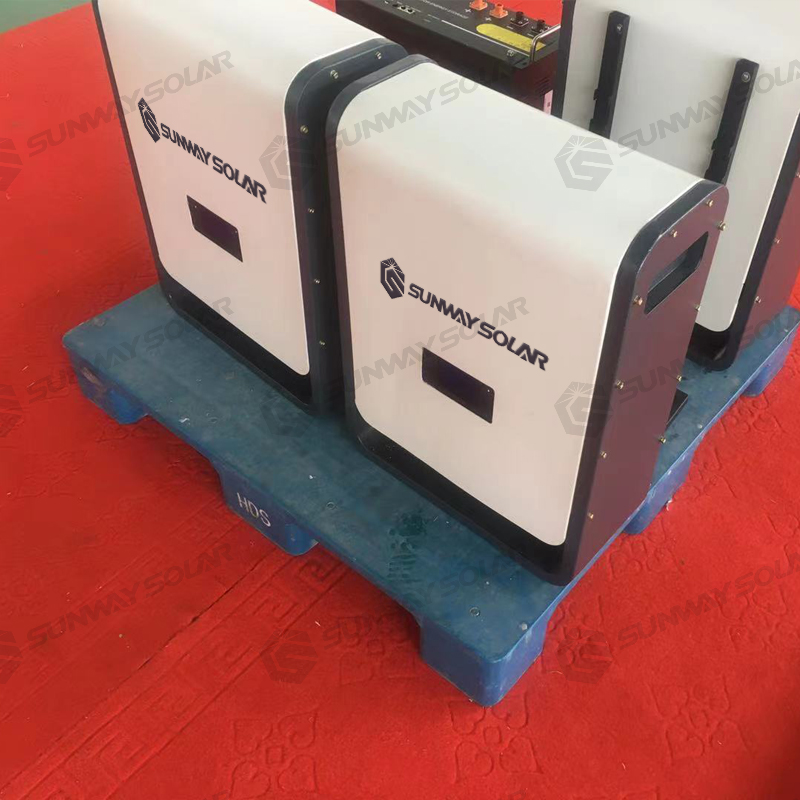

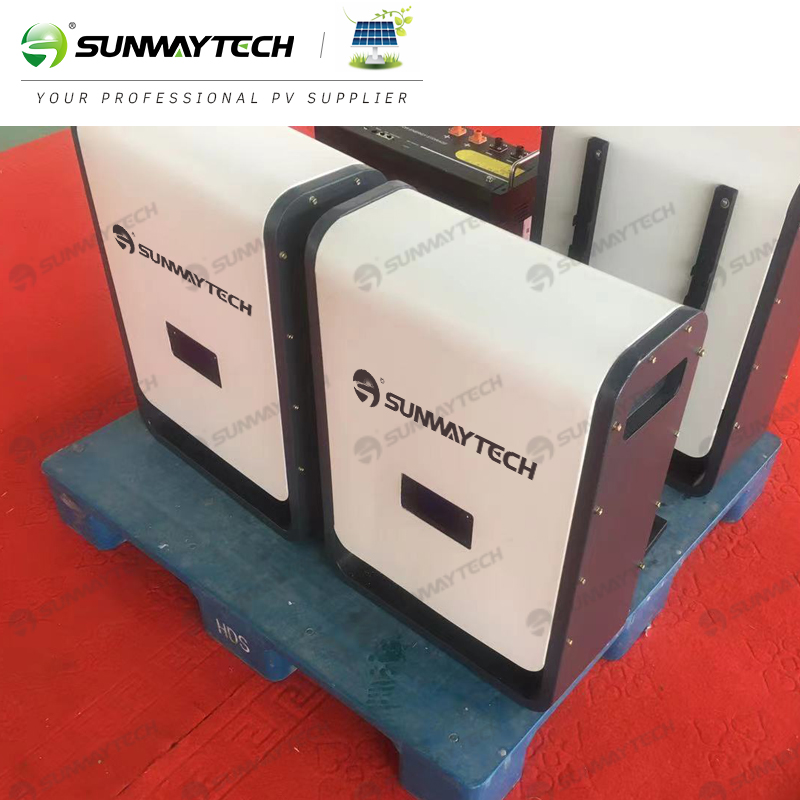

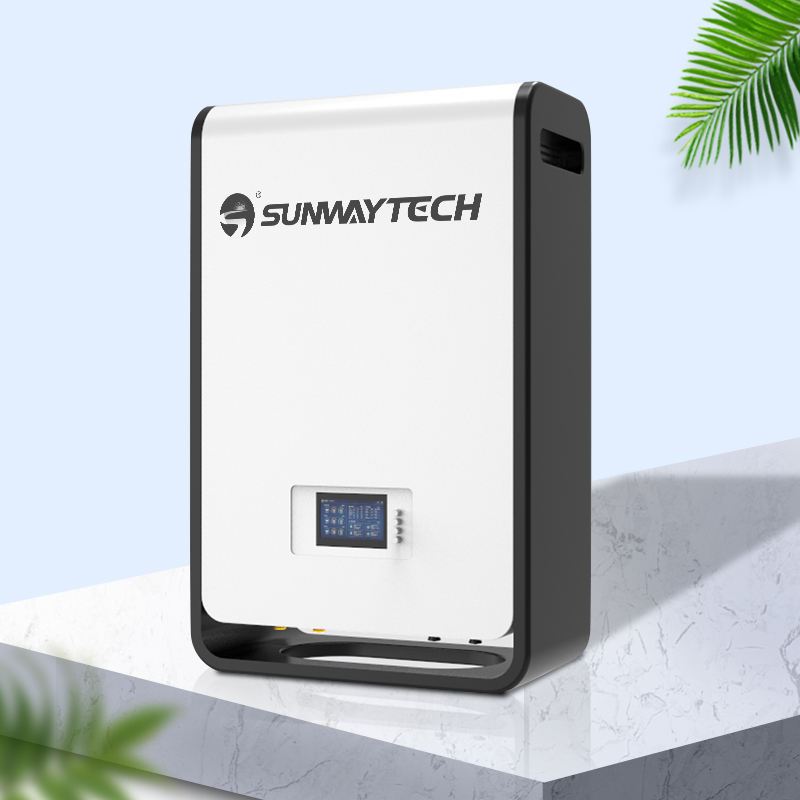

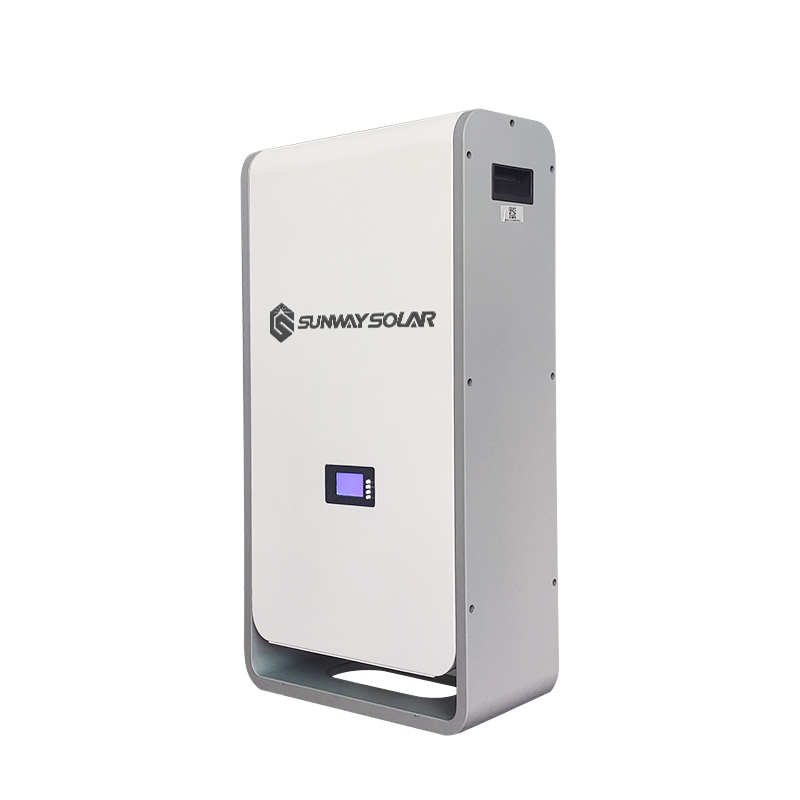

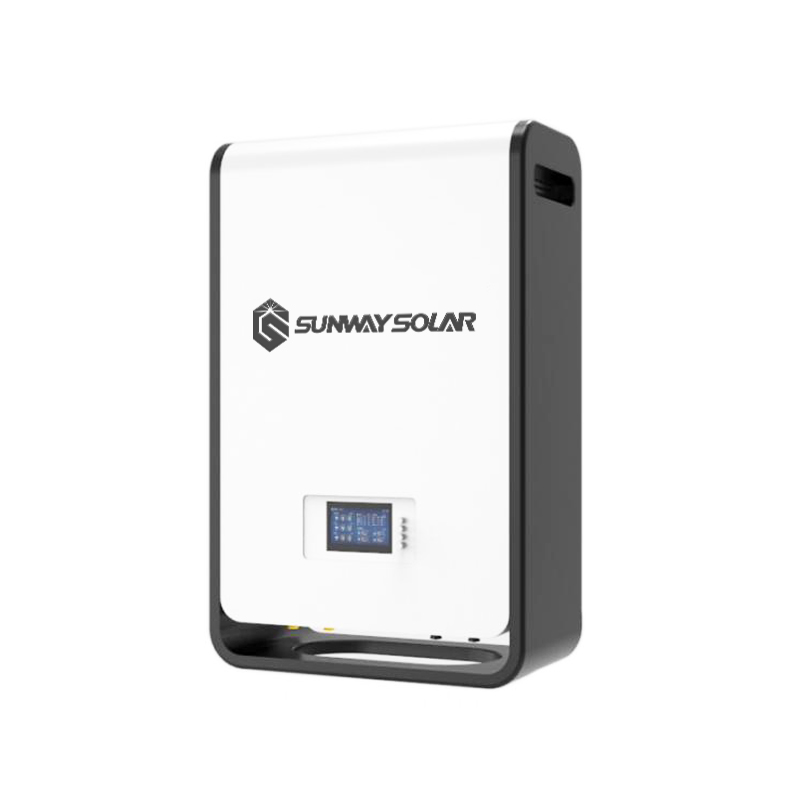

Sunway 51.2V 200Ah 10Kwh Wall-Mounted Lithium Battery

Sunway 51.2V 200Ah 10Kwh Wall-Mounted Lithium Battery

Home Power Wall Mounted Battery Lifepo4 Solar Lithium Battery 51.2V 200Ah 10Kwh

Model Number: SWB48200
Capacity: 10240WH
Battery Rated Voltage: 51.2V
Dimensions(mm): 950*580*250
Weight(kg): 115

Features of Sunway Solar Wall-Mounted Lithium Ion Battery

1> All-time monitor 2> Safety for Home 3> Long Lifespan 10 Years+
4> Flexible capacity 5> Easy Installation 6> Certifications available
Nomal
Model
SWB48100
SWB48200
Battery Type
LiFePO4 (LFP)
Nominal Voltage (V)
51.2V
Nominal Capacity (WH)
5120WH
10240WH
Usable Capacity (WH)
4096WH/80%DOD
8192WH/80%DOD
Design Life
10+ Years (25℃/77℉)
Physical
Dimension(mm)
610*450*200
950*580*250
Weight(kg)
59
115
Electrical

Cycle Life
>6000, 25℃
Discharge Voltage(V)
40-58.4
Charge Voltage(V)
56-58.4
Charge/Discharge Current (A)
50A(Recomemended)
100A(Max)
Internal Resistance
≤30mΩ
BMS
Power Consumption
<2W(Work)<100mW(Sleep)
Monitoring Parameters
System voltage, current, cell voltage, cell temperature, module temperature
SOC
Intelligent algorithm
Communication
CAN/RS-485/RS-232
Warranty
Product Warranty
5 Years
Performance Warranty
10 Years

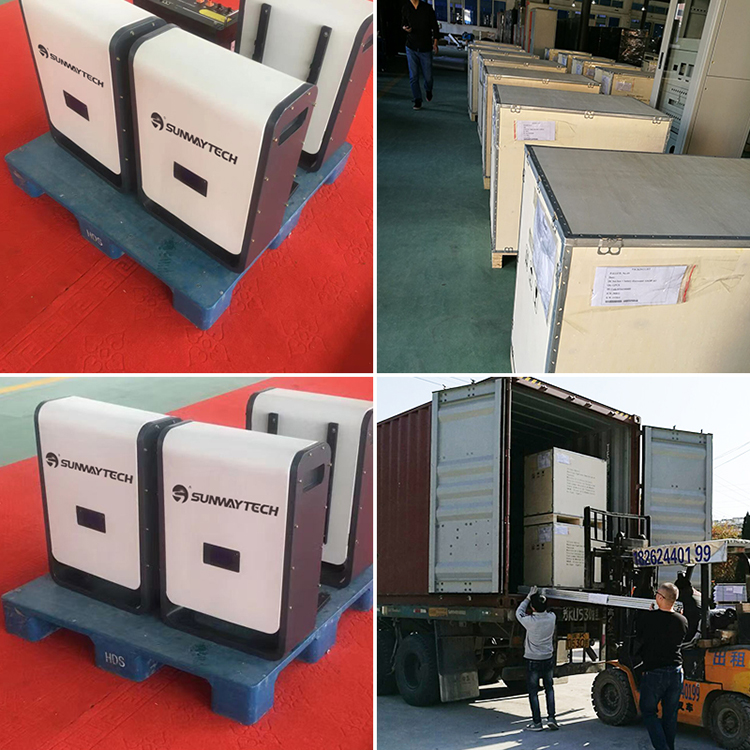

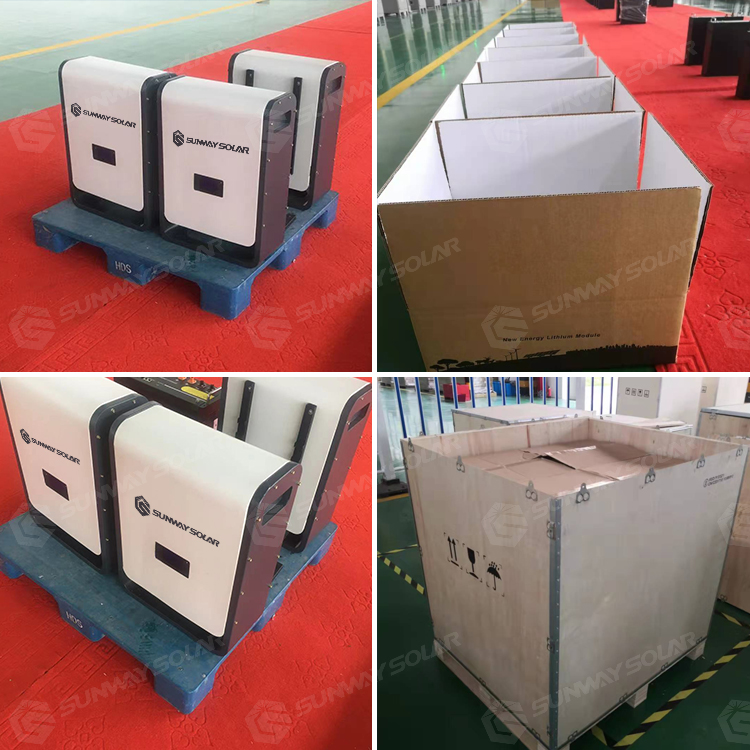

To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:

1) Inner box - Carton - Pallet- Container
2) Packaging also can be made by customers requirements
