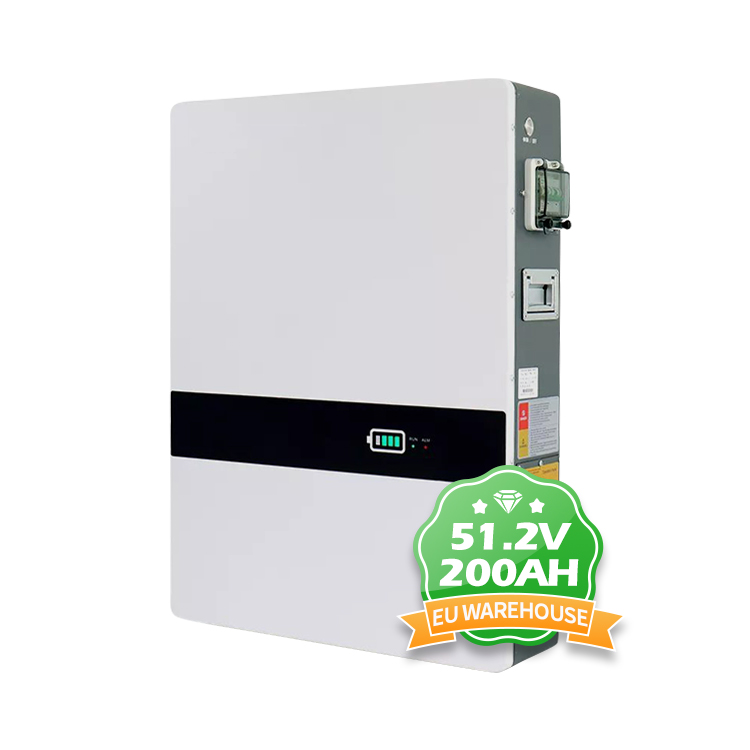

Sunway 51.2V 200Ah 10Kwh European Warehouse Wall Mounted Lithium Battery

Sunway 51.2V 200Ah 10Kwh European Warehouse Wall Mounted Lithium Battery

Model Number: LFPWall 10K
Capacity: 10.24KWH
Battery Rated Voltage: 51.2V
Dimensions(mm): 694*581*219
Weight(kg): 96

Features of Sunway Solar Home Battery Storage Solution

1. Adopting the latest Latest LifePo4 prismatic cell technology
2. Warranted throughout of 10MWh per 1kWh of stored capacity
3. 1C Discharge rate and 0.5C Charge rate
4. 158Wh per Kg+/-5% for cells
5. 2.6kWh 5kWh 10kWh optional
6. 5000 cycles @25℃ 0.7C conditions
7. Plug and Play functionality
8. Multiple BMS functionality allowing greater control and monitor
9. Scalable Battery Packs
10.Wall mounted and Ground type selectable
11.Multiple Energy Capacity options
12.BMS Compatible with Growatt, Goodwe, Deye, SMA, etc.,
13.Wall mounted lithium battery is mainly for home energy stoarge solutions.

Residential Solar & Storage Solution

Hybrid Inverter + Lithium ion Battery
(3.6KW/5KW Hybrid Inverter+5kWh Wall Mounted Lithium Battery)
Mode Capacity
LFPWall 2500
LFPWall 5000
LFPWall 10K
Energy Capacity
2.56kWh
5.12kWh
10.24kWh
Nominal Voltage(V)
51.2V
Operation Voltage(V)
43.2V-58.4V
Ah Capacity
50Ah
100Ah
200Ah
Suggested SOC
10% ~ 100%
Usable Energy
2.3kWh
4.6kWh
9.21kWh
Nominal Voltage
51.2V, 48V optional
Operation Voltage
44.8V ~ 57.6V
Maximum Charge/Discharge Current
35A
70A
100A
BMS
Yes, intelligent monitoring and protection BMS per install
Scalable (Parallel Function)
Yes
Cycle Life
≥ 6000
Warranty BTT
Standard 5 year, 10 years optional 10MWh per kWh BTT
(battery total throughput)
Operation Temperature
Charge 0℃ ~ 45℃ , Discharge -20℃ ~ 45℃
Storage Temperature
-20℃ ~ 45℃
Net Weight
30kg
52kg
96kg
Dimensions
537*365*196mm
542*468*197mm
694*581*219mm
Certifications
MSDS, UN38.3, CE, RoHS
IP Grade
IP65
Communications
RS485, CAN, RS232,
BMS has been compiatble with most of hybrid inverter brands in market
More options
Nominal 48V or 51.2V options
Fire suppression per install
Heating system per install
OEM & ODM support
Note
LFPWall 2500, 2.6kWh (51.2V) 2.4kWh (48V)
LFPWall 5000, 5.12kWh (51.2V) 4.8kWh (48V)
LFPWall 10K, 10.24kWh (51.2V) 9.6kWh (48V)
