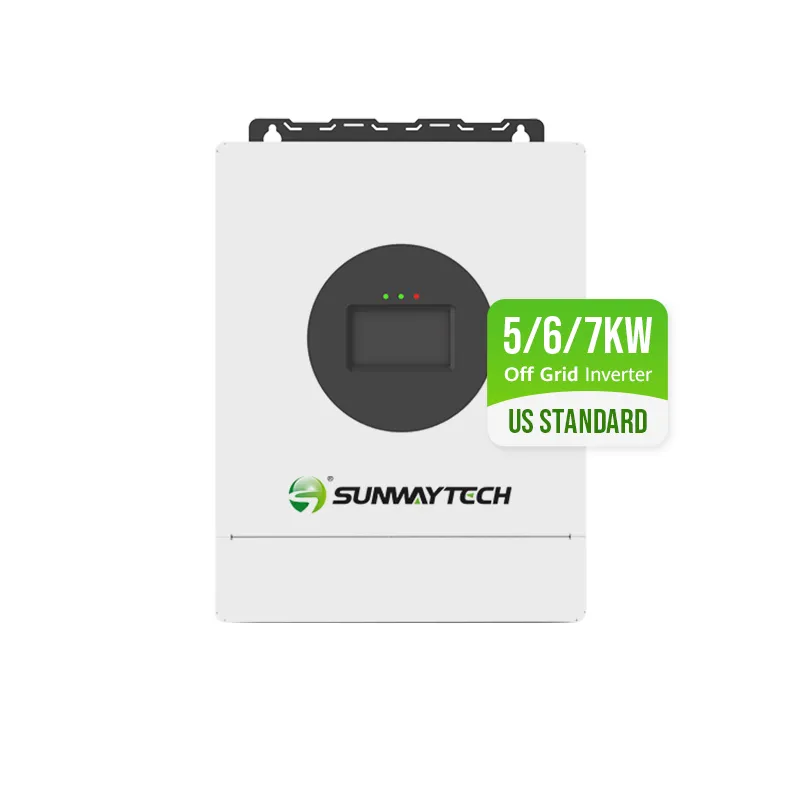

A smart all-in-one solution that links solar, battery, grid, and loads with high efficiency and stable power delivery. Equipped with dual MPPTs, wide battery compatibility, UPS-level backup, and Bluetooth/WiFi monitoring, it offers flexible control, multiple charging modes, and reliable protection—ideal for modern home and commercial energy systems.
| Protecting Level | IP20/IP54 |
| Parallel capacity | 1-6 Unit |
| Efficiency | 99.90% |
| Deep customization | Support |
Designed for modern home, commercial, and industrial energy systems, this hybrid inverter seamlessly integrates solar power, battery storage, the grid, and your loads into one intelligent platform. It delivers stable, safe, and efficient clean energy—adapting effortlessly to different application scenarios.
With dual MPPT tracking, wide battery compatibility, uninterrupted power supply capability, and smart monitoring via Bluetooth/WiFi, it brings high performance and easy control together. A capacitive touch display, multiple charging modes, and comprehensive protection functions ensure a reliable and flexible user experience for everyday energy management.
IP20/1P54,meeting the usage requirements of different scenarios
Supports up to 6 units in parallel, off-grid operation,and multiple batteries in parallel
Dual-channelMPpT, with an efficiency of up to 99.9%
Support deep customization
BMS communication protocol can be opened
| Model | CT-5KC6LSU | CT-6KC6LSU | CT-7KC6LSU |
| Inverter Output | |||
| Rated Output | 5000W | 6000W | 7000W |
| MAX Peak Power | 10000W | 12000W | 14,000W |

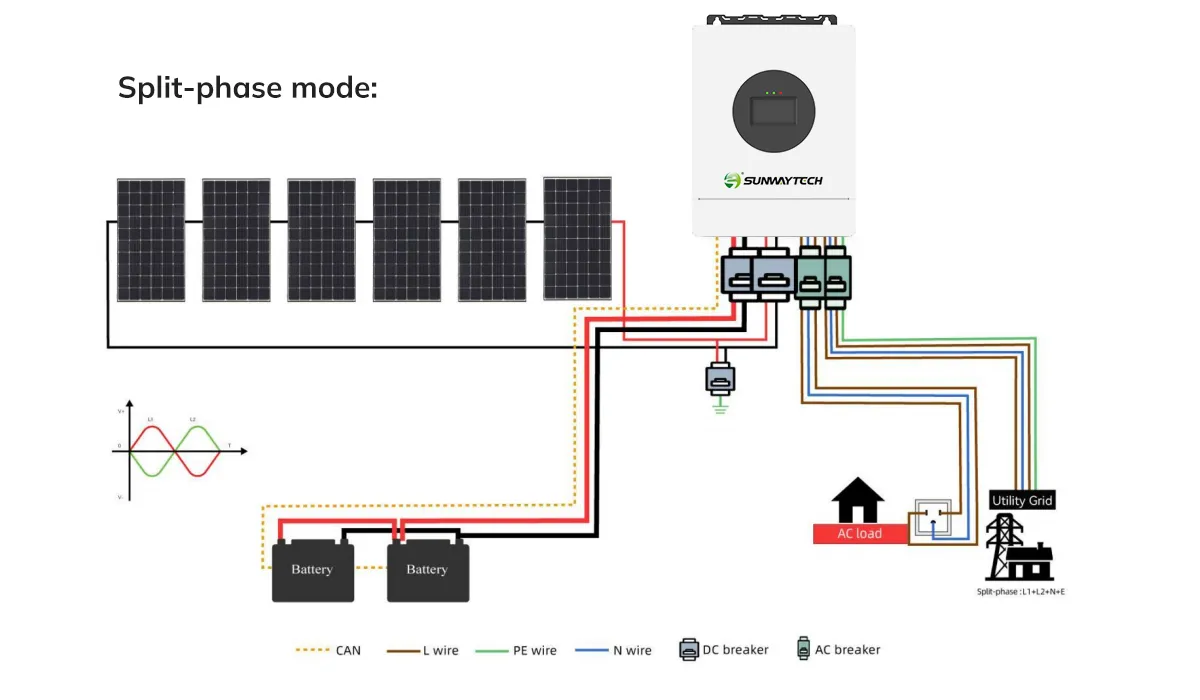

| Rated Output Voltage | 120/240V（Single-phase/split-phase) | ||
| Motor Load Capacity | 4.8HP | ||
| Rated Power | 50/60Hz | ||
| Output Voltage Waveform | Pure sine wave | ||
| Transfer Time | 10ms (typical value) | ||
| Battery | |||
| Battery Type | Lithium-ion battery/ lead-acid battery/User-defined | ||
| Rated Battery Voltage | 48V | ||
| Battery Voltage Range | 40~60V | ||
| Max PV Charging Current | 120A | ||
| Max mains/generator charging current | 100A | ||
| Max mixed charging current | 120A | ||
| PV Input | |||
| The number of MPPT channels | 1 | ||
| Maximum input power | 7500W | 9000W | 10500W |
| Maximum input current | 27A | ||
| Maximum open-circuit voltage | 500V | ||
| MPPT operating voltage range | 125V~425V | ||
| Utility/Generator Input | |||
| Input voltage range | 90V~140V | ||
| Input frequency range | 50/60Hz | ||
| Bypass overload current | 45A | ||
| Efficiency | |||
| MPPT tracking efficiency | 99.90% | ||
| Max efficiency of battery inverter | 93% | ||
| Universal | |||

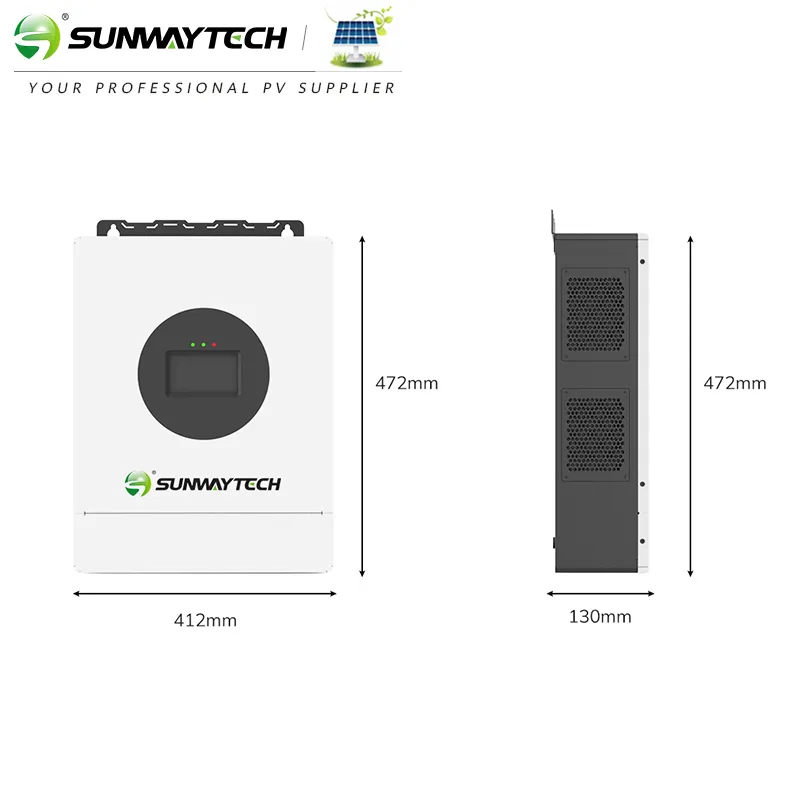

| (mm)Dimensions | 472*412*130mm | ||
| Weight | 16kg | ||
| Protecting Level | IP20/IP54 | ||
| Operating Temperature Range | -10~55C,>45℃ (Derating) | ||
| Noise | ≤45dB | ||
| Heat dissipation | Intelligent air cooling | ||
| Warranty Period | 3 Years | ||
| Communication | |||
| Communication method | RS485/CAN/GPRS/WIFI/Bluetooth/4G(Optional) | ||
| Certification | |||
| Overview | UL1741/FCC | ||
