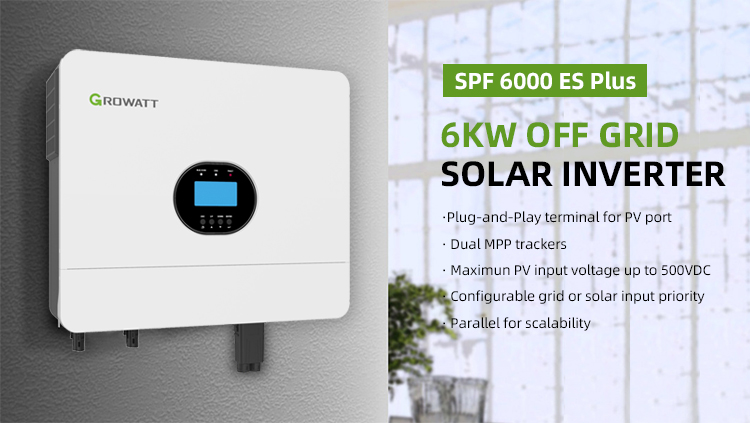

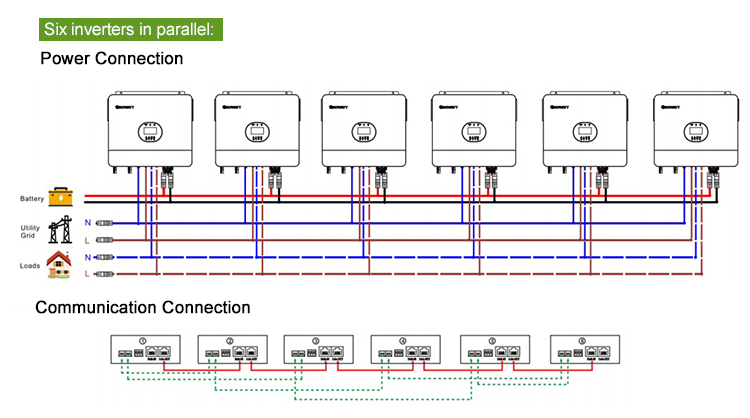

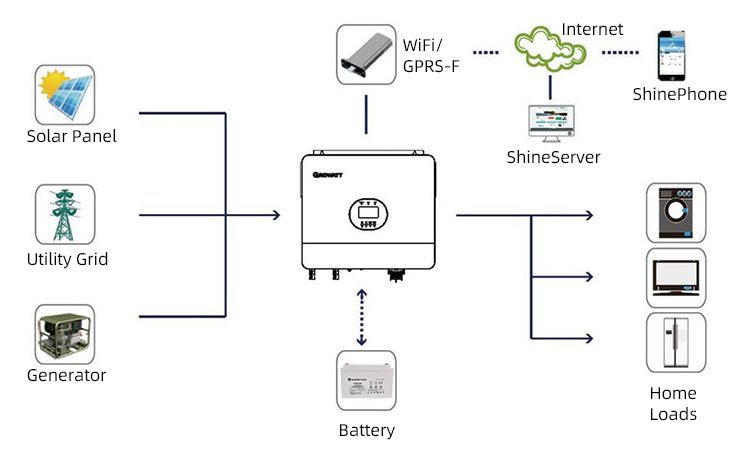

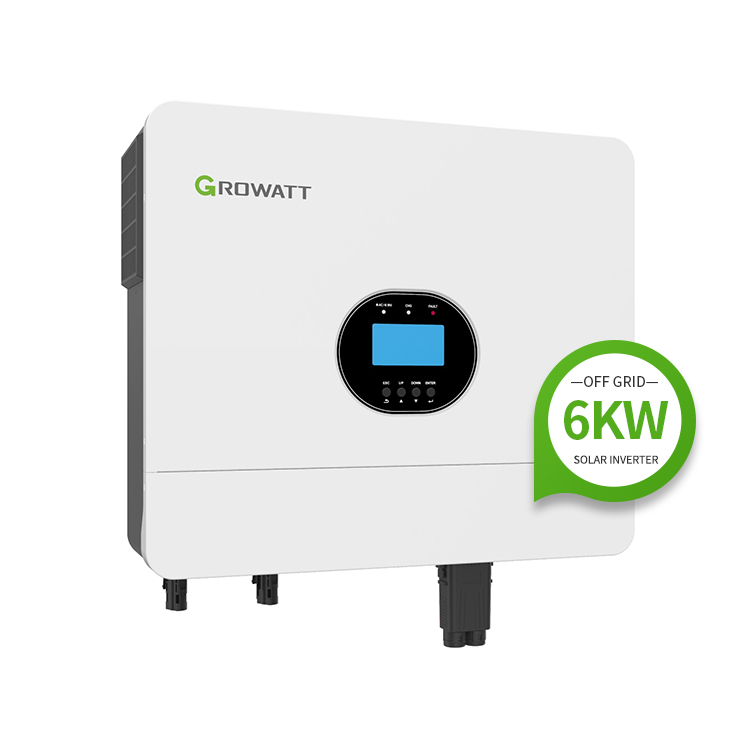

Growatt SPF 6000es plus is a multifunctional off grid solar inverter, integrated with an MPPT solar charge controller, a high frequency pure sine wave inverter, and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.This inverter can work with or without batteries. Parallel operation up to 6 units (only with the battery connected)
|
Datasheet
|
SPF 6000 ES Plus
|
|
Battery Voltage
|
48VDC
|
|
Battery Type
|
Lithium/Lead-acid
|
|
Inverter Output
|
|
|
Rated Power
|
6000VA/6000W
|
|
Parallel Capability
|
Yes, 6 units maximum
|
|
AC Voltage Regulation(Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|
Surge Power
|
12000VA
|
|
Efficiency (Peak)
|
93%
|
|
Waveform
|
Pure sine wave
|
|
Transfer Time
|
10ms typical，20ms Max
|
|
Solar Charger
|
|
|
Maximum PV Array Power
|
8000W
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 450VDC
|
|
Number of Independent MPP Trackers/Strings Per MPP Tracker
|
2/1
|
|
Max. input current per MPP tracker
|
16A
|
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
|
Maximum Solar Charge Current
|
100A
|
|
AC Charger
|
|
|
Charge Current
|
80A
|
|
AC Input Voltage
|
230VAC
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
Cooling
|
Physical
|
|
Protection Degree
|
IP20
|
|
Dimension (W/H/D)
|
460/395/132mm
|
|
Net Weight (kgs)
|
13.5
|
|
Operating Environment
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
Altitude
|
<2000m
|
|
Operating Temperature
|
0°C - 55°C
|
|
Storage Temperature
|
-15°C - 60°C
|
