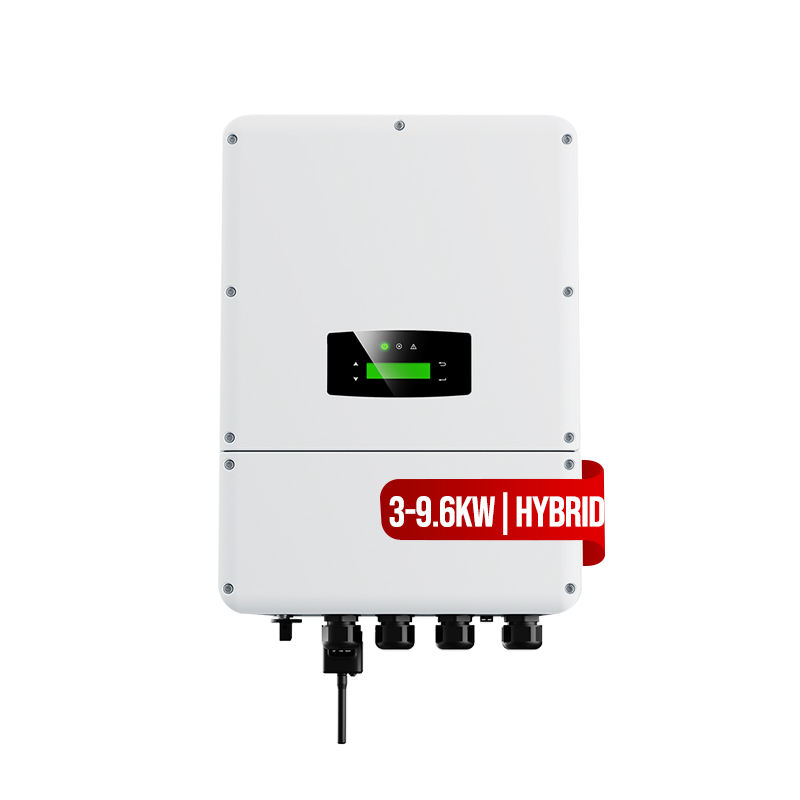

Sunway 3kw 6kw 10kw 230v Split Phase Hybrid Solar Inverter

Sunway 3kw 6kw 10kw 230v Split Phase Hybrid Solar Inverter

Category Hybrid Solar Inverter

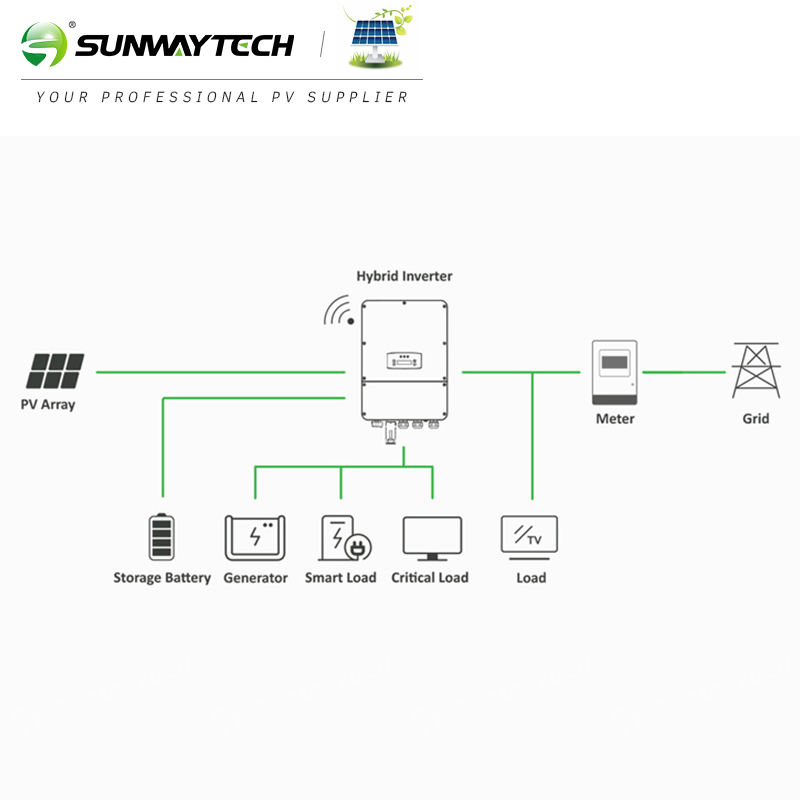

Hybrid solar inverter have function of both on grid inverter and off grid inverter supply Intelligent energy management system for home

Model Number:	AF5K-DH
Output power：	3-10kw
Output Voltage:	220V
Size:	560400229 mm
Weight:	25KG

The AF low voltage Series storage Inverters are designed to increase energy independence for homeowners. The power range is from 1kW to 6kW, compatible with low voltage (40-60V) batteries.

Energy management is based on time-of-use and demand charge rate structures, significantly reduce the amount of energy purchased from the public grid.

Thanks for the UPS function (switch time < 10ms), enables the crucial loads power on during outages. Additionally, under the backup operation mode, the inverter provides you up to 150% peak output overloading.

The AF low voltage Series storage inverters integrated with Arc Fault Circuit Interrupter (AFCI) and Rapid Shutdown.

PV Input	AF3K-DH	AF3.6K-DH	AF4K-DH	AF4.6K-DH	AF5K-DH	AF5.5K-DH
Max. Input Power(kW)	4.5	5.4	6.0	6.9	7.5	8.3
Max. PV Votage (V)	600
MPPT Range (V)	80-550
Normal Voltage (V)	360
Startup Voltage (V)	100
Dimensions(HxWxD)	560× 400× 229 mm / 22.0x 15.7×9.0 in
Weight	25 kgs/55 lbs
Topology	Tranformerless
Cooling	Natural Convection
Relatively Humidity	0-100%
Operating Temperature Range	-25 to 60℃ /-77 to 140F
Operating Altitude	<4000 m/< 13123 ft
Noise Emission (dB)	<25
Standby Consumption (W)	<10
Mounting	Wall Bracket
Communication with RSD	SUNSPEC
Display & Communication Intertaces	LCD, LED, RS485, CAN, Wi-Fi, 4G

PV Input	AF6K-DH	AF7K-DH	AF7.6K-DH	AF8K-DH	AF8.6K-DH	AF9.6K-DH
Max. Input Power (kw)	9.0	10.5	11.4	12.0	12.9	15.0
Max. PV Voltage (V)	600
MPPT Range(V)	80-550
Normal Voltage (V)	360
Startup Voltage (V)	100
Dimensions(H xWx D)	560×400× 229 mm/22.0x15.7x9.0 in
Weight	25 kgs/55 lbs
Topology	Tranformerless
Cooling	Intelligent Fan
Relatively Humidity	0-100% -25 to 60℃ /-77 to 140F
Operating Temperature Range Operating Altitude	<4000 m/< 13123 ft
Noise Emission (dB) <25	<40
Standby Consumption (W)	<10
Mounting	Wall Bracket
Communication with RSD	SUNSPEC
Display & Communication Interfaces Certifcation & Approvals	LCD, LED, RS485,CAN,Wi-Fi, 4G

Get A Quote

Model Number:AF15K-TH	AF15K-TH
Output power：	3-30kw
Output Voltage:	230/400
Size:	558 x 535 x 260 mm
Weight:	29kg
