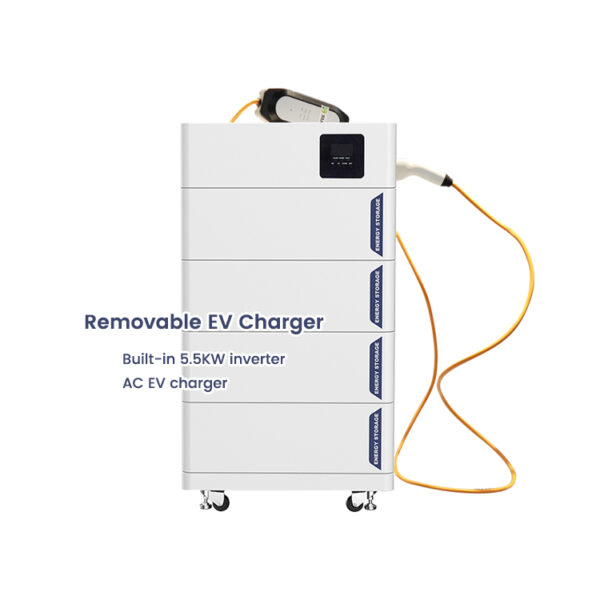

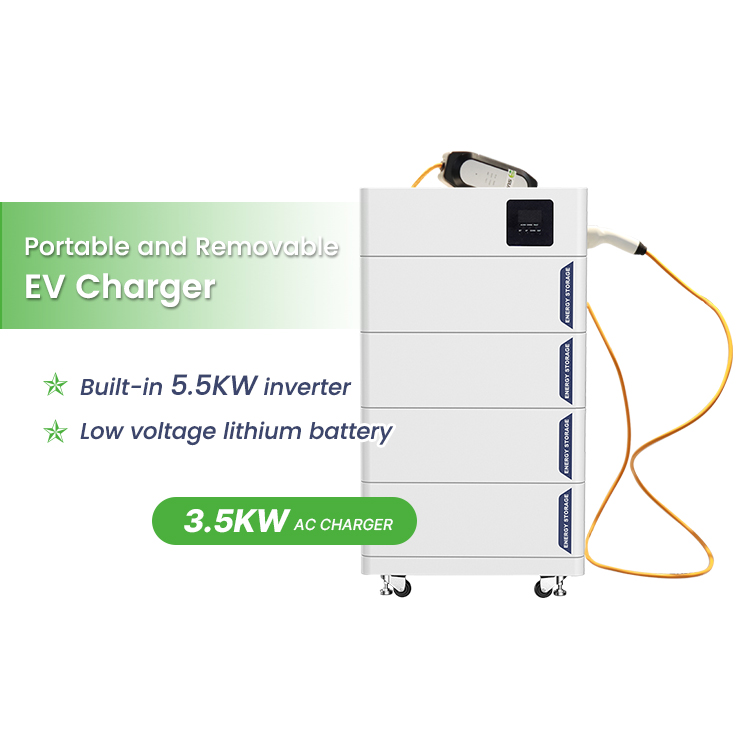

Sunway 3.5kw portable ac ev charger

Category EV Charger System Tags ev charger, Lithium Battery

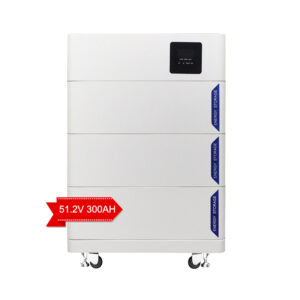

LOW VOLTAGE STACKED LITHIUM BATTERY

*The power module adopts a new topological circuit design *High control accuracy, small volume

*The mains charging module adopts
advanced control algorithm to realize full digital double closed-loop control of voltage and current

*AC voltage input range is
wide, the input and output protection function is complete, can achieve stable and reliable battery charging and protection
*Suitable for household appliances, power tools and other AC loads

*The inverter module is based on full digital intelligent design,
adopts advanced SPWM technology

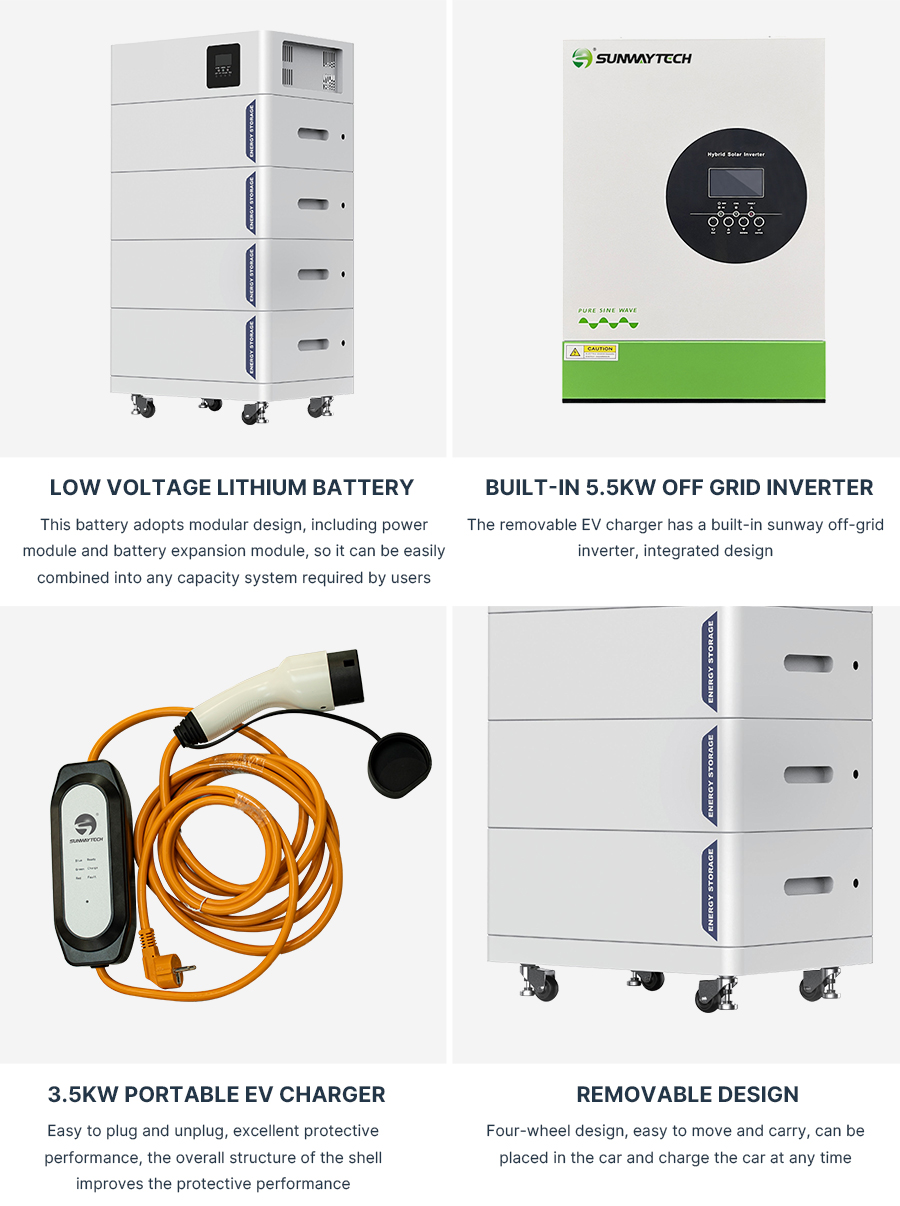

3.5KW PORTABLE AC EV CHARGER

*Beautiful appearance, handheld design conforms to ergonomic principles

*Easy to plug and unplug, excellent protective performance,
the overall structure of the shell improves the protective performance

*The shell is made of thermoplastic plastic with high flame
retardant rating

*No-load plugging and unplugging times reach more than 10,000 times

LOW VOLTAGE STACKED LITHIUM BATTERY

Models	SW51100
Single Module Capacity	5.12kwh

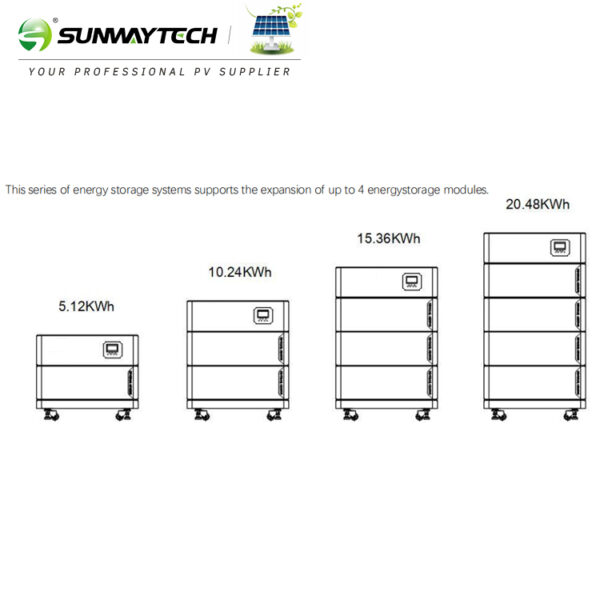

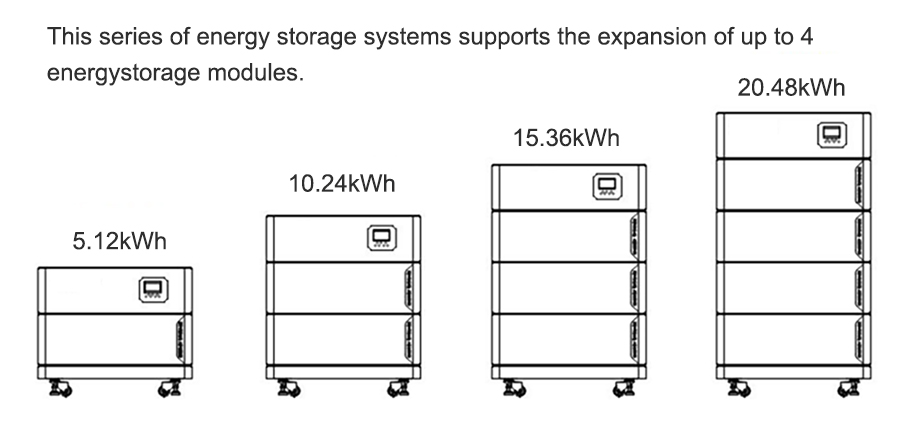

Module Number	1	2	3	4
Rated Capacity	5.12kwh	10.24kwh	15.36kwh	20.48kwh
Nominal Voltage	51.2V
Working Voltage	44V-58.4V
Nominal Discharging Current	100A	200A	300A	400A
Nominal Charging Current	50A	100A	150A	200A
Recommended Discharge Level	80
Humidity	20%-60%
Installation Method	Stacked mode
Protection Level	IP20
Communication Protocol	CAN/RS485/RS232（WIFI Optional)
Dimension/module	600440200mm
Net Weight/module	40kg
Battery Pack Parameters
Cell Type	LFP
Battery Rated Input Voltage	51.2VDC
Hybrid Charging Maximum Charging Current	80A
Battery Pack Voltage Range	40VDC-60VDC
Photovoltaic Input Parameters
Maximum PV Open Circuit Voltage	500VDC
PV Working Voltage Range	120V-500VDC
MPPT Voltage Range	120V-450VDC
Maximum PV Input Current	16A
Maximum PV Input Power	5500W
Maximum PV Charging Current	100A
AC parameters（Grid-connected side)
Maximum Charging Current	60A
Rated Input Voltage	220V/230VAC
Input Voltage Range	170VAC-280VAC
Frequency	50Hz/60Hz
Charging Efficiency	>95%
Switching Time	10ms
Maximum Bypass Overload Current	40A
AC output parameters（Grid-connected side)
Output Voltage Waveform	Pure sine wave
Rated Output Voltage	230VAC±5%
Rated Output Power	5000W
Peak Power	10000VA

5.5KW OFF GRID SOLAR INVERTER

MODEL	SK-5500P-48L
Single Module Capacity	5500W
Battery Type	Lead Acid/LiFePO4
Parallel Capability	Yes
INPUT
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC(For personal computer),90-280VAC(For home appliances)
Frequency	50Hz/60Hz(Auto sensing)
OUTPUT
Nominal Voltage	220/230VAC±5%
Surge Power	11000VA
Frequency	50Hz/60Hz
Wave Form	Pure sine wave
Transfer Time	10ms(For personal computer),20ms(For home appliances)
Peak Efficiency(PV to INV)	96%
Peak Efficiency(Battery to INV)	93%
Overload Protection	5s@≥150% load；10@110%~150% load
Crest Factor	3:1
Admissiable Power Factor	5s@≥150% load；10@110%~150% load
SOLAR CHARGE & AC CHARGE
Solar Charge Type	MPPT
Maximum PV Array Power	5500W
Maximum PV Array Open Circuit Vol.	500VDC
PV Array of MPPT Voltage Range	60VDC~500VDC
Maximum Solar Input Current	18A
Maximum Solar Charge Current	100A
Maximum AC Charge Current	80A
Maximum Charge Current	100A
PHYSICAL
Product Dimension(DWH mm)	448295129mm
Net Weight(kgs)	10KG
Communication Interface	RS485/RS232/Dry-contact
ENVIRONMENT
Operation Temperature Range	-10°C~55°C
Storage Temperature	-15°C~50°C
Humidity	5% to 95% Relative Humidity(Non-condensing)

PERFORMANCE PARAMETER

Models	SWEVAC3.5K
Power	3.5KW
Rated Input Voltage	AC220V±15%
Rated Output Voltage	AC220V±15%
Rated Output Current	8~16A
Protection Level	IP55
Working Temperature	-30°C~+55°C
