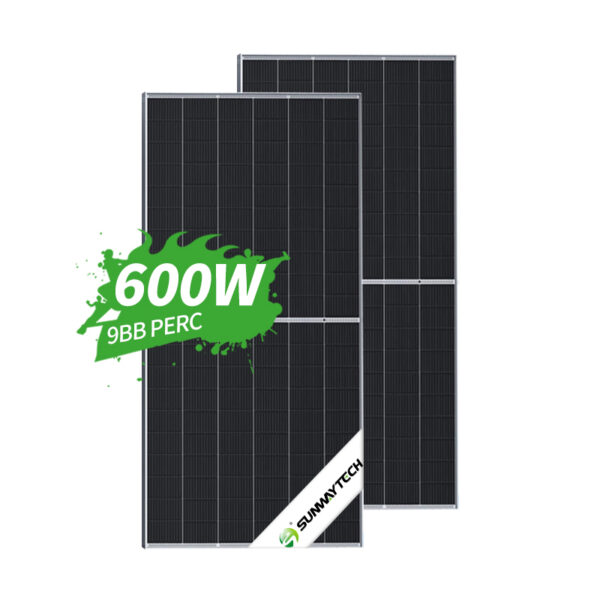

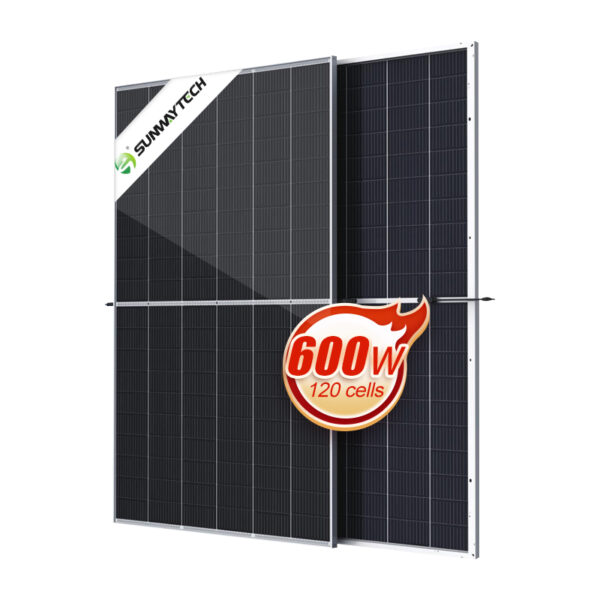

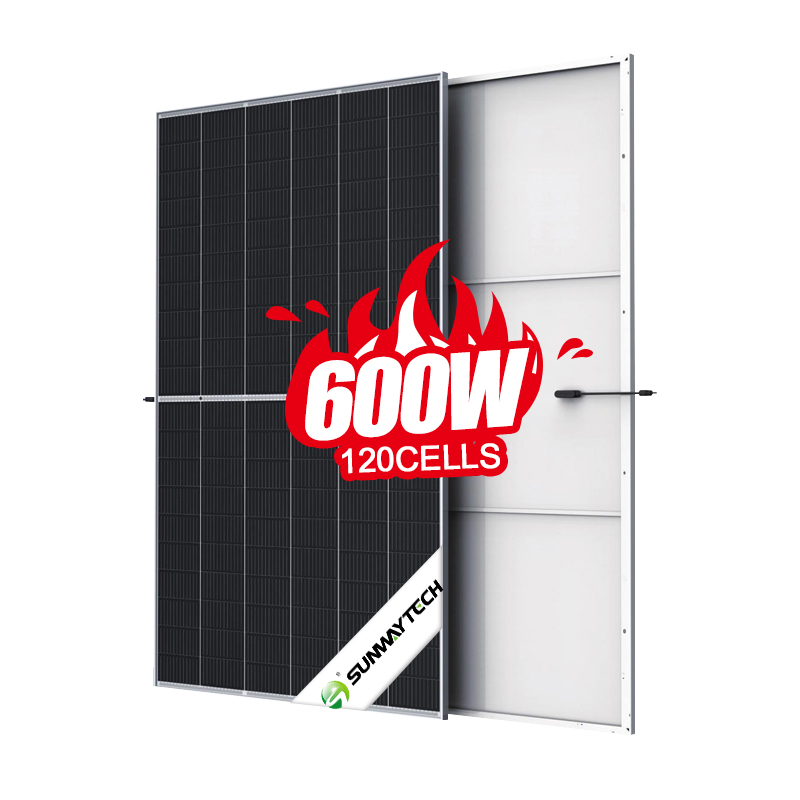

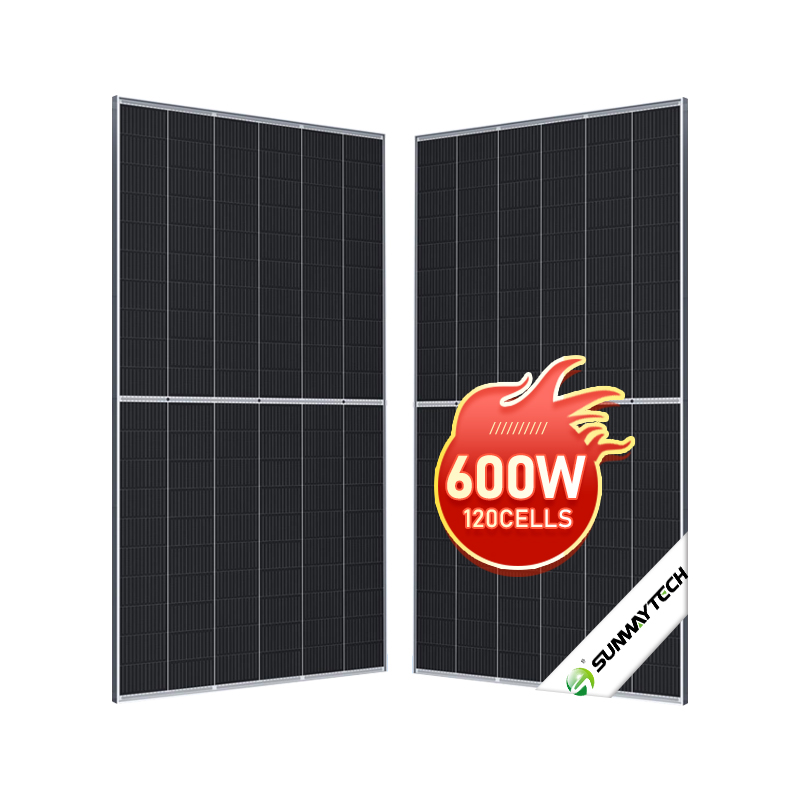

Sunway 120cells 210mm 580w 605w Monocrystalline Half Cell Solar Panel

ELECTRICAL DATA (STC)580-605W

Peak Power Watts-PMAX (Wp)

580

585

590

595

605

Maximum Power Voltage-VMPP (V)

33.8

34.0

34.2

34.4

34.6

Maximum Power Current-IMPP (A)

17.16

17.21

17.25

17.30

17.34

Open Circuit Voltage-VOC (V)

40.9

41.1

41.3

41.5

41.7

Short Circuit Current-ISC (A)

18.21

18.26

18.31

18.36

18.42

Module Eciency η m (%)

20.5

20.7

20.8

21.0

21.2

Power Tolerance-PMAX (W)

0 ~ +5

NOCT(Nominal Operating Cell Temperature)

43°C (±2°C)

Temperature Coecient of VOC

- 0.25%/°C

Temperature Coecient of ISC

0.04%/°C

STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5-Measuring tolerance: ±3%
