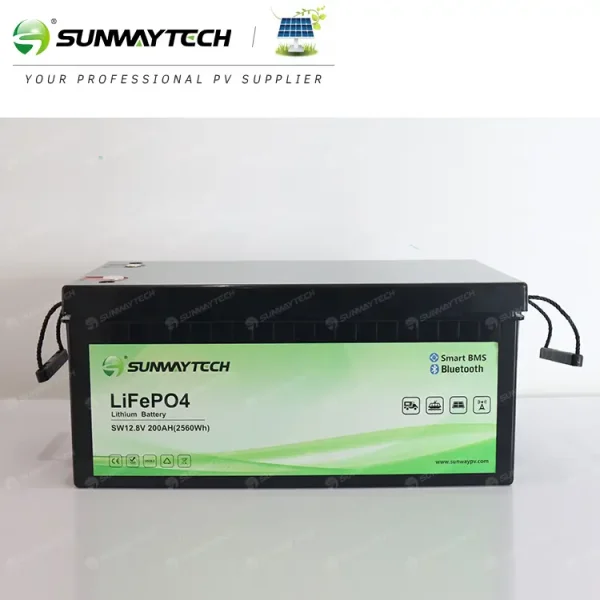

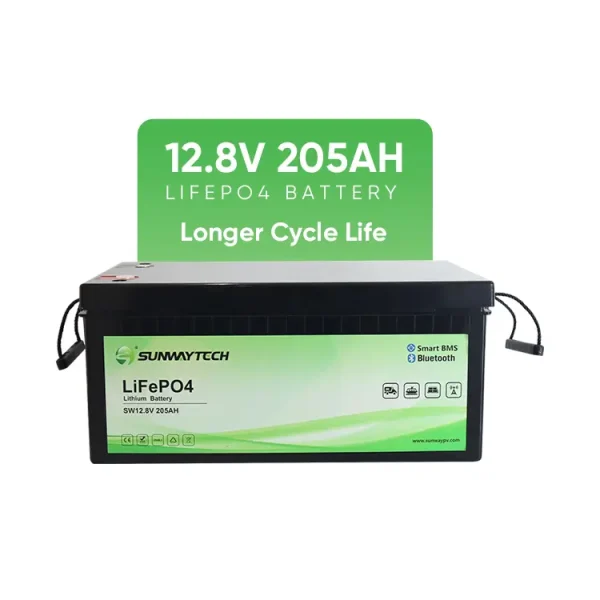

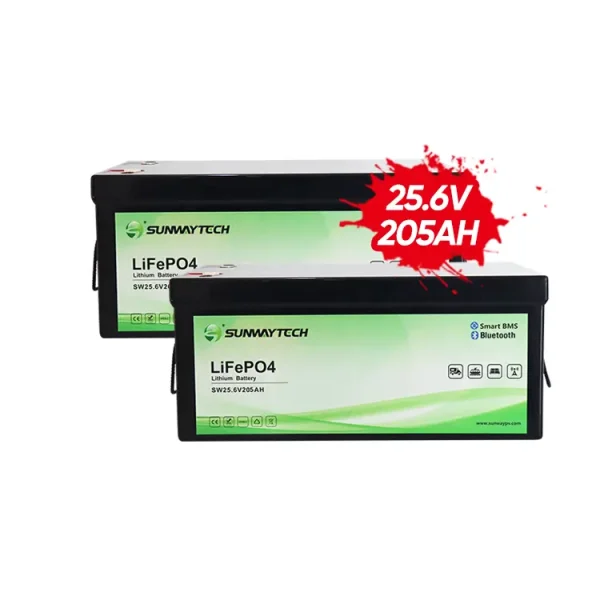

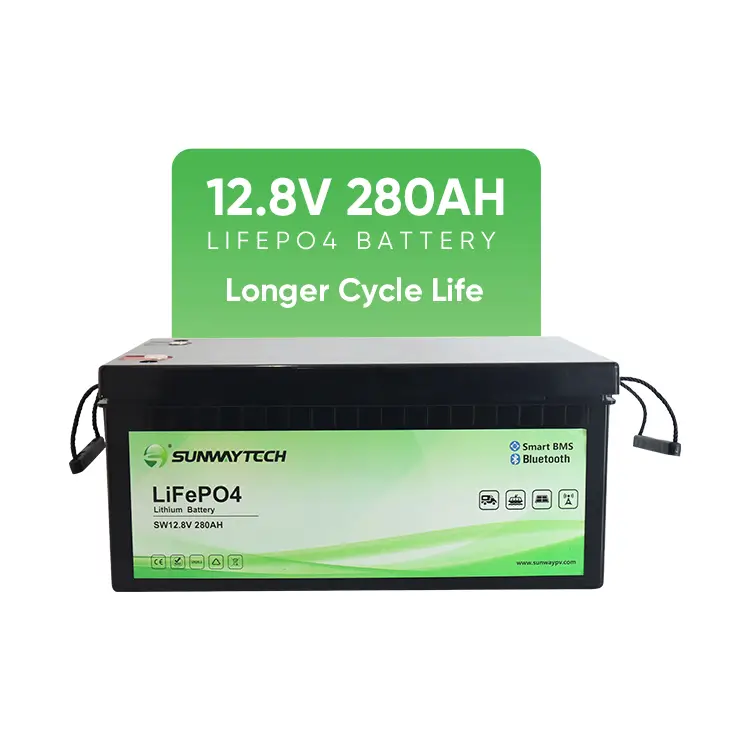

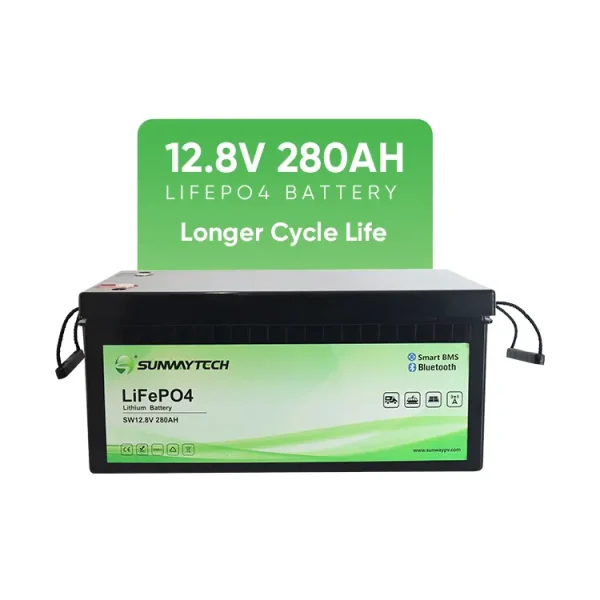

SUNWAY 12.8/25.6V 205/280AH LifePoe4 Storage Battery

●Longer Cycle Life

●Efficient Energy Storage

●Fast Charging & Discharging

●Safe & Durable

· Over 5000 cycles (0.5C, 25°C).

· Maintenance-free design, more economical throughout its lifecycle.

· Reduced replacement frequency, lowering resource consumption.

· Easy to install and move, saving storage space.

· High energy reserve, supports multiple devices.

· Versatile applications: from home backup to electric vehicles.

· Quick charging for improved usage efficiency.

· 200A high-current output, suitable for UPS or industrial equipment.

· High-frequency adaptability, maintaining stable power supply.

· Strong adaptability to all environments, meeting various needs.

· Eco-friendly design, minimizing environmental impact.

Model	X12-205-075P1CV1	X12-280-075PICV1	X24-205-075P1CV1
Cell Type	LFP	LFP	LFP
Rated Capacity	205Ah	280Ah	205Ah
Nominal Voltage	3.2V	3.2V	3.2V
Battery Configuration	1P4S	1P4S	1P8S
Total ProductWeight	≤19.8±0.5kg	≤25.5±0.5kg	≤36.6±0.5kg
Operating Voltage Range	10V~14.6V	10V~14.6V	20V~29.2V
Operating Temperature Range	Charge:0°C~+55°℃ Discharge:-20°C~+55°℃	Charge:0°C~+55°℃ Discharge:-20°C~+55°℃	Charge:0°C~+55°℃ Discharge:-20°C~+55°℃
Nominal Voltage	12.8V	12.8V	25.6V
NominalCapacity	205Ah	280Ah	205Ah
Max.Charging Current	150A	150A	150A
Max.Discharging Current	200A	200A	200A
Cycle Life	≥5000	≥5000	≥5000
Dimensions(mm)(LWH)	384194274	384194274	523269225
