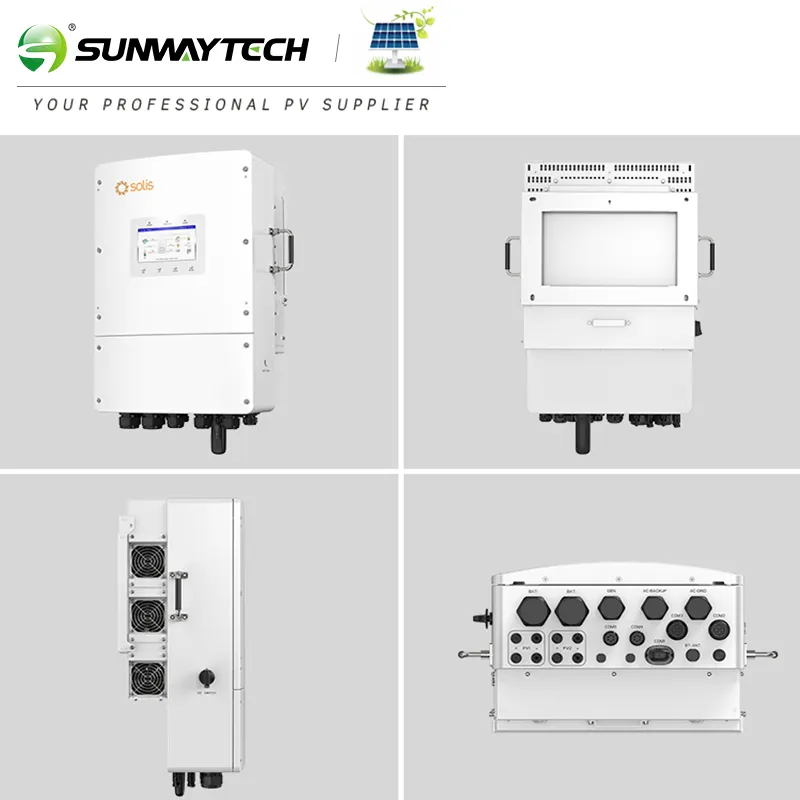

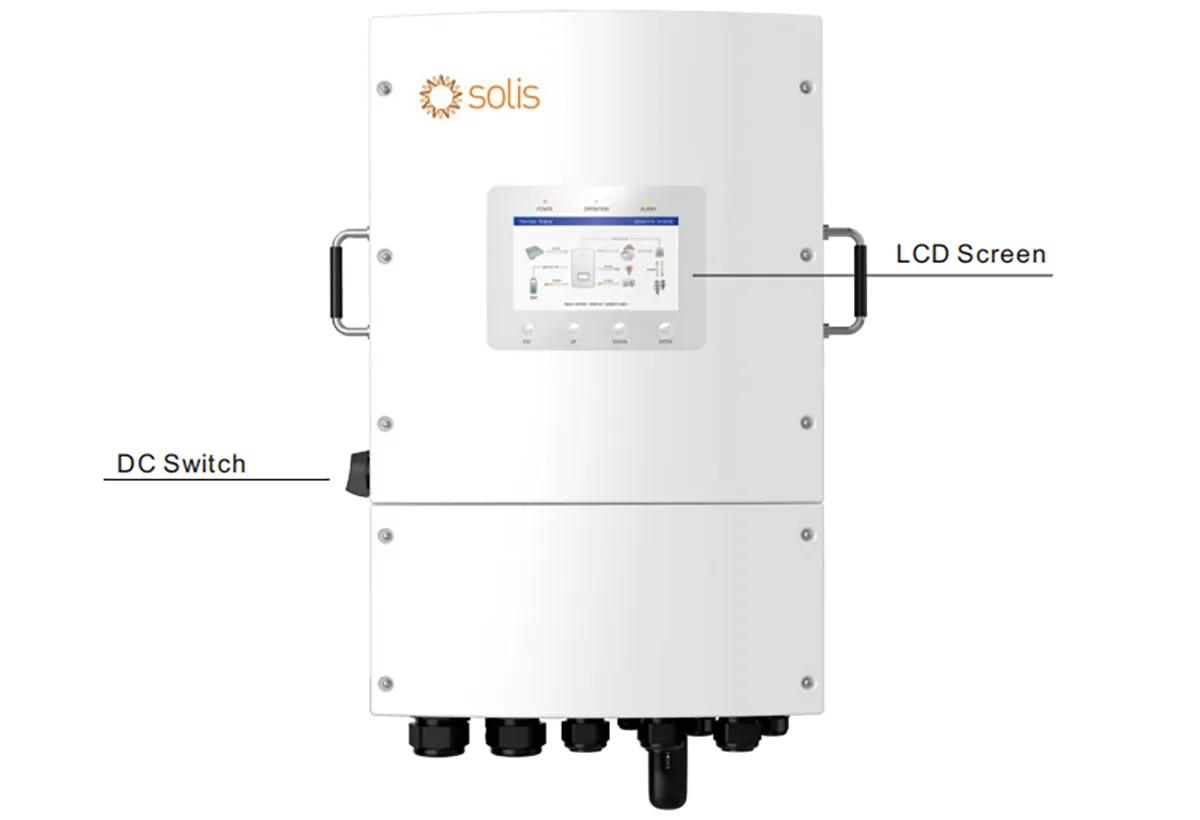

Solis Three Phase 8-15KW Low Voltage Energy Storage Inverter S6-EH3P(8-15)K02-NV-YD-L

Solis Three Phase 8-15KW Low Voltage Energy Storage Inverter S6-EH3P(8-15)K02-NV-YD-L

Model Number: S6-EH3P(29.9-50)K-H
Brand Name Solis
Output Voltage:
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Size(mm):
530* 880* 290 mm
Weight(KG):
73

S6-EH3P(8-15)K02-NV-YD-L series three-phase hybrid inverter is suitable for large residential PV energy storage systems with low battery voltage (48V). The products are compatible with high power PV panels, and suitable for a variety of brands' lithium and lead-acid batteries. In addition, the product has a wealth of features, including compatible generators, UPS level switching,grid-tied PV system coupling networking, supporting three-phase unbalanced load and half-wave load, etc. Helps households easily achieve zero carbon energy needs.

Models
8K
 10K
12K
15K
 Input DC (PV side)
 Max. usable PV input power
 12.8 kW
 16 kW
 19.2 kW
 24 kW
 Max. input voltage
 1000 V
Rated voltage
 550 V
 Start-up voltage
 160 V
MPPT voltage range
 200 - 850 V
Max. input current
20 A / 40 A
 40 A / 40 A
 Max. short circuit current
 30 A / 50 A
 50 A / 50 A
MPPT number / Max. input strings number
 2 / 3
 2 / 4
 Battery
 Battery type
 Li-ion / Lead-acid
 Battery voltage range
 40 - 60 V
Max. charge / discharge current
 180 A
 220 A
 250 A
 290 A
 Communication
CAN / RS485
 Output AC (Grid side)
Rated output power
 8 kW
 10 kW
 12 kW
 15 kW
Max. apparent output power
 8 kVA
 10 kVA
 12 kVA
 15 kVA
Operation phase
 3/N/PE
 Rated grid voltage
 380 V / 400 V
Rated grid frequency
50 Hz / 60 Hz
Rated grid output current
 12.2 A / 11.5 A
 15.2 A / 14.4 A
 18.2 A / 17.3 A
 22.8 A / 21.7 A
Max. output current
 12.2 A / 11.5 A
 15.2 A / 14.4 A
 18.2 A / 17.3 A
 22.8 A / 21.7 A
 Power factor
 > 0.99 (0.8 leading - 0.8 lagging)
 THDi
 < 3%
 Input AC (Grid side)
 Input voltage range
 323 - 460 V
 Max. input current
 18.3 A / 17.3 A
 22.8 A / 21.7 A
 27.3 A / 26.0 A
 34.2 A / 32.5 A
 Frequency range
 45 - 55 Hz / 55 - 65 Hz
 Input Generator
Max. input power
8 kW
 10 kW
 12 kW
 15 kW
Max. input current
 12.2 A
 15.2 A
 18.2 A
 22.8 A
Rated input voltage
 3/N/PE, 380 V / 400 V
 Rated input frequency
 50 Hz / 60 Hz
Output AC (Back-up)
 Rated output power
 8 kW
 10 kW
 12 kW
 15 kW
 Max. apparent output power
 2 times of rated power, 10 s
 Back-up switch time
 < 10 ms
 Rated output voltage
3/N/PE, 380 V / 400 V
 Rated frequency
 50 Hz / 60 Hz
 Rated output current
 12.2 A / 11.5 A
 15.2 A / 14.4 A
18.2 A / 17.3 A
 22.8 A / 21.7 A
Max. continuous output current
 12.2 A
 15.2 A
18.2 A
22.8 A
Max. continuous AC passthrough current
 50 A
 THDv (@linear load)
 < 3%
 Efficiency
 Max. efficiency
97.6%
 EU efficiency
97.0%

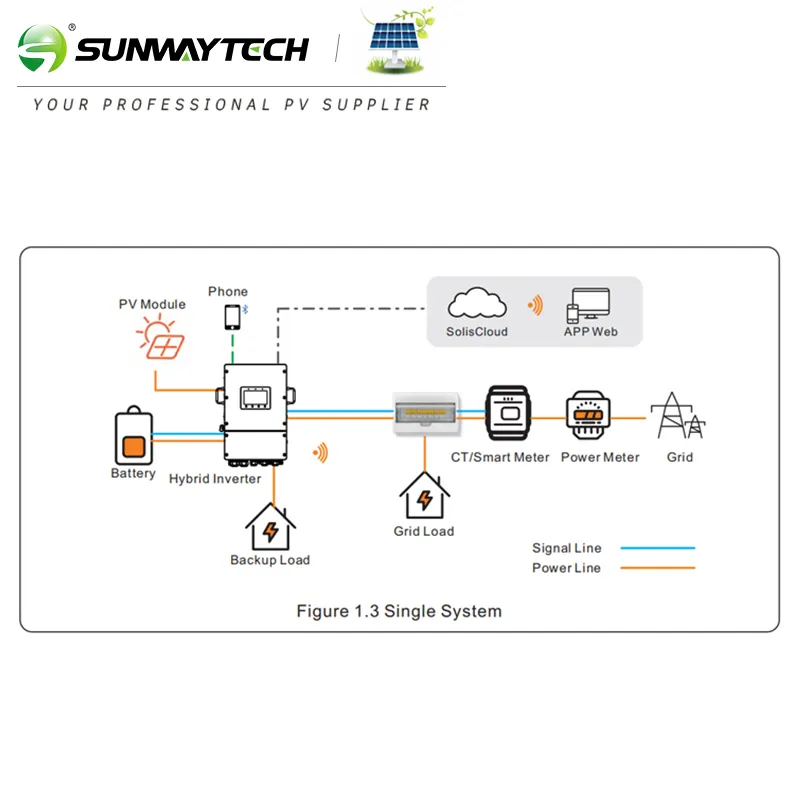

The single system consists of PV module, battery, hybrid inverter, CT or smart meter.

The PV Module converts solar energy into electric energy, which is then converted by the inverter to charge the battery or power loads or feed into the grid.

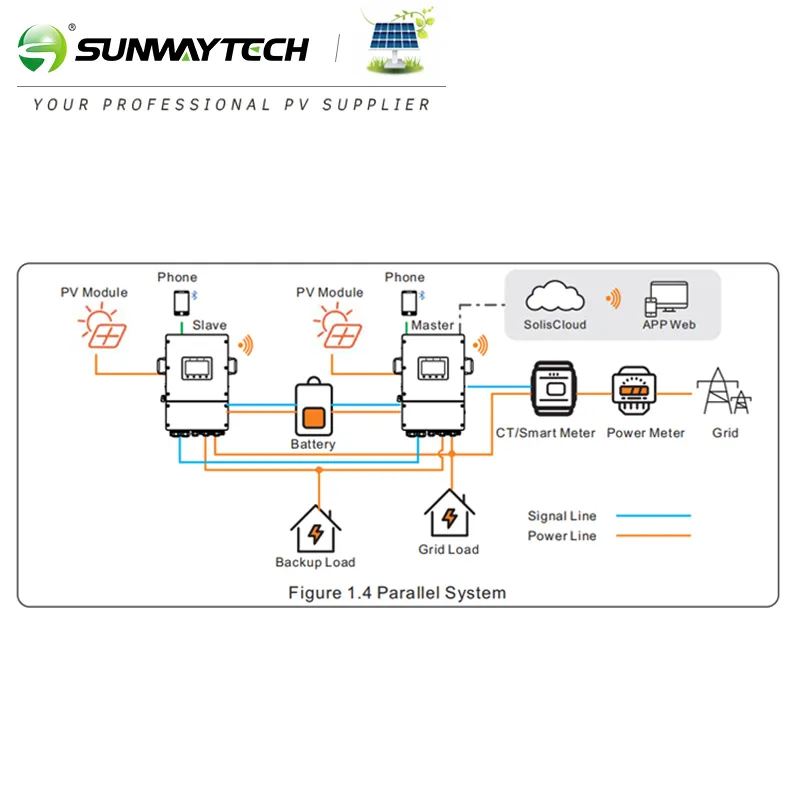

User can connect heat pump, existing PV plant, generator and ATS according to the actual scenario.
The system has three working modes: self-use mode, feed in priority mode and off-grid mode.
