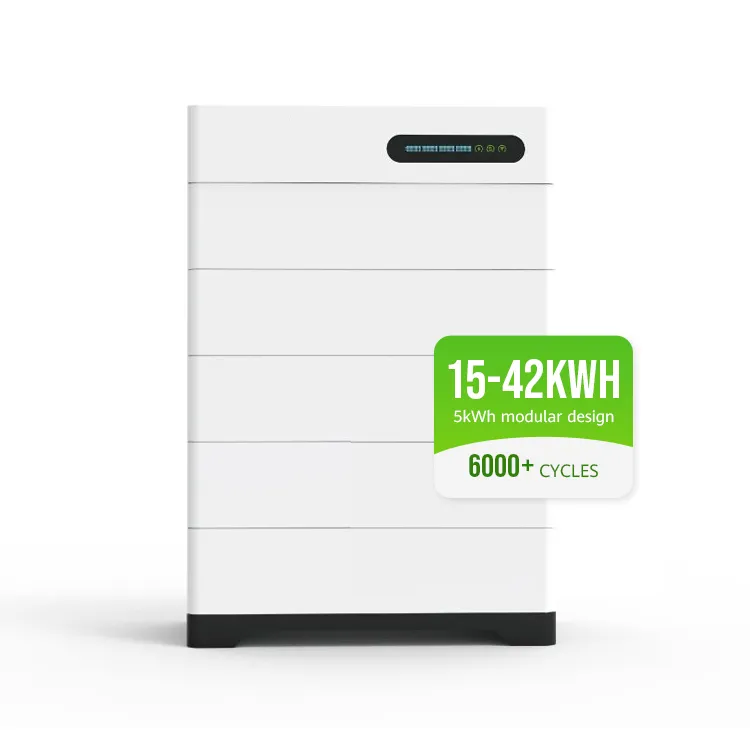

GH02-5324 High Voltage Stackable Energy Storage Battery
The GH02-5324 is a high-voltage, stackable LiFePO₄ system offering 15kWh–42kWh capacity with 5kWh modular units. Lightweight (52kg) and cable-free in design, it ensures quick installation and easy expansion.
Equipped with advanced BMS, fuse, and aerosol fire protection, it operates safely across -20°C to +55°C with IP65 protection. Delivering 90% DOD, over 6000 cycles, and a lifespan of 15+ years, the GH02-5324 provides reliable, long-term performance.
With CAN/RS485 communication, it integrates seamlessly with mainstream inverters for smart and flexible energy storage.
| Model Number: | GH02-5324 |
| Cell Type | LiFePO₄ |
Cycle Life | ≥6000 |
| Communication | RS485 / CAN |
| Operation Temperature | 0–50°C |
Product Advantages
• Smart 0&M:
Check the APP to find data on yourphone.Remote diagnosis and OTA.
• Easy Installation:

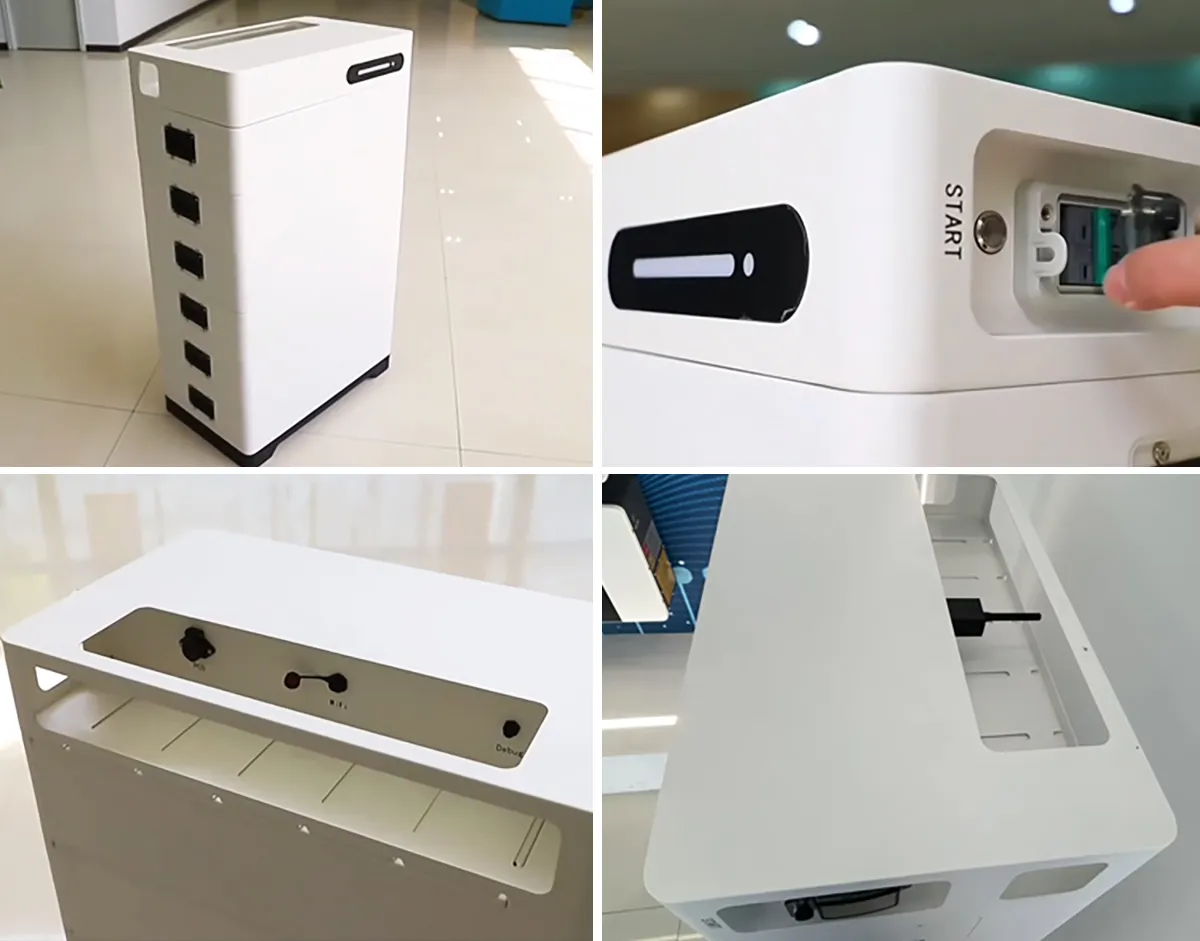

52kg/105.8lb per battery box,easy tomove and install.Ouick connectorbetween boxes,no cable connecting.
• Environment Adaptability:
Wider temperature range: -20°C~+55°CIP65 protection class.
• More Usable Energy:
90% Depth of Discharge, more than6000 cycles (0.5C, 25°C).
• Safe & Reliable:
Lithium lron Phosphate(LFP) cell only.BMS, fuse and aerosol kit are builtin.connecting.
• DExpansion Flexibility:

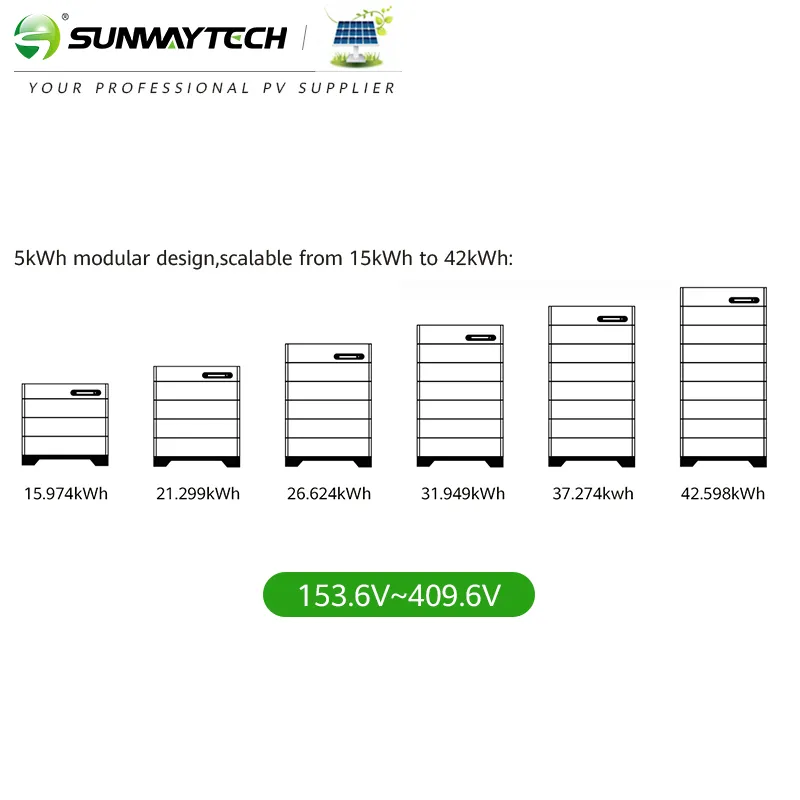

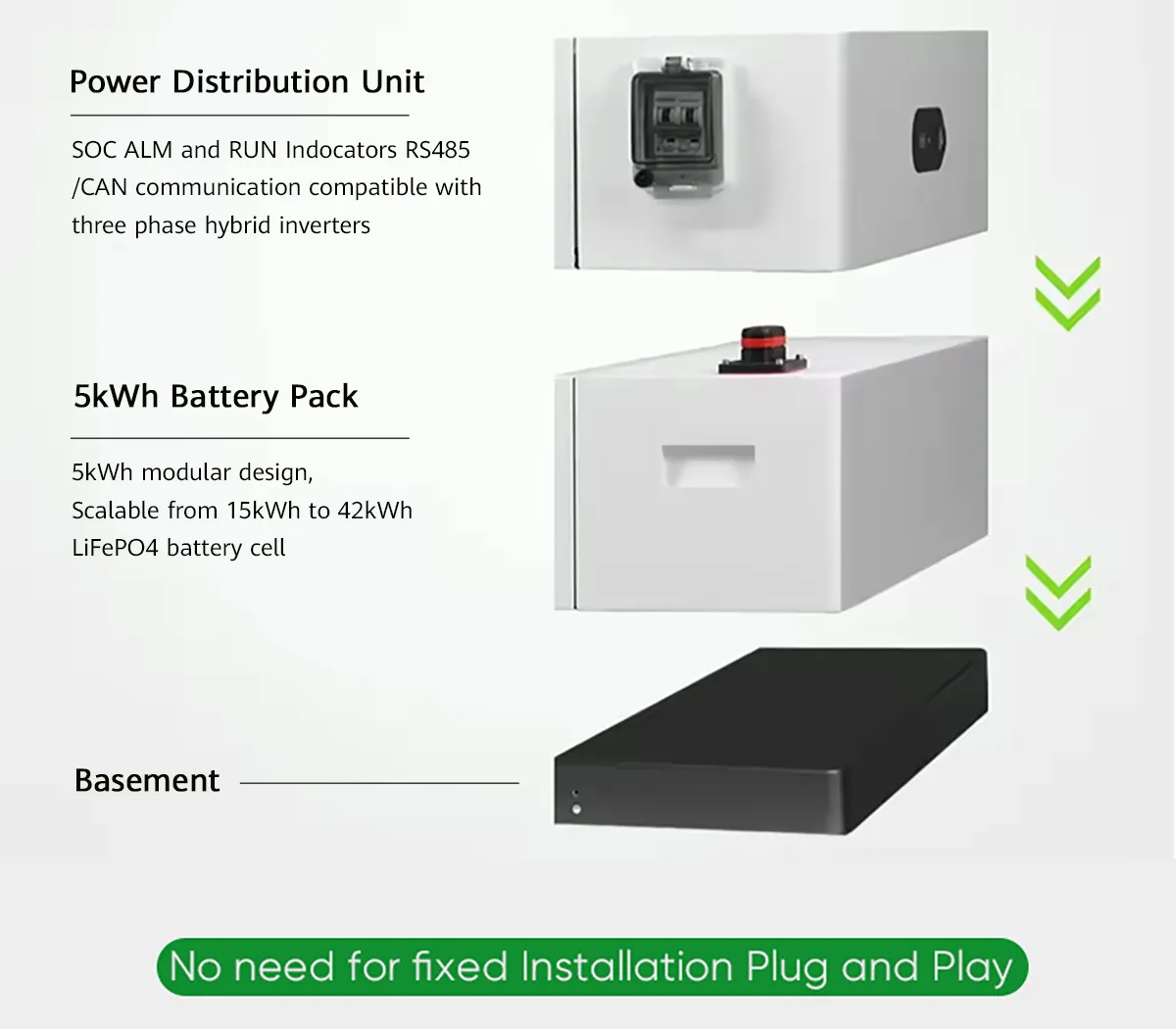

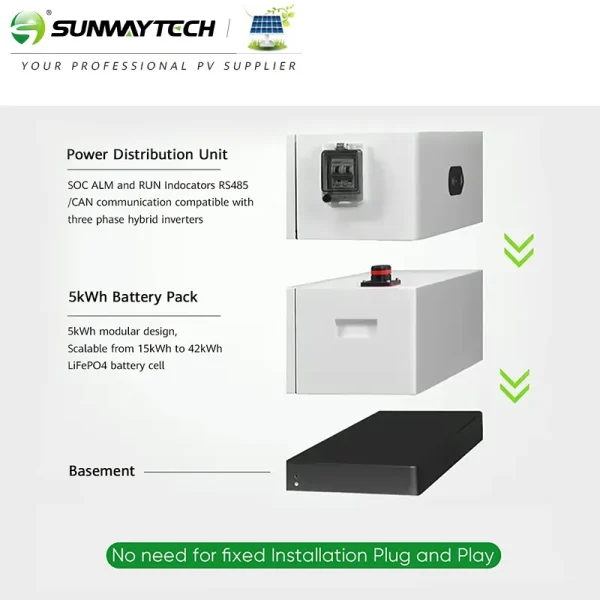

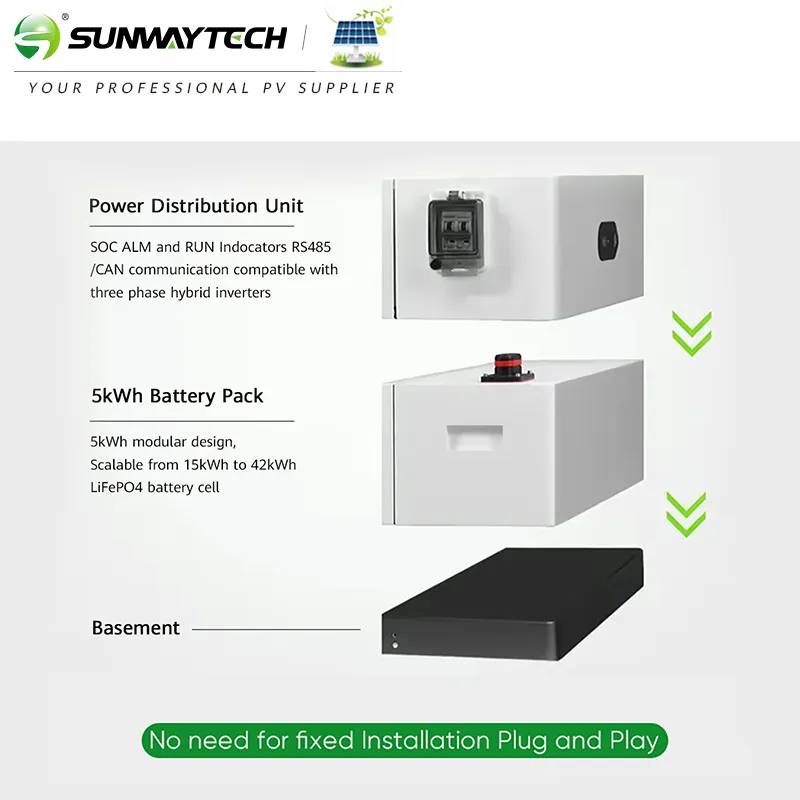

5kWh modular design ,Scalable from15kWh to 42kWh.
• Long Lifespan:
More than 15 years.
| Product Parameter | |
| Capacity | 104Ah |
| Max.Discharge | 50A |
| Charge Current | 50A |
| Battery Type | LiFePO4 |
| Installation | Ground-mounted |
| Protection Level | IP65 |
| Cycle Life | >6000@ 25°C,0.5C,90%DOD |
| Transportation SOC | 30% |
| Working Temperature | Charge: O°C~+50°C Discharge: -20°C~+55C |
| Storage Temperature | -20℃~+35℃ |
| Communication | CAN /RS485 |

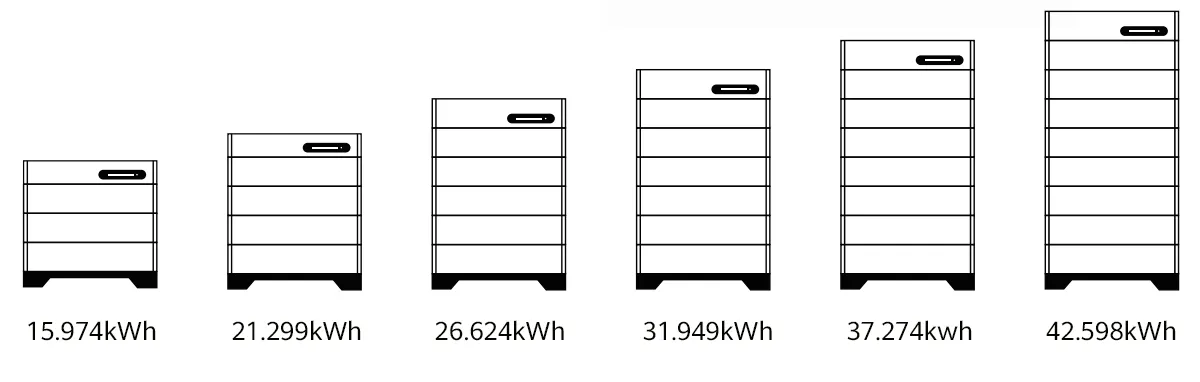

| GH02-15K | GH02-21K | GH02-26K | GH02-31K | GH02-37K | GH02-42K | |
| Model Nominal Voltage | 153.6V | 204.8V | 256V | 307.2V | 358.4V | 409.6V |
| Connection | 2P48S | 2P64S | 2P80S | 2P96S | 2P112S | 2P128S |
| Voltage Working Range | 114.7V-159.7V | 153V-213V | 191.2V-266.2V | 230V-319V | 267.7V-372.7V | 306V-426V |
| Rated Energy | 15.974kWh | 21.299kWh | 26.624kWh | 31.949kWh | 37.274kWh | 42.598kWh |
| Dimensions(W*H*D) | 670*645*396mm | 670*800*396mm | 670*955*396mm | 670*1110*396mm | 970*1265*396mm | 670*1420*396mm |
