High quality NEP microinverter 2000w 220V On grid inverter for Home Energy Storage Systems
| Model Number: | BDM800 |
| Output power： | 2000w |
| Output Voltage: | 3.36V |
| Size: | 268x250x42mm |
| Weight: | 2.9KG |

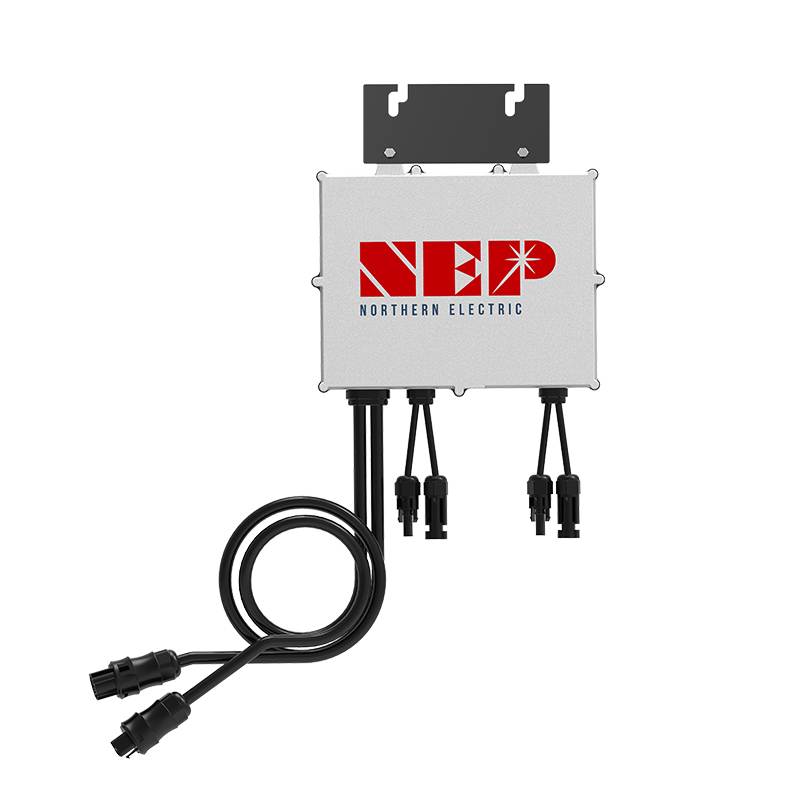

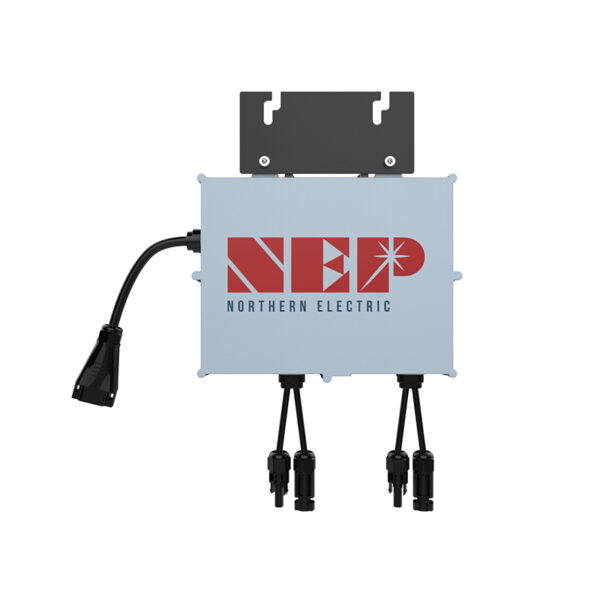

BDM 800 MICRO INVERTER

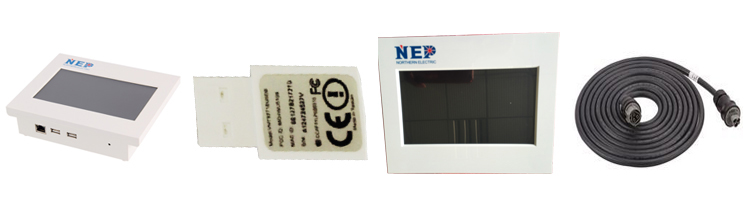

The BDM-800 is a micro inverter designed to generate more energy at a low cost and with an efficiency of 95%. It has an integrated monitor and power line communication with BDG-256 gateway . It can be connected to the BDM-300, BDM-250, and BDM-300×2. This micro-inverter is globally certified for Rule 21, TUV, NEMA-6/IP-66/IP-67 enclosure rating.
|
Model
|
BDM 800
|
|
Input DC
|
|
|
Recommended Max PV Power (Wp)
|
1200
|
|
Recommended Max DC Open Circuit Voltage (Vdc)
|
60
|
|
Max DC Input Current (Adc)
|
17×2
|
|
MPPT Tracking Accuracy
|
>99.5%
|
|
MPPT Tracking Range (Vdc)
|
22-55
|
|
Isc PV (absolute maximum) (Adc)
|
20 x 2
|
|
Maximum Inverter Backfeed Current to the Array
(Adc) |
0
|
|
Output AC
|
|
|
Rated AC Output Power (Wp)
|
800
|
|
Nominal Power Grid Voltage (Vac)
|
768 / 700 / 750
|
|
Allowable Power Grid Voltage (Vac)
|
211V-264* / 183V-228* / configurable*
|
|
Allowable Power Grid Frequency (Hz)
|
59.3 a 60.5* / configurable
|
|
THD
|
<3% (at rated power)
|
|
Power Factor (cos phi, fixed)
|
-0.99>0.9 (adjustable) / 0.8un>0.8ov
|
|
Rated Output Current (Aac)
|
3.2 / 3.36 / 3.26
|
|
Current (inrush)(Peak and Duration)
|
9.4A, 15us
|
|
Nominal Frequency (Hz)
|
60 / 50
|
|
Maximum Output Fault Current (Aac)
|
9.6A peak
|
|
Maximum Output Overcurrent Protection (Aac)
|
10
|
|
Maximum Number of Units Per Branch (20A)
(All NEC adjustment factors have been considered) |
5 / 5 / 5
|
|
System efficiency
|
|
|
Weighted Averaged Efficiency (CEC)
|
95.50%
|
|
Night Time Tare Loss (Wp)
|
0.11
|
|
Protection functions
|
|
|
Over/Under Voltage Protection
|
Yes
|
|
Over/Under Frequency Protection
|
Yes
|
|
Anti-Islanding Protection
|
Yes
|
|
Over Current Protection
|
Yes
|
|
Reverse DC Polarity Protection
|
Yes
|
|
Overload Protection
|
Yes
|
|
Protection Degree
|
NEMA-6 / IP-66 / IP-67
|
|
Ambient Temperature
|
-40°F to +149°F (-40°C to +65°C)
|
|
Operating Temperature
|
-40°F to +185°F (-40°C to +85°C)
|
|
Display
|
LED LIGHT
|
|
Communications
|
Power Line
|
|
Dimension (W-H-D)
|
8.8” x 8.2” x 1.38” (268x250x42 mm)
|
|
Weight
|
6.4 lbs. (2.9 kg)
|
|
Environment Category
|
Indoor and outdoor
|
|
Wet Location
|
Suitable
|
|
Pollution Degree
|
PD 3
|
|
Overvoltage Category
|
II(PV), III (AC MAINS)
|
|
Product Safety Compliance
|
IEC/EN 62109-1, IEC/EN 62109-2
Other Certificates are Optional
|
|
Grid Code Compliance* (Refer to the label for the
detailed grid code comliance) |
IEEE 1547,VDE-AR-N 4105*,VDE V 0126-1-1/A1
AS 4777.2 & AS,TOR Erzeuger Typ A
|
