Sunway Jinko 144cells 182mm 530w 550w Monocrystalline Half Cell Solar Panel

Sunway Jinko 144cells 182mm 530w 550w Monocrystalline Half Cell Solar Panel

Hot Sale Jinko Solar Panels 550w 545w 540w 530w Half Cell Mono Pv Solar Panel For Home

Model Number:JKM545M-72HL4-V
Power Range:530W-550W
Dimensions:2274×1134×35mm
Weight:28kg
Certificate:CE/TUV

Tiger Pro 72HC 530-550 Watt MONO-FACIAL SOLAR MODULE

Cell Type
P type Mono-crystalline
No.of Half-cells
144 (6×24)

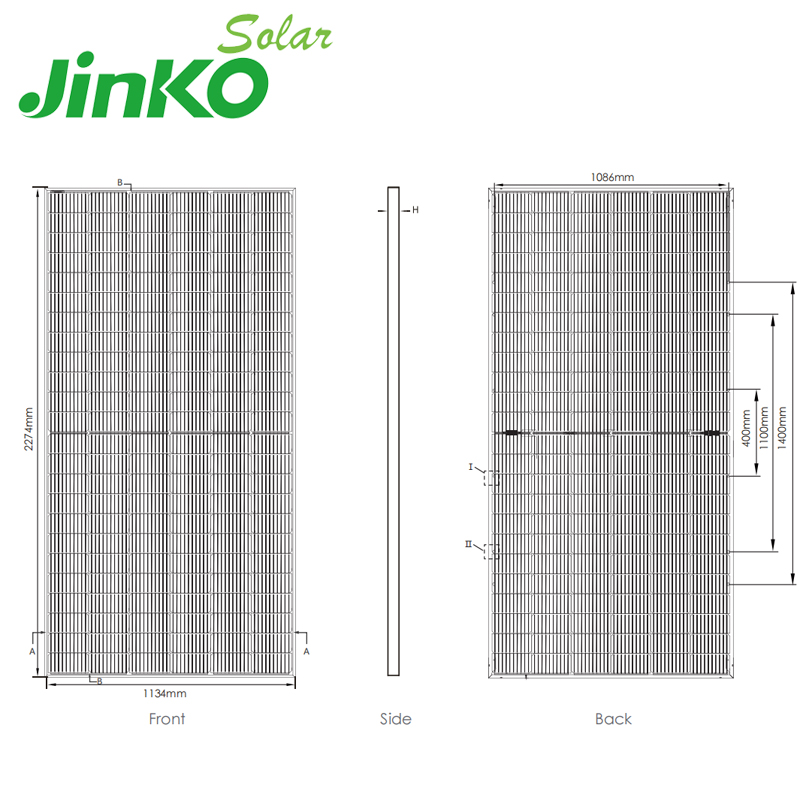

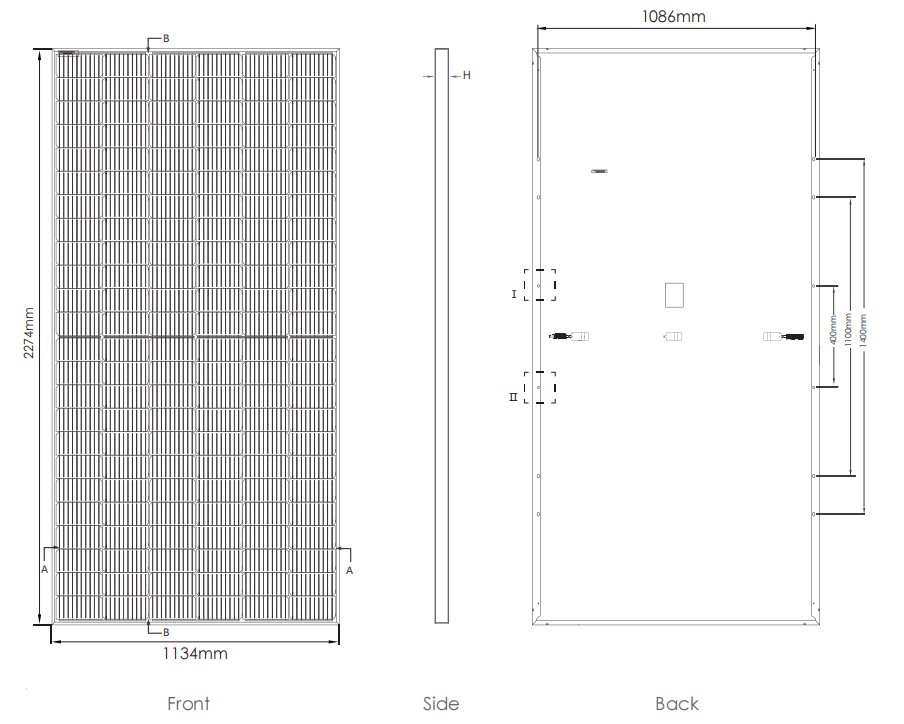

Dimensions
2274×1134×30mm (89.53×44.65×1.18 inch)
Weight
32 kg (70.55 lbs)
Front Glass
2.0mm, Anti-Reflection Coating
Back Glass
2.0mm, Heat Strengthened Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TÜV 1x4.0mm2,(+) 290mm, (-) 145mm or Customized Length

KEY FEATURES

Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.

Longer Life-time Power Yield
0.45% annual power degradation and 30 year linear power warranty.

PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.

Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Higher Power Output
Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.

LINEAR PERFORMANCE WARRANTY
12 Year Product Warranty
30 Year Linear Power Warranty
0.45% Annual Degradation Over 30 years

Module Type
JKM525M
-72HL4-BDVP
JKM530M
-72HL4-BDVP
JKM535M
-72HL4-BDVP
JKM540M
-72HL4-BDVP
JKM545M
-72HL4-BDVP

STC
NOCT
STC
NOCT
STC
NOCT
STC
NOCT
STC NOCT
Pmax.(W)
525
391
530
394
535
398
540
402
545     405
Vmp(V)
40.80
37.81
40.87
37.88
40.94
37.94
41.13
38.08
41.32  38.25
Imp(A)
12.87
10.33
12.97
10.41
13.07
10.49
13.13
10.55
13.19    10.60
Voc(v)
49.42
46.65
49.48
46.70
49.54
46.76
49.73
46.94
 49.92    47.12
Isc(A)
13.63
11.01
13.73
11.09
13.83
11.17
13.89
11.22
13.95     11.27
Module Efficiency
20.36%(STC)
20.55%(STC)
20.75(STC)
20.94%(STC)
21.13%(STC)
Operating Temperature(℃): -40℃~+85℃
Maximum System Voltage: 1000/1500VDC (IEC)
Maximum Series Fuse Rating: 20A
Power Tolerance: 0~+3%
Temperature Coefficients of Pmax: -0.35%/℃
Temperature Coefficients of Voc: -0.29/℃
Temperature Coefficients of Isc: 0.048%/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
BIFACIAL OUTPUT-REARSIDE POWER GAIN
Jinko Tiger Pro 72HC-BDVP 525-545 Watt BIFACIAL MODULE SOLAR PANEL WITH DUAL GLASS P-Type

5%
Maximum Power (Pmax)
551Wp
557Wp
562Wp
567Wp
572Wp
Module Efficiency STC (%)
21.38%
21.38%
21.78%
21.99%
22.19%
15%
Maximum Power (Pmax)
604Wp
610Wp
615Wp
621Wp
623Wp
Module Efficiency STC (%)
23.41%
23.64%
23.86%
24.08%
24.30%
25%
Maximum Power (Pmax)
656Wp
663Wp
669Wp
675Wp
681Wp
Module Efficiency STC (%)
25.45%
25.69%
25.93%
26.18%
26.42%
STC: Irradiance 1000W/m2 Cell Temperature 25°C AM=1.5
NOCT: Irradiance 800W/m2 Ambient Temperature 20°C AM=1.5 Wind Speed 1m/s
