Product Datasheet Download

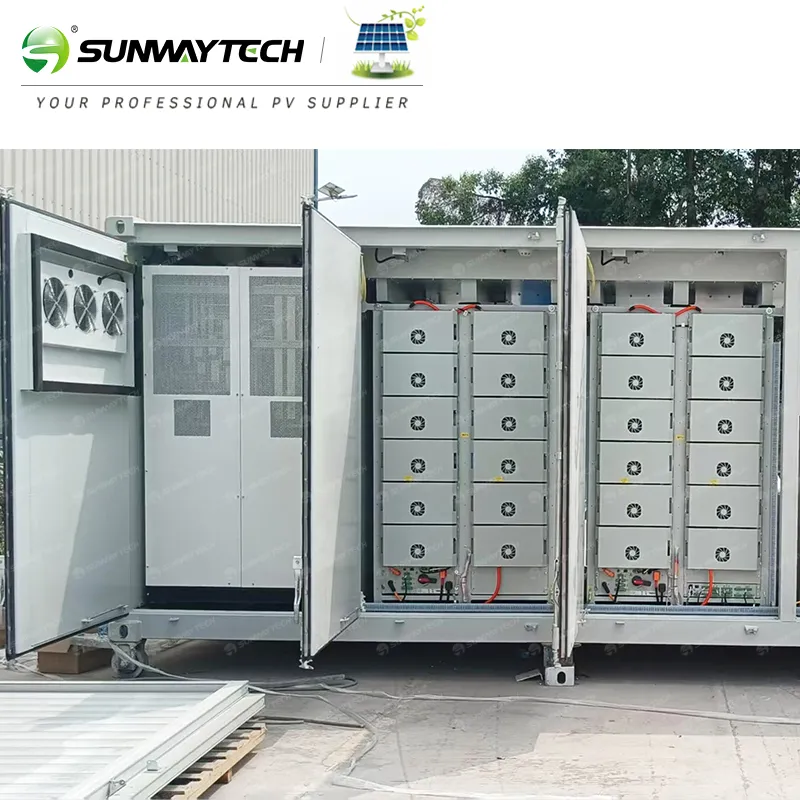

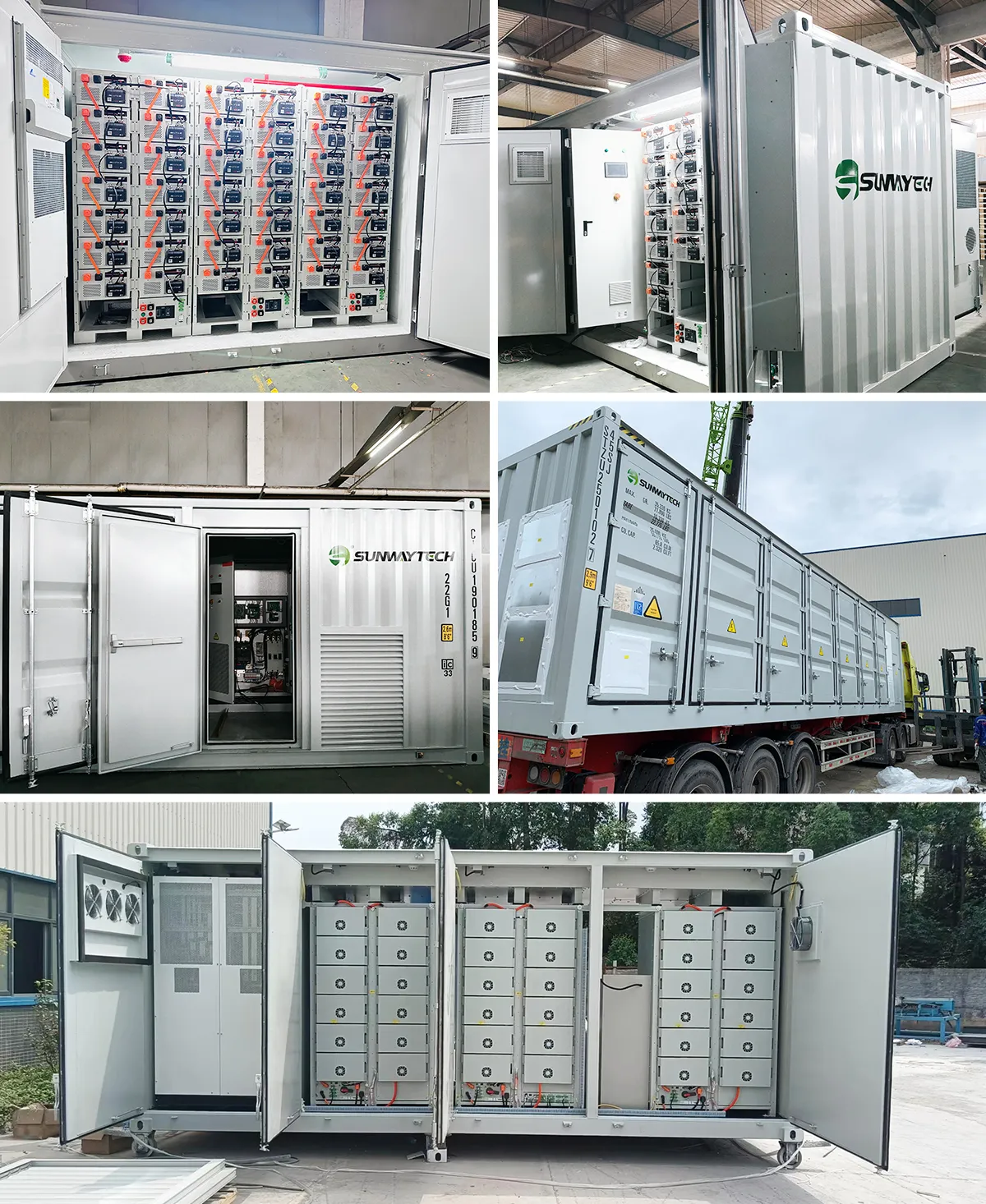

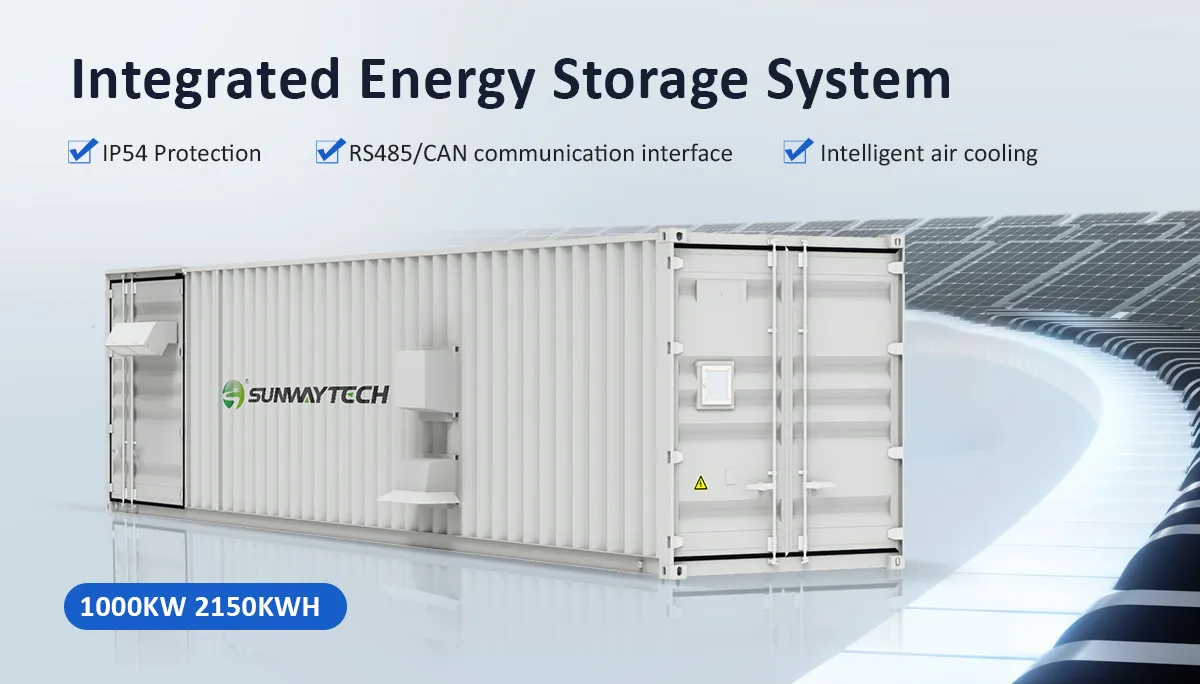

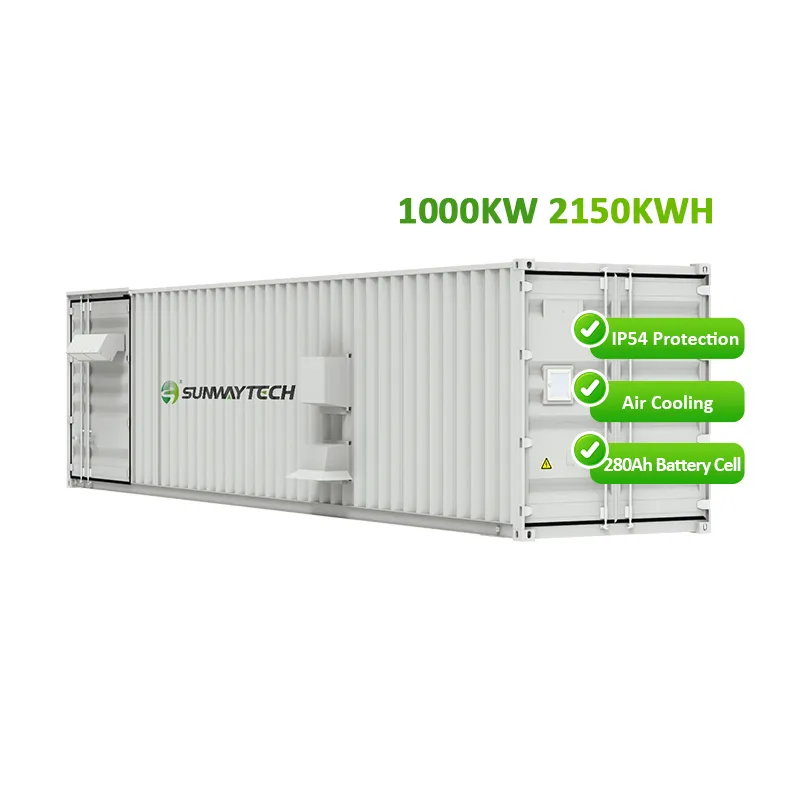

Outdoor energy storage cabinet integrates energy storage battery, modular PCs, energy management monitoring system, power distributon svstemenvironmental control system and fre control system. Adopting modularized pcs, it is easy to maintain and expand capacity, and the outdoor cabineiadoots front maintenance, which can reduce the footprint and maintenance access, and is characterized by safety and reliabiity, rapid deployment,low cost,high energy efficiency and intelligent management.
| Model Number | SWMonet-1000T |
| Battery Rated Energy Storage Capacity | 2150kWh |
| System Voltage Range | 672V~864V |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Communication Protocols | CAN, RS485 |
🔋 High-Capacity Outdoor Energy Storage for Scalable Applications Key Features：
High Energy Capacity:
2150kWh battery storage with 1000 kW rated AC output, ideal for commercial and industrial loads.
Integrated Outdoor Cabinet:

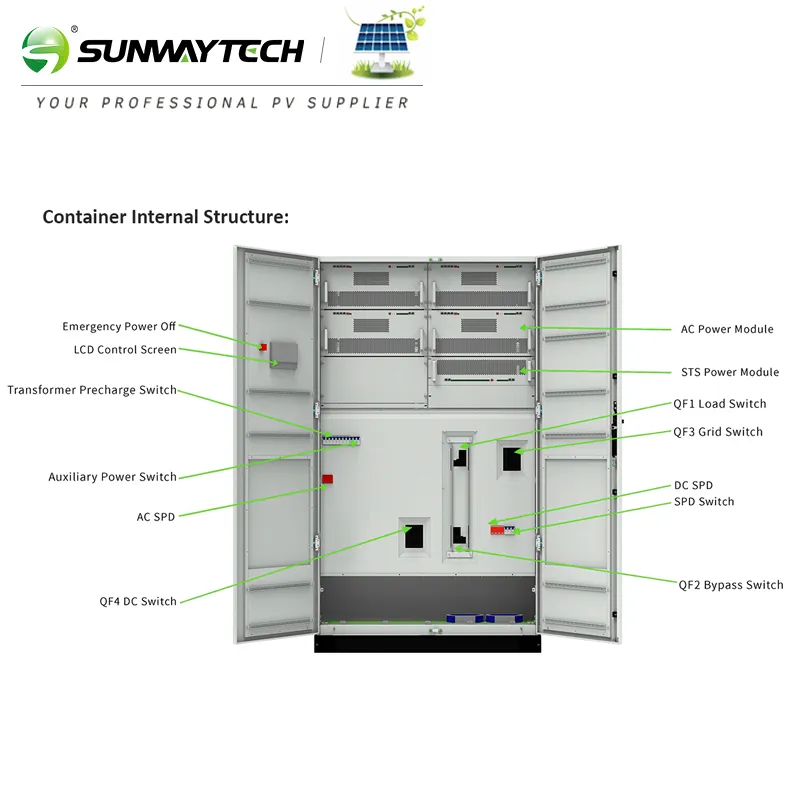

Combines LFP batteries, PCS, EMS, BMS, power distribution, fire protection, and cooling systems in one all-weather unit.
Modular & Expandable:
12 battery boxes in 10P20S12S configuration allow capacity scalability and simple maintenance.
Smart Control:
Equipped with CAN, Ethernet, and RS485 communication protocols for real-time energy management.
Rugged Design:

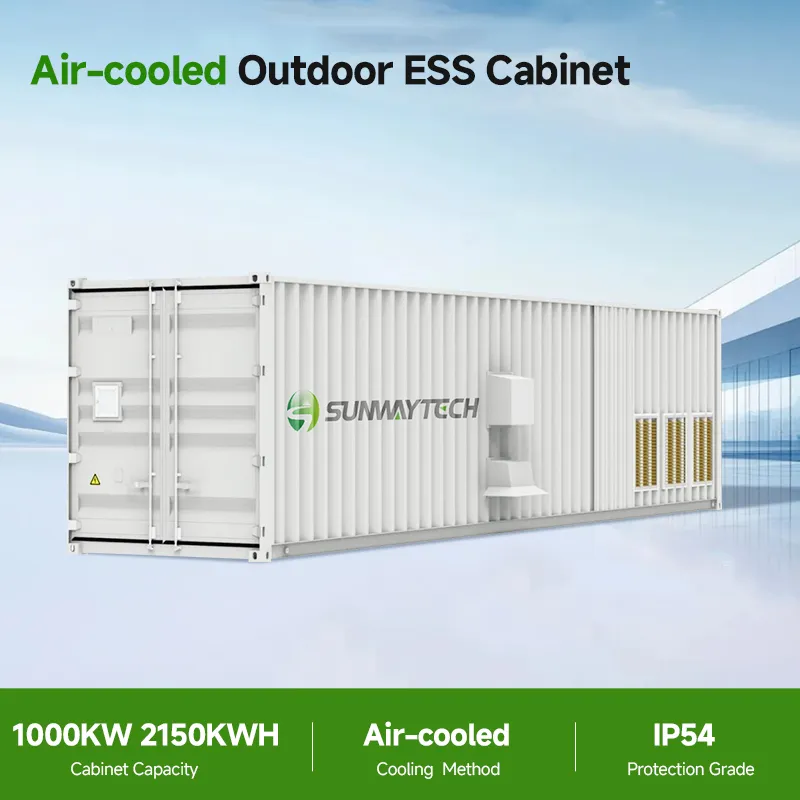

IP54 protection, transformer isolation, intelligent air cooling, and reliable operation from -25°C to 60°C.
| PERFORMANCE PARAMETER | |
| Energy Storage Converter | SWMonet-1000T |
| Operating Voltage Range | 680~1000V |
| Full Load Voltage Range | 680~1000V |
| Maximum DC Current | 200A*8 |
| Adaptive Battery | Lithium Battery/lead acid/photovoltaic modules |
| Charging Mode | Asper BMS command/Tri-Stage/MPPT |
| Operating Mode | Constant current,constant power,MPPT,AC voltage source,DC voltage source |
| AC-side Parameters(On-grid) | |
| Rated/Maximum AC Power | 1000/1100kW |
| Rated AC Current | 180A*8 |
| Rated AC Voltage | 400V,3W+N+PE |
| THDI | <3%(Rated Power) |
| Power Factor | -1 ahead ~+1 behind |
| AC-side Parameters(Off-grid) | |
| Rated AC Voltage | 400V |
| Rated AC Frequency | 50/60Hz |
| THDU | <3%(linear load) |
| Overload Capacity | 110%,normal operation; 120%,1 minute |
| General Parameters | |
| Degree of Protection | IP21(Indoor) |
| Isolation Mode | Transformer isolation |
| Shutdown Self-discharge | <0.1%Rated power(without transformer) |
| Display | LCD |
| Relative Humidity | 0~95%(no condensation) |
| Noise | <78dB |
| Ambient Temperature | -35°C~+60°C(derating above 45°C) |
| Cooling Mode | Intelligent air-cooled |
| Altitude | 3000m(>3000m reduction) |
| Communication Interface | RS485/CAN |
| Dimensions(W*D*H) | 1200*1000*2100mm(PCS cabinet) |
| Weight(approx.) | 3400kg |
| Energy Storage System | |
| Battery Rated Capacity | 215kWh*10 |
| Battery Rated Voltage | 832V |
| Battery Voltage Range | 672~864V |
| Battery Pack Series and Parallel Connection | 10P*20S*12S |
| Adaptive Battery | LFP |
| Cell Capacity | 280Ah |
| Degree of Protection | IP54 |
| Relative Humidity | 0~95%(no condensation) |
| Noise | <78dB |
| Ambient Temperature | -25C~+60°C(derating above 45°C) |
| Cooling Mode | Intelligent air-cooled| |
| Altitude | 3000m(>2000m reduction) |
| Fire Extinguishing System | Perfluorohexane/heptafluoropropane pipeline fire extinguishing system |
| Communication Interface | RS485/CAN |
| Dimensions(W*D*H) | 12196*2438*2896mm (Container) ;800*800*2100mm(CombinerConverter) |
| Weight(approx.) | 27.5t |
