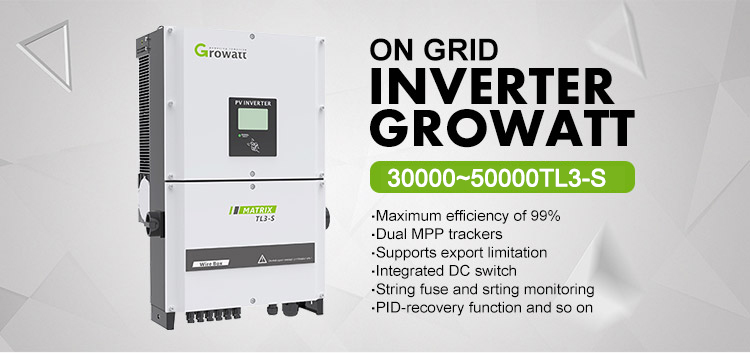

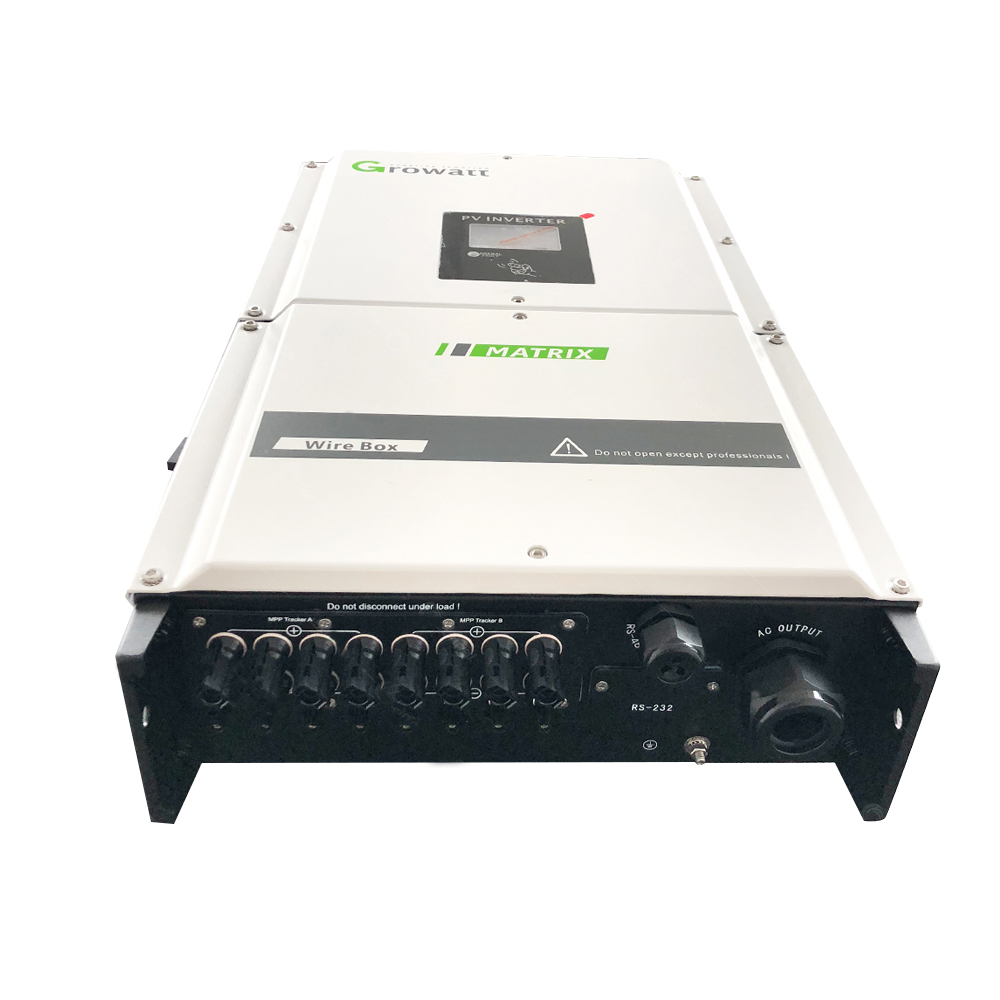

Sunway Growatt 30kw 50kw 380V Triple Phase On Grid Solar Inverter
| Model Number: | 30000TL3-S |
| Output power： | 30-50kw |
| Output Voltage: | 380V |
| Size: | 470*754*270mm |
| Weight: | 48KG |
|
Datasheet
|
30000TL3-S
|
33000TL3-S
|
40000TL3-S
|
50000TL3-S5500M
|
|
Max. recommended PV power
(for module STC)
|
37500W
|
41250W
|
50000W
|
60000W
|
|
Max. DC voltage
|
1000V
|
1000V
|
1000V
|
1000V
|
|
PV voltage range
|
200V-1000V
|
200V-1000V
|
200V-1000V
|
200V-1000V
|
|
Nominal voltage
|
580V
|
580V
|
580V
|
695V
|
|
MPP voltage range at Full Power
|
450V-800V
|
450V-800V
|
540V-800V
|
645V-850V
|
|
Max. input current
|
34A/34A
|
38A/38A
|
38A/38A
|
38A/38A
|
|
Number of independent MPP trackers/strings per MPP tracker
|
2/4
|
2/4
|
2/4
|
2/4
|
|
Output (AC)
|
||||
|
Rated AC output power
|
30KW
|
33KW
|
40Kw
|
50Kw
|
|
Max. AC apparent power
|
33.3kVA
|
36.6kVA
|
44.4kVA
|
53.3kVA
|
|
Max. output current
|
48.3A
|
53A
|
64.5A
|
64.5A
|
|
AC nominal voltage; range
|
230V/400V
|
230V/400V
|
230V/400V
|
277V/480V
|
|
AC grid frequency; range
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
|
Displacement power factor,
configurable
|
0.8leading…
0.8lagging
|
0.8leading…
0.8lagging
|
0.8leading…
0.8lagging
|
0.8leading…
0.8lagging
|
|
THDi
|
<3%
|
<3%
|
<3%
|
<3%
|
|
AC grid connection type
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE/3W+PE
|
|
System Energy
|
7KW, 8KW, 9KW, 10KW |
| Output Type | Single |
| Type | DC/AC Inverters |
| Input Voltage | 360V |
| Output Voltage | 220V,230V,240V |
| Output Current | 33.6A, 38.3A, 45A, 50A |
| Certificate | CE/IEC |
| System Energy | 3kw/3.6kw/4kw/5kw/6kw |
| Output Type | Single |
| Type | DC/AC Inverters |
| Input Voltage | 360V |
| Output Voltage | 120/240V |
| Output Current | 15A, 17.5 A,20A, 24A ,28.7A |
| Certificate | CE/IEC |
Growatt On Grid Solar Inverter Mid 2500w 6000w 220V Dual Mppt Trackers Growatt On Grid Inverter With USB
| Model Number: | MIN 4200TL-X |
| Output power： | 2.5-6kw |
| Output Voltage: | 230V |
| Size: | 355*419*158mm |
| Weight: | 15KG |
Good quality solar inverter on off grid Max 100-125KTL3-X 100kw 125kw 380V growatt on grid solar inverter in factory price
| Model Number: | Max 100-125KTL3-X |
| Output power： | 100-125kw |
| Output Voltage: | 380V |
| Size: | 970*640*345mm |
| Weight: | 84KG |
