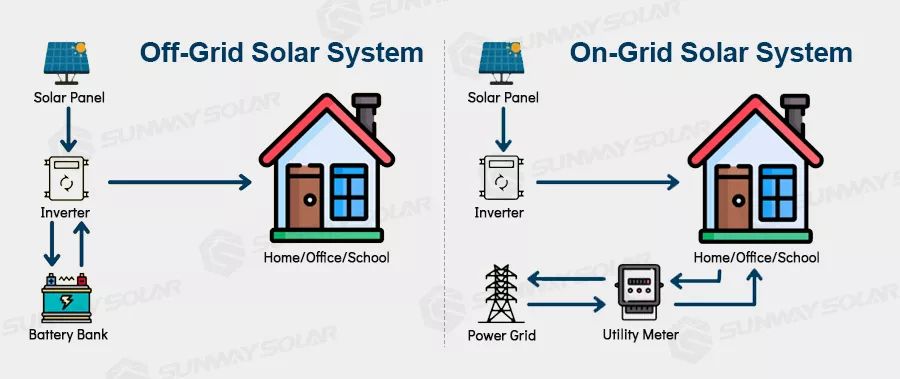

What is off grid system?.
Off-grid system is suitable for areas without grid-connected or unstable geid-connected power.

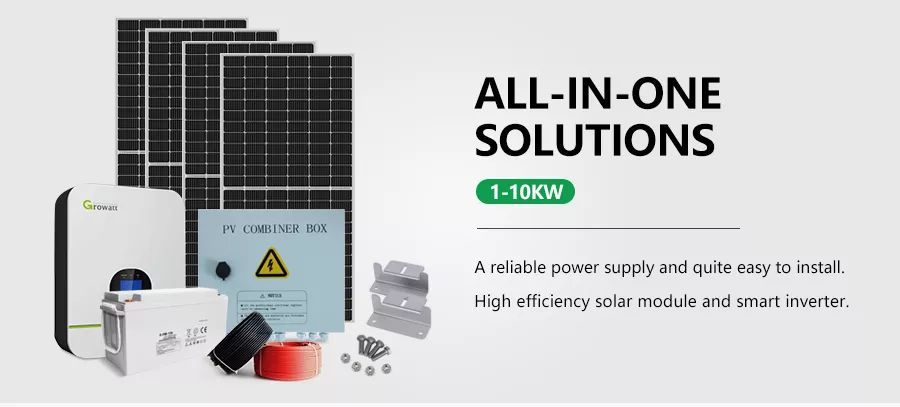

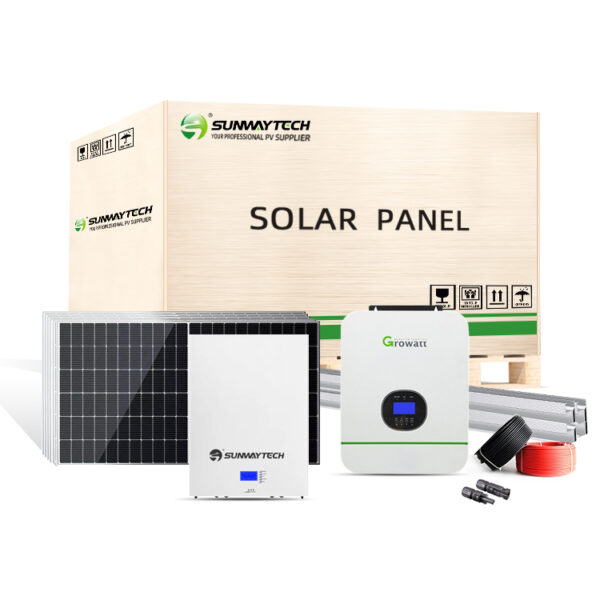

Off grid system is usually composed od solar panels. connector, inverter, battery and mounting system.
|
Components
|
SW1KW-OFF
|
SW3KW-OFF
|
SW5KW-OFF
|
SW8KW-OFF
|

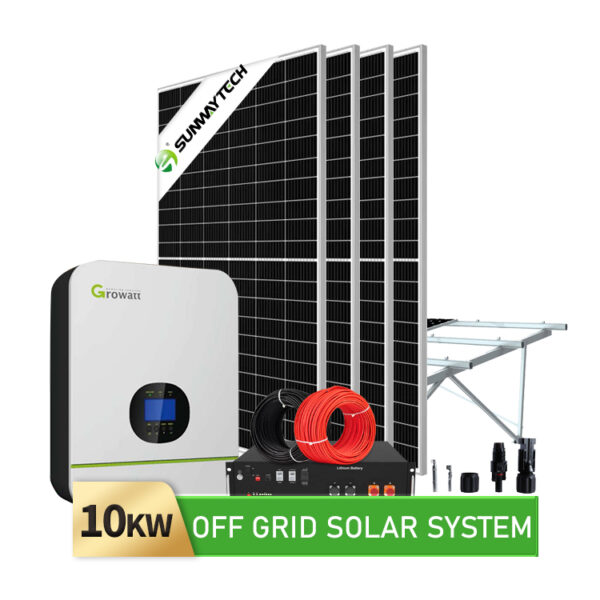

SW10KW-OFF
|
|
580W Solar Panel
|
2 Pieces
|
5 Pieces
|
8 Pieces
|
14 Pieces
|
16 Pieces
|
|
Combiner Box
|
2 in 1 out
|
5 in 1 out
|
4 in 1 out
|
7 in 1 out
|
8 in 1 out
|
|
Off Grid Inverter
|
1kw
|
3kw
|
5kw
|
8kw
|
10kw
|
|
12V 200AH/250 GEL Battery
|
1 Piece
|
2 Pieces
|
4 Pieces
|
4 Pieces
|
8 Pieces
|
|
DC Cable
|
100 Meters
|
100 Meters
|
200 Meters
|
200 Meters
|
200 Meters
|
|
MC4 Connector
|
4 Pairs
|
4 Pairs
|
6 Pairs
|
6 Pairs
|
8 Pairs
|
|
Mounting System
|
Ground or Roof ( Customized Optional )
|

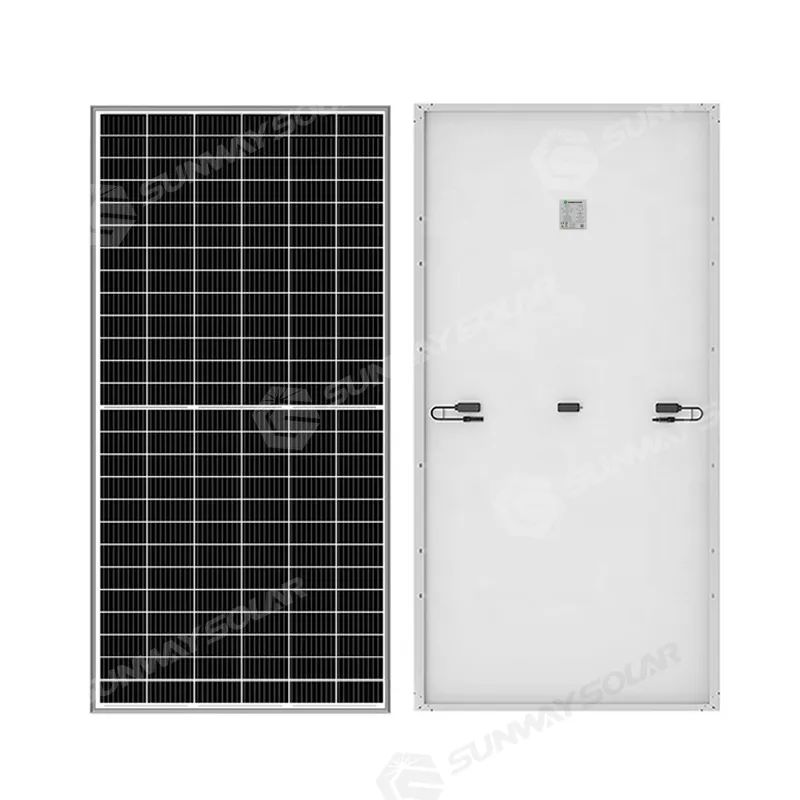

HALF CELL MONO/POLY SOLAR PANEL

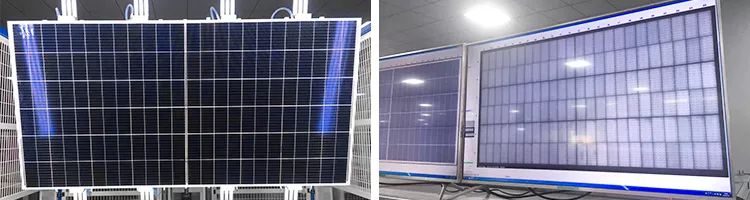

1. Positive power tolerance:0~+5w2. 100%EL Double-inspection ensures modules are defects free
3. 5BB, 6BB, 9BB, 10BB, 12BB, MBB Available
4. 158.75mm, 166mm, 182mm, 210mm Size
5. Full Cell, Half Cut, 3-Cut
6. Perc/Hjt/All Black/Frameless Tech
7. Sunway Solar Brand or Tier 1 Optional
8. Waterproof Label on Back of Panel
OFF GRID SOLAR INVERTER
1.Pure sine wave inverter2.Parallel operetion with up to 9 units
3.Auto restart while AC is recovering
4.Built-in MPPT solar charge controller
5.Compatible to mains voltage or generator power
6. Selectable input voltage range for home appliances and personal computers
7. Configurable AC/Solar input priority via LCD setting

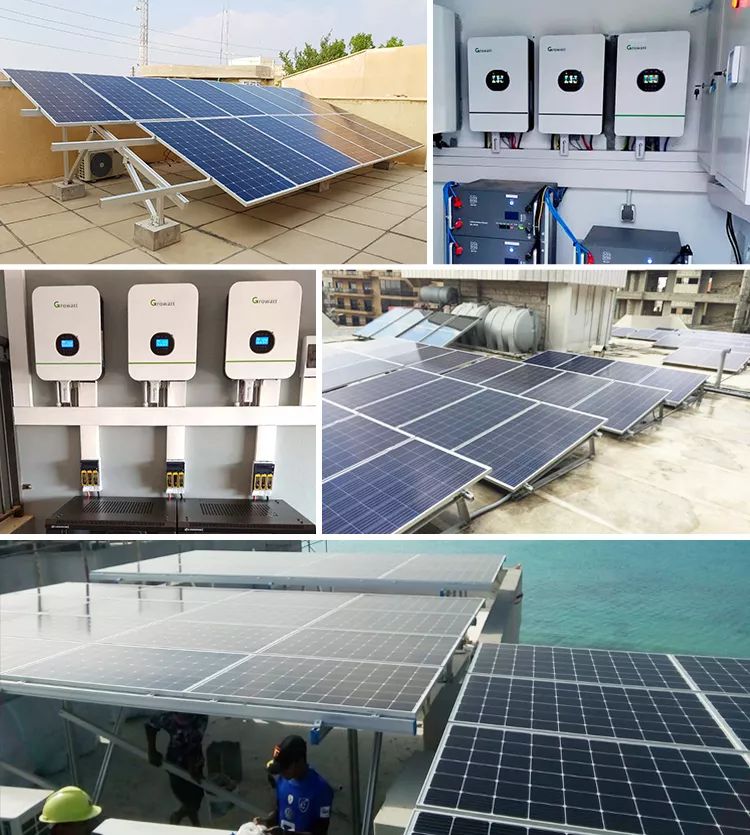

SOLAR MOUNTING SYSTEM
1. Ground Solar Mounting System2. Residential Roof(Pitched Roof)
3. Car parking solar mounting system
4. Vertical wall solar mounting system
5. Commercial Roof(Flat roof&workshop roof)
6. All aluminum structure solar mounting system
7. Ballasted mount, Do not harm the roof structure.
8. Most Parts are Preinstalled, Save 50% Labour Force
SOLAR SYSTEM ACCESSORIES
1. Pin Diameter:4mm2. Degree of Proteetion:IP67
3. Max System Voltage:1000V
4. Rated Current:30A(4m3/6m3)
5. Excellent resistance to U.V,oil, greases, oxygen and ozone
6. Excellent flexibility and stripping
7. High Voltage and Current carring capacity
8. IP 65 Degree Lightning Protection

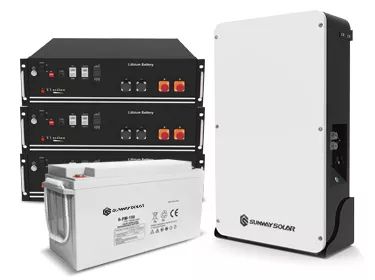

SOLAR BATTERY BANK
1. Deep cycle long lifespan2. High discharge performance
3. Easy installation and Maintenance-free
4. Agm/Gel/Lithium Ion Battery Type
5. 2V/12V/48V/High Voltage Battery
6. More than 6000 times, up to 90% DOD
7. Wide suitability of ambient temperature range
8. Maintenance is simple, reducing deep discharge.
PV TOOLS
1. Disassembly Tool2. MC3 MC4 Crimper
3. Wire Cable Cutter & Stripper
4. MC4 Connectors Assembly
5. Solar Crimping Tool is High-precision ratchet mechanism for complete crimps; 1.2 metric tons pressure at crimping face, with
minimal hand effort; Interchangeable high-precision crimping die set; Top German quality.
