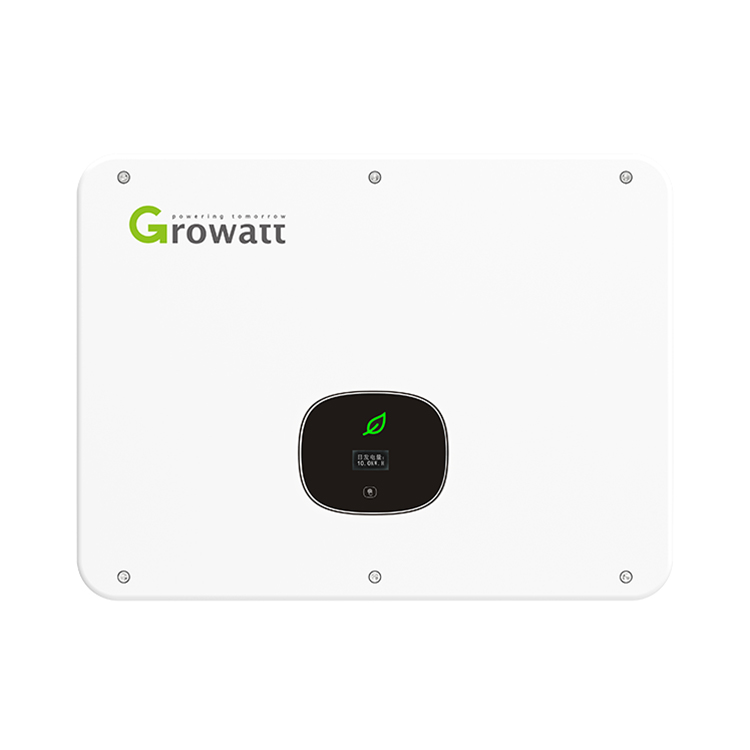

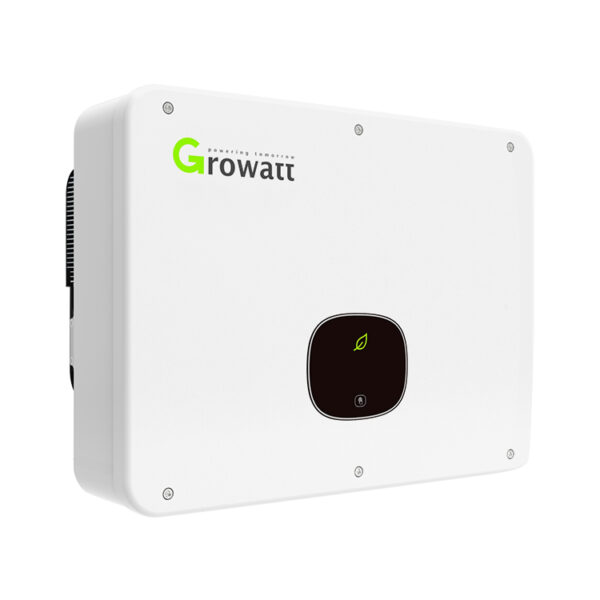

Growatt on grid solar inverter 15KW 20KW 25KW on grid 10kva 3 phases solar inverter
| Model Number: | MID 15-25KTL3-X |
| Output power： | 15-25kw |
| Output Voltage: | 380V |
| Size: | 525*395*222mm |
| Weight: | 23KG |
The new Growatt MID 15-25KTL3-X range of 3-phase inverters is lighter and more compact than previous models. It is suitable for residential and small commercial installations.
|
Datasheet
|
MID15KTL3-X
|
MID17KTL3-X
|
MID20KTL3-X
|
MID22KTL3-X
|
MID25KTL3-X
|
|
Input data (DC)
|
|||||
|
Max. recommended PV power (for module STC)
|
22500W
|
25500W
|
30000W
|
33000W
|
37500W
|
|
Max. DC voltage
|
1100V
|
||||
|
Start Voltage
|
250V
|
||||
|
Nominal voltage
|
580V
|
||||
|
MPPT voltage range
|
160V-1000V
|
||||
|
No. of MPP trackers
|
2
|
||||
|
No. of PV strings per MPP tracker
|
2
|
2/3
|
|||
|
Max. input current per MPPT tracker*
|
27A
|
27A/40.5A
|
|||
|
Max. short circuit current per MPPT
|
33.8A
|
33.8A/50.7A
|
|||
|
Output data (AC)
|
|||||
|
Rated AC output power
|
15000W
|
17000W
|
20000W
|
22000W
|
25000W
|
|
Max. AC apparent power
|
16600VA
|
18800VA
|
22000VA
|
24400VA
|
27700VA
|
|
Nominal AC voltage(range*)
|
220V/380V, 230V/400V (340-440V)
|
||||
|
AC grid frequency;(range*)
|
50/60 Hz (45-55Hz/55-65 Hz)
|
||||
|
Max. output current
|
24.2A
|
27.4A
|
31.9A
|
35.5A
|
40.2A
|
|
Adjustable power factor
|
0.8leading…0.8lagging
|
||||
|
THDi
|
<3%
|
||||
|
AC grid connection type
|
3W+N+PE
|
||||
|
Efficiency
|
|||||
|
Max.efficiency
|
98.75%
|
||||
|
European efficiency
|
98.6%
|
||||
|
MPPT efficiency
|
99.9%
|
||||
|
General data
|
|||||
|
Dimensions (W / H / D)
|
525/395/222mm
|
||||
|
Weight
|
23kg
|
||||
|
Operating temperature range
|
-25 °C ... +60 °C
|
||||
|
Self-Consumption (night)
|
<1W
|
||||
|
Topology
|
Transformerless
|
||||
|
Cooling
|
Smart air cooling
|
||||
|
Protection degree
|
IP65
|
||||
|
Relative Humidity
|
0~100%
|
||||
|
Altitude
|
4000m
|
||||
|
DC connection
|
H4/MC4(Optional)
|
||||
|
AC connection
|
Cable gland+OT terminal
|
||||
|
Display
|
OLED+LED/WIFI+APP
|
||||
|
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN
|
Yes/Yes /Optional/Optional/Optional/Optional
|
||||
|
Warranty: 5 years / 10 years
|
Yes /Optional
|
||||
|
