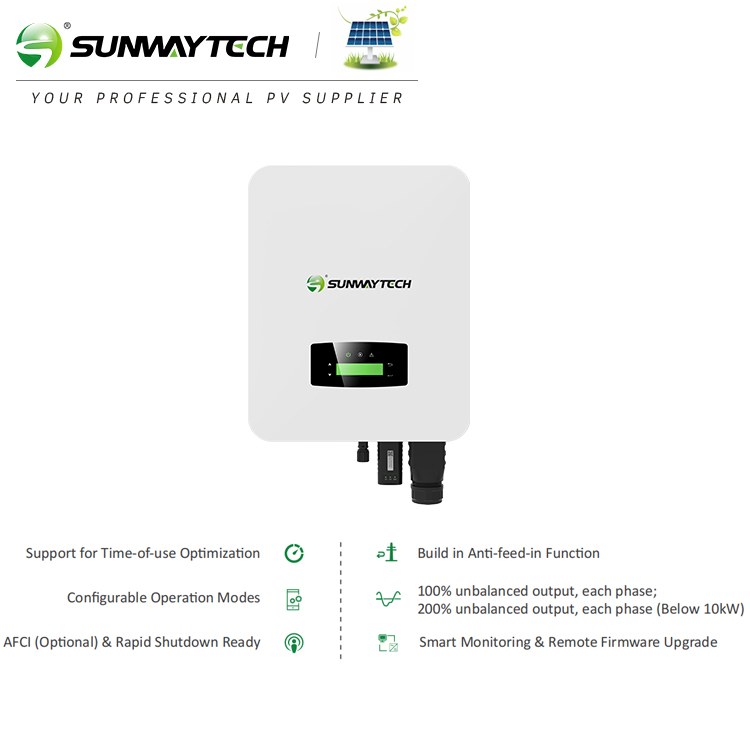

Support for Time-of-use Optimization
Configurable Operation Modes
AFCl (Optional) & Rapid Shutdown Ready
Build in Anti-feed-in Function
200% unbalanced output, each phase (Below 10kW)

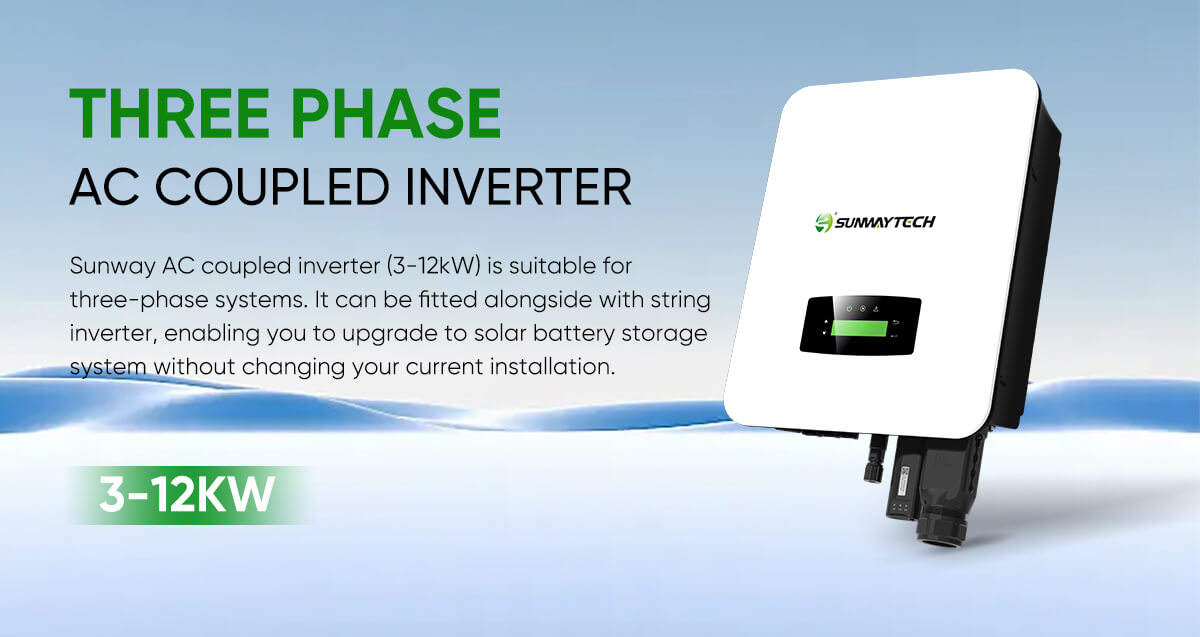

Sunway AC coupled inverter (3-12kW) is suitable for three-phase systems. It can be fitted alongside with string inverter, enabling you to upgrade to solar battery storage system without changing your current installation.
|
Dimensions (W x H x D, mm)
|
370 x 497 x 192
|
|
Topology
|
Tranformerles
|
|
Cooling
|
Natural Convection(3-6kw), Intelligent Fan(8-12kw)
|
|
Relative Humidity
|
0 - 100 %
|
|
Operating Temperature Range (℃）
|
- 25 to 60°C
|
|
Operating Altitude (m)
|
< 4000
|
|
Noise Emission (dB)
|
< 40
|
|
Standby Consumption (W)
|
< 5
|
|
Mounting
|
Wall Bracket
|
|
Weight
|
20.8kg
|
|
Technical Data
|
SW3KHP3EU0
|
SW4KHP3EU0
|
SW5KHP3EU0
|
SW6KHP3EU0
|
SW8KHP3EU0
|
SW10KHP3EU0
|
SW12KHP3EU0
|
|
Battery Port
|
|||||||
|
Battery Nominal Voltage(V)
|
200
|
200
|
200
|
250
|
300
|
400
|
450
|
|
Battery Voltage Range(V）
|
15-800
|
||||||
|
Max. Charge/Discharge Current（A）
|
30
|
||||||
|
Max. Charge/Discharge Power(KW)
|
3/3.3
|
4/4.4
|
5/5.5
|
6/6.6
|
8/8.8
|
10/11
|
12/13.2
|
|
Charging Curve
|
3 Stages
|
||||||
|
Compatible Battery Type
|
Li-ion / Sodium-ion ba
|
||||||
|
AC Grid
|
|||||||
|
Nominal AC Output Power(kW)
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
|
Max. AC Input/Output Power (kVA)
|
4.5/3
|
6/4
|
7.5/5
|
9/6
|
12/8
|
15/10
|
18/12
|
|
Max. AC Output Current(A)
|
5.3
|
7
|
8.5
|
10.5
|
13.5
|
17
|
21.5
|
|
Nominal AC Voltage(V)
|
230 / 400
|
||||||
|
Nominal AC Frenquency (Hz)
|
50 / 60
|
||||||
|
Power Factor
|
1（- 0.8 - 0.8）adjustable
|
||||||
|
Current THD (%)
|
< 3
|
||||||
|
AC Load Output (Back-up)
|
|||||||
|
Nominal Output Power (VA)
|
3000
|
4000
|
5000
|
6000
|
8000
|
10000
|
12000
|
|
Nominal Output Voltage(V)
|
230 / 400
|
||||||
|
Nominal Output
Frequency(Hz)
|
50 / 60
|
||||||
|
Nominal Output Current (A)
|
4.4
|
5.8
|
7.3
|
8.7
|
11.6
|
14.5
|
17.4
|
|
Peak Output Power
|
3300VA, 60s
|
4400VA,60s
|
5500VA,60s
|
6600VA,60s
|
8800VA,60s
|
11000VA,60s
|
13200VA,60s
|
|
THDV (with linear load)
|
< 3 %
|
||||||
|
Switching Time (ms)
|
< 10
|
||||||

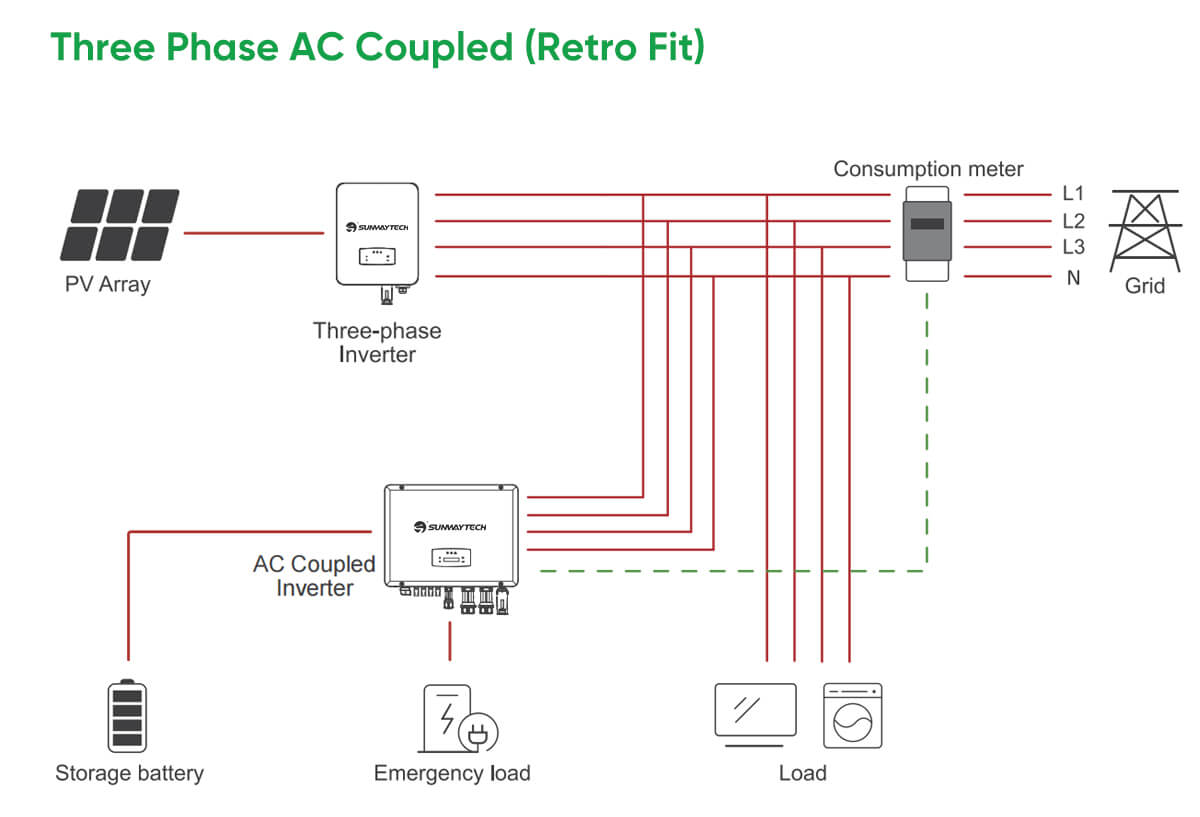

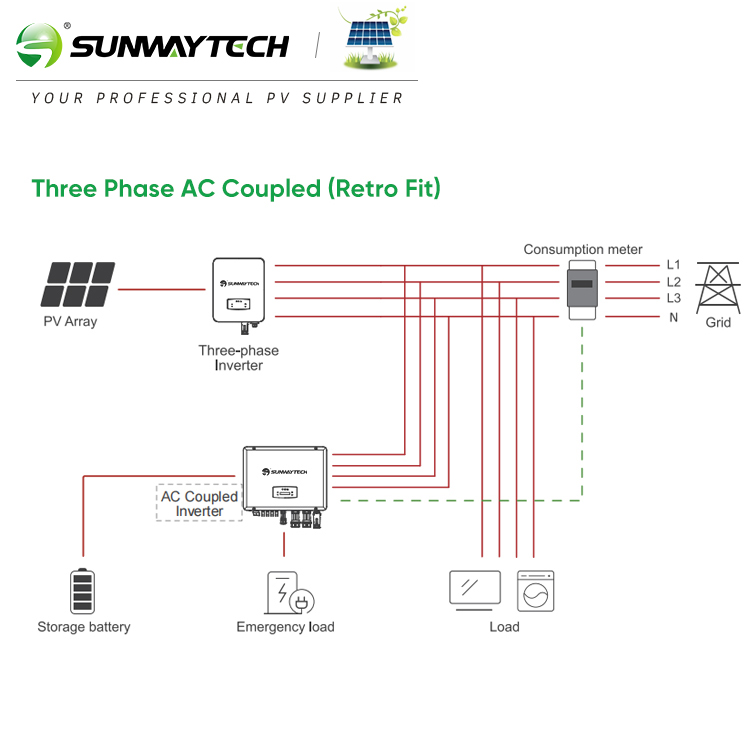

Retrofitting Storage Solution on Existing Solar System:
