Support for Time-of-use Optimization
Configurable Operation Modes
AFCl (Optional) & Rapid Shutdown Ready
Build in Anti-feed-in Function
200% unbalanced output, each phase (Below 10kW)
Sunway AC coupled inverter (3-12kW) is suitable for three-phase systems. It can be fitted alongside with string inverter, enabling you to upgrade to solar battery storage system without changing your current installation.
|
Dimensions (W x H x D, mm)
|
558*535*260
|
|
Topology
|
Tranformerles
|
|
Cooling
|
Intelligent Fan
|
|
Relative Humidity
|
0 - 100 %
|
|
Operating Temperature Range (℃）
|
- 25 to 60°C
|
|
Operating Altitude (m)
|
< 4000
|
|
Noise Emission (dB)
|
< 40
|
|
Standby Consumption (W)
|
< 5
|
|
Weight
|
29kg(15-20kw), 36kg(25-30kw)
|
|
Technical Data
|
SW15KHP3EU0
|
SW17KHP3EU0
|
SW20KHP3EU0
|
SW25KHP3EU0
|
SW30KHP3EU0
|
|
Battery Port
|
|||||
|
Battery Nominal Voltage(V)
|
500
|
400
|
500
|
500
|
550
|
|
Battery Voltage Range(V）
|
15-800
|
||||
|
Max. Charge/Discharge Current（A）
|
50
|
50
|
50
|
60
|
60
|
|
Max. Charge/Discharge Power(KW)
|
15/16.5
|
17/18.7
|
20/22
|
25/27.5
|
30/33
|
|
Charging Curve
|
3 Stages
|
||||
|
Compatible Battery Type
|
Li-ion / Sodium-ion ba
|
||||
|
AC Grid
|
|||||
|
Nominal AC Output Power(kW)
|
15
|
17
|
20
|
25
|
30
|
|
Max. AC Input/Output Power (kVA)
|
22.5/15
|
25.5/17
|
30/20
|
37.5/25
|
45/30
|
|
Max. AC Output Current(A)
|
27
|
30
|
32
|
40
|
48
|
|
Nominal AC Voltage(V)
|
230 / 400
|
||||
|
Nominal AC Frenquency (Hz)
|
50 / 60
|
||||
|
Power Factor
|
1（- 0.8 - 0.8）adjustable
|
||||
|
Current THD (%)
|
< 3
|
||||
|
AC Load Output (Back-up)
|
|||||
|
Nominal Output Power (VA)
|
15000
|
17000
|
20000
|
25000
|
30000
|
|
Nominal Output Voltage(V)
|
230 / 400
|
||||
|
Nominal Output Frequency(Hz)
|
50 / 60
|
||||
|
Nominal Output Current (A)
|
21.8
|
24.8
|
29
|
36.3
|
43.5
|
|
Peak Output Power
|
16500VA, 60s
|
18700VA,
60s
|
22000VA,
60s
|
27500VA,
60s
|
33000VA,
60s
|
|
THDV (with linear load)
|
< 3 %
|
||||
|
Switching Time (ms)
|
< 10
|
||||

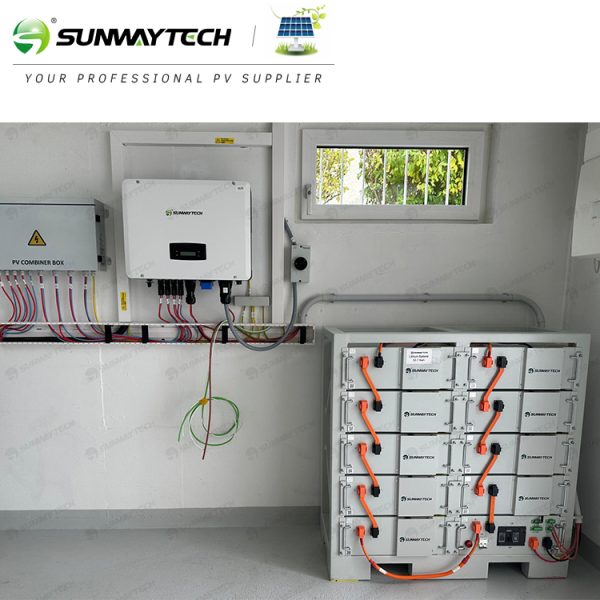

Retrofitting Storage Solution on Existing Solar System:
