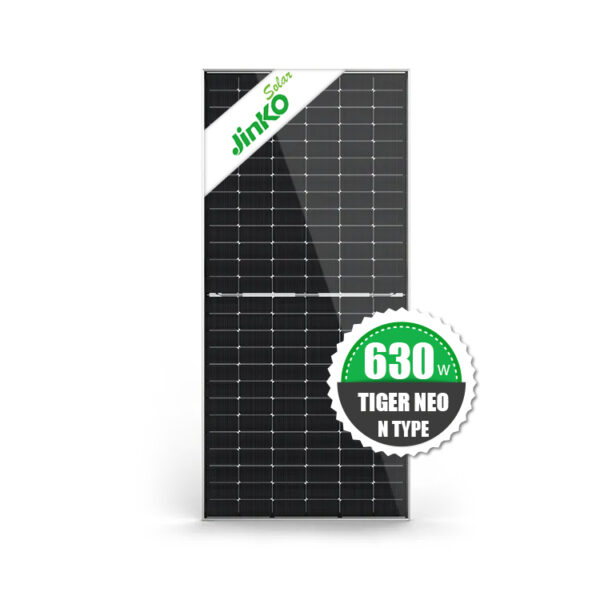

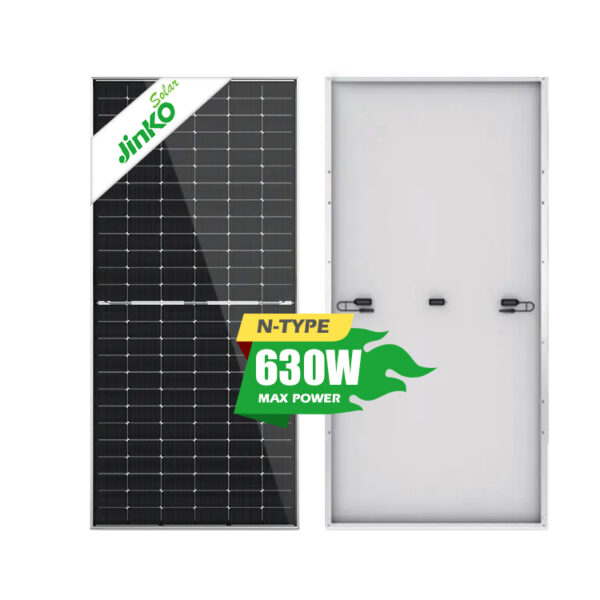

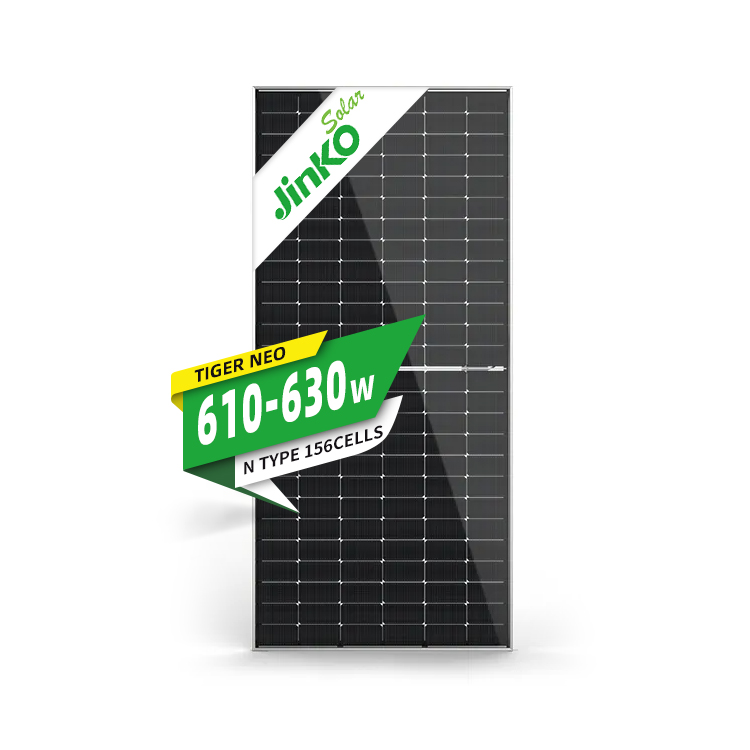

Sunway 156cells 182mm 610w 630w N Type Monocrystalline Half Cell Solar Panel

Sunway 156cells 182mm 610w 630w N Type Monocrystalline Half Cell Solar Panel

Hlaf Cell Solar Panel:

High power 600watt solar panel 610w 620w 630w mono photovoltaic module pv solar panel 610w

Model Number:JKM610N-78HL4
Power Range:610W-630W
Dimensions:2465mm*1134mm*35mm
Weight:30.6kg
Certificate:CE/TUV
Cell Type
N type Mono-crystalline
No.of Half-cells
156 (2*78)
Dimensions
2456*1134*35mm (97.05*44.65*1.38 inch)
Weight
30.6kg (67.46 lbs)
Front Glass
3.2mm,Anti-Reflection Coating,
High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length

Advantages of Tiger Neo N-type 78HL4-(V)

*Better light trapping and current collection to improve module power output and reliability
*The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID
*Certified to wishstand:wind load (2400 Pascal) and snow load (5400 Pascal)
*Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
Module Type
JKM610N-78HL4
JKM610N-78HL4-V
JKM615N-78HL4
JKM615N-78HL4-V
JKM620N-78HL4
JKM620N-78HL4-V
JKM625N-78HL4
JKM625N-78HL4-V
JKM630N-78HL4
JKM630N-78HL4-V

STC
NOCT
STC
NOCT
STC
NOCT
STC
NOCT
STC    NOCT
Maximum Power Pmax.(Wp)
610
459
615
462
620
466
625
470
630     474
Maximum Power Vmp(V)
45.59
42.28
45.69
42.39
45.79
42.50
45.92
42.61
46.02    42.72
Maximum Power Imp(A)
13.38
10.85
13.46
10.91
13.54
10.97
13.61
11.03
13.69    11.09
Open-circuit Voc(v)
55.25
52.48
55.40
52.62
55.55
52.77
55.70
52.91
 55.85    53.05
Short-circuit Isc(A)
14.11
11.39
14.18
11.45
14.25
11.50
14.32
11.56
 14.39    11.62
Module Efficiency
21.82%(STC)
22.00%(STC)
22.18%(STC)
22.36%(STC)
22.54%(STC)
Operating Temperature(℃): -40℃~+85℃
Maximum System Voltage: 1000/1500VDC (IEC)
Maximum Series Fuse Rating: 25A
Power Tolerance: 0~+3%

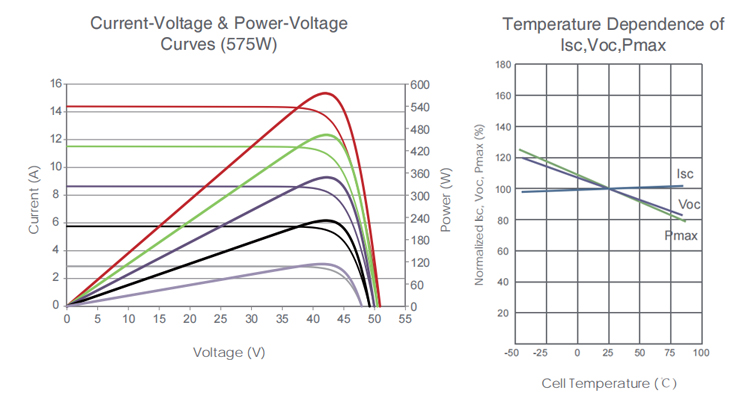

Temperature Coefficients of Pmax: -0.30%/℃
Temperature Coefficients of Voc: -0.25/℃
Temperature Coefficients of Isc: 0.046%/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
