Sunway 144cells 182mm 565w 585w N Type Monocrystalline Half Cell Solar Panel

Sunway 144cells 182mm 565w 585w N Type Monocrystalline Half Cell Solar Panel

Hlaf Cell Solar Panel:

High power 500watt solar panel 565w 580w 585w mono photovoltaic module pv solar panel 565w

Model Number:JKM565N-72HL4
Power Range:565W-585W

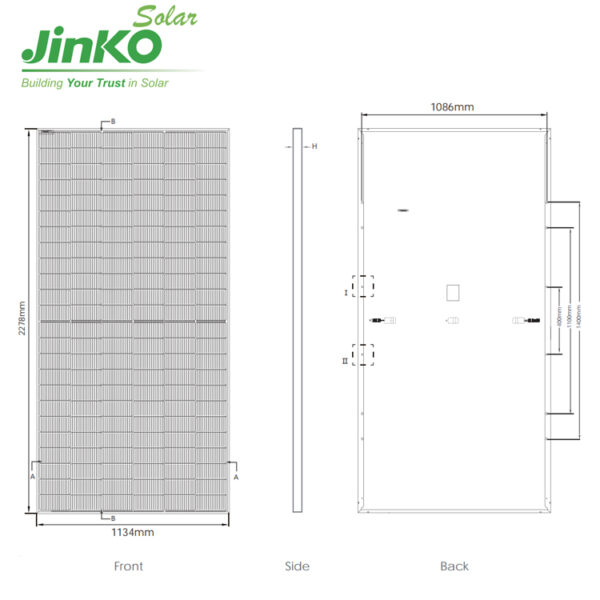

Dimensions:2278mm*1134mm*35mm
Weight:28kg
Certificate:CE/TUV

Cell Type
N type Mono-crystalline
No.of Half-cells
144 (6×24)
Dimensions
2278*1134*35mm (89.69*44.65*1.38 inch)
Weight
28kg (61.73 lbs)
Front Glass
3.2mm,Anti-Reflection Coating,
High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length

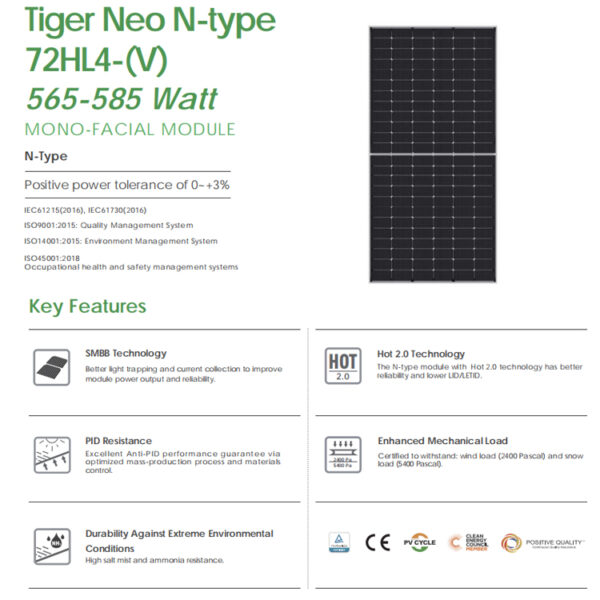

Advantages of Tiger Neo N-type 72HL4-(V)
*Better light trapping and current collection to improve module power output and reliability
*The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID
*Certified to wishstand:wind load (2400 Pascal) and snow load (5400 Pascal)
*Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
Module Type
JKM565N-72HL4
JKM565N-72HL4-V
JKM570N-72HL4
JKM570N-72HL4-V
JKM575N-72HL4
JKM575N-72HL4-V
JKM580N-72HL4
JKM580N-72HL4-V
JKM585N-72HL4
JKM585N-72HL4-V

STC
NOCT
STC
NOCT
STC
NOCT
STC
NOCT
   STC    NOCT
Maximum Power Pmax.(Wp)
565
425
570
429
575
432
580
436
585     440
Maximum Power Vmp(V)
41.92
39.38
42.07
39.51
42.22
39.60
42.37
39.69
 42.52   39.81
Maximum Power Imp(A)
13.48
10.79
13.55
10.85
13.62
10.92
13.69
10.99
13.76    11.05
Open-circuit Voc(v)
50.60
48.06
50.74
48.20
50.88
48.33
51.02
48.46
51.16    48.60
Short-circuit Isc(A)
14.23
11.49
14.31
11.55
14.39
11.62
14.47
11.68
14.55    11.75
Module Efficiency
21.87(STC)
22.07%(STC)
22.26%(STC)
22.45(STC)
22.65%(STC)
Operating Temperature(℃): -40℃~+85℃
Maximum System Voltage: 1000/1500VDC (IEC)
Maximum Series Fuse Rating: 25A
Power Tolerance: 0~+3%
Temperature Coefficients of Pmax: -0.30%/℃
Temperature Coefficients of Voc: -0.25/℃
Temperature Coefficients of Isc: 0.046%/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
