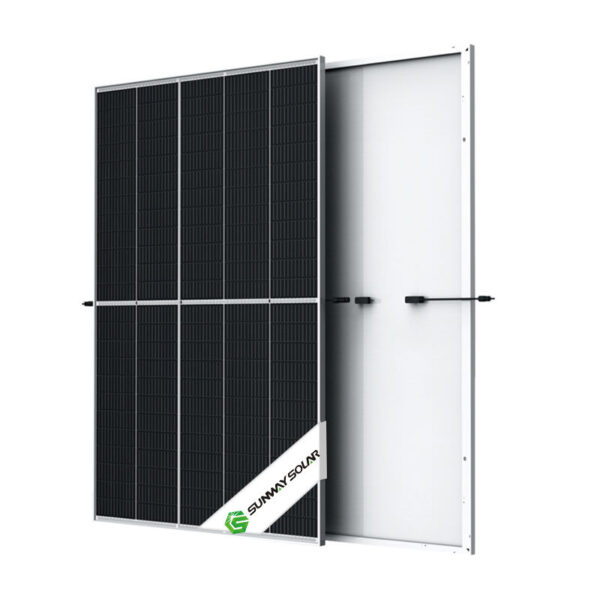

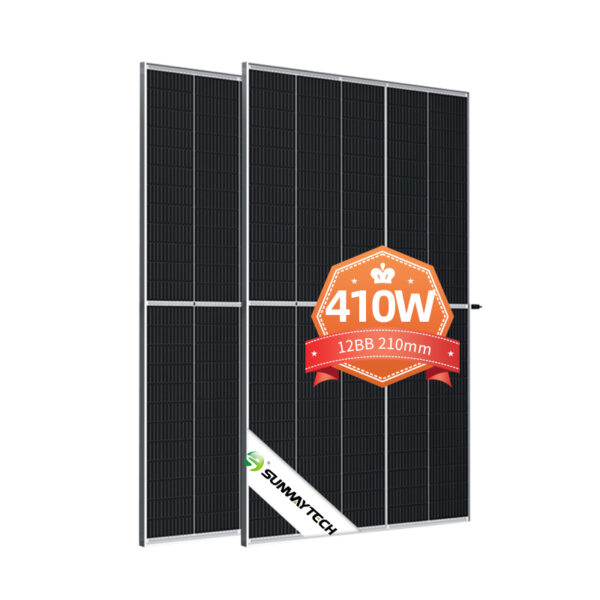

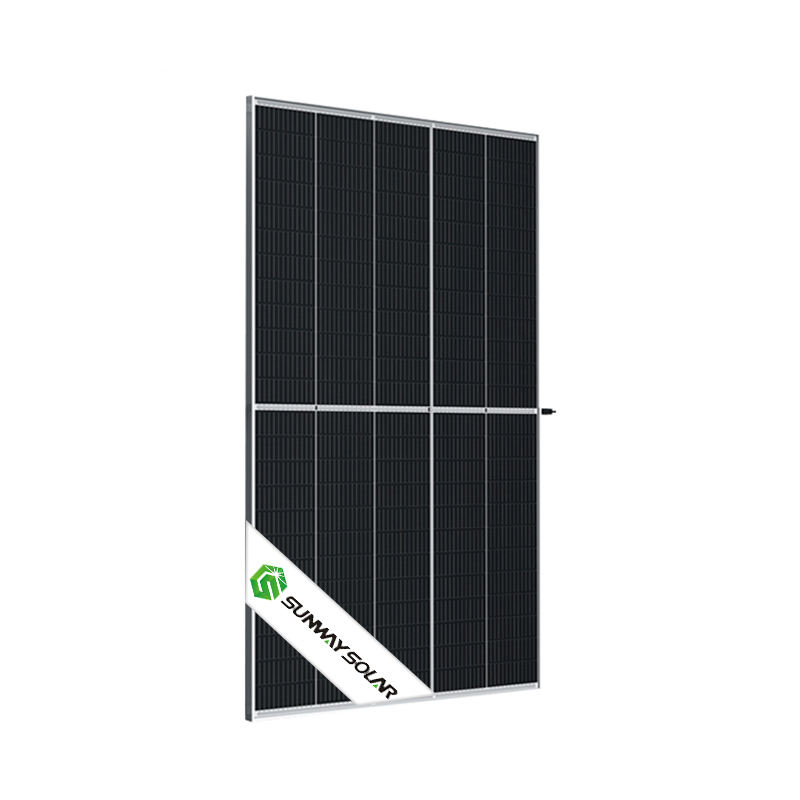

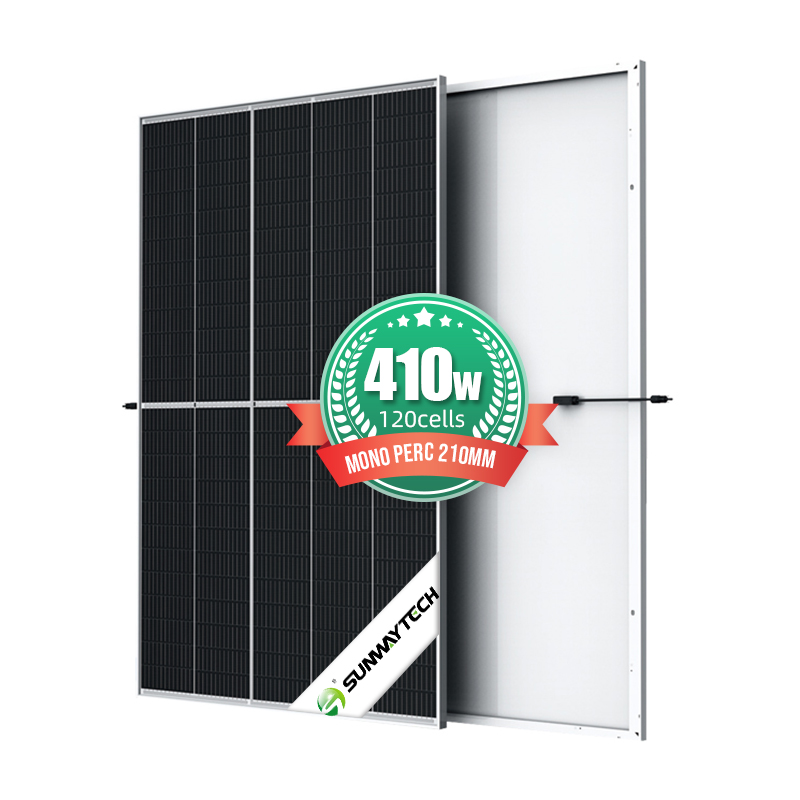

Sunway 120cells 166mm 385w 400w 410w Monocrystalline PERC Solar Panel
| Model Number: | SW410M-120 |
| Power Range： | 385W-410W |
| Dimensions: | 1719*1140*35mm |
| Weight: | 22kg |
| Certificate: | CE/TUV |
 |
||
| Glass by XINYI,SG CNBM Anti-reflective glass | 21.23% Higher Efficiency Cell by Tier 1 Brand | Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame |
 |
||
| Waterproof Labels Product by Waterproof Labels Sunway/OEM | Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness | PV Connector by TL, QC SolarMC4 4mm Qualified cable |
|
Electrical Parameters
|
|||||
|
Module
|
SW390M-120~SW410M-120
|
||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
||||
|
Maximum Power Pmax(W)
|
390
|
395
|
400
|
405
|
410
|
|
Maximum Power Voltage(Vmp/V)
|
33.80
|
34.00
|
34.20
|
34.40
|
34.60
|
|
Maximum Power Current(Imp/A)
|
11.54
|
11.62
|
11.70
|
11.77
|
11.85
|
|
Open Circuit Voltage-(Voc/V)
|
40.80
|
41.00
|
41.20
|
41.40
|
41.60
|
|
Short Circuit Current(Isc/A)
|
12.14
|
12.21
|
12.28
|
12.34
|
12.41
|
|
Module Effciency (%)
|
20.30
|
20.50
|
20.80
|
21.10
|
21.32
|
|
Power Tolerance (W)
|
0 ~ +5W
|
||||
|
Temperature Coefficient of Isc(αIsc)
|
+0.04%/℃
|
||||
|
Temperature Coefficient of Voc (βVoc)
|
-0.25%/℃
|
||||
|
Temperature Coefficient of Pmax (γPmp)
|
-0.34%/℃
|
||||
|
STC
|
Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5
|
||||
