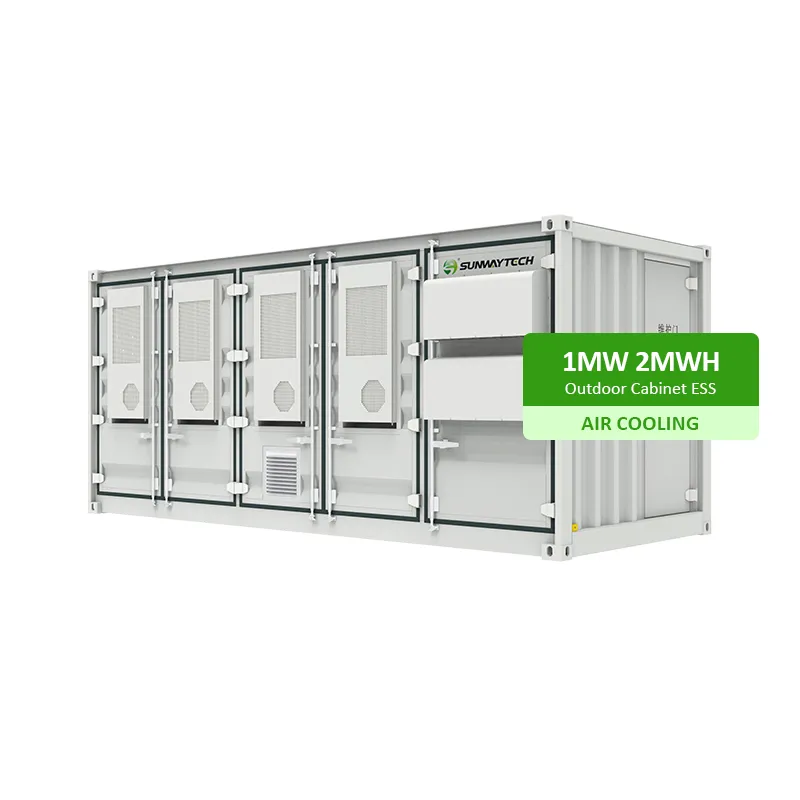

| Model | SW-20C-1000(2MWh)-A |
| DC Side Parameters | |
| Operating Voltage Range | 580~1000V |
| Maximum DC Current | 200A*8 |
| Compatible Batteries | Lithium-ion/Lead-acid/Photovoltaic modules |
| Charging Method | Follows BMS commands/Three-stage/MPPT |
| Operating Mode | Constant current, constant power, MPPT, AC voltage source, DC voltage source |
| AC Side Parameters (Grid-Connected) | |
| Rated/Maximum AC Power | 1000/1100 kW |
| Rated AC Current | 180A*8 |
| Rated AC Voltage | 400 V, 3W + PE |
| Rated AC Frequency | 50/60 Hz±5Hz |
| Total Harmonic Distortion (THDi) | <3% (rated power) |
| Power Factor | -1 leading to +1 lagging |
| Battery Side Parameters | |
| Battery Rated Capacity | 253.2 kWh*8 |
| Battery Rated Voltage | 806.4 V |
| Battery Voltage Range | 705.6~907.2 V |
| Number of Battery String Groups | 8P*18S*14S |
| Compatible Batteries | LFP |
| Cell Capacity | 314Ah |
| General Parameters | |
| Protection Rating | IP54 |
| Operating Temperature | -25℃~60℃(derating above 45℃) |
| Relative Humidity | 0~95% (No condensation) |
| Fire Suppression System | Perfluorohexane/Heptafluoropropane pipe-type fire suppression system |

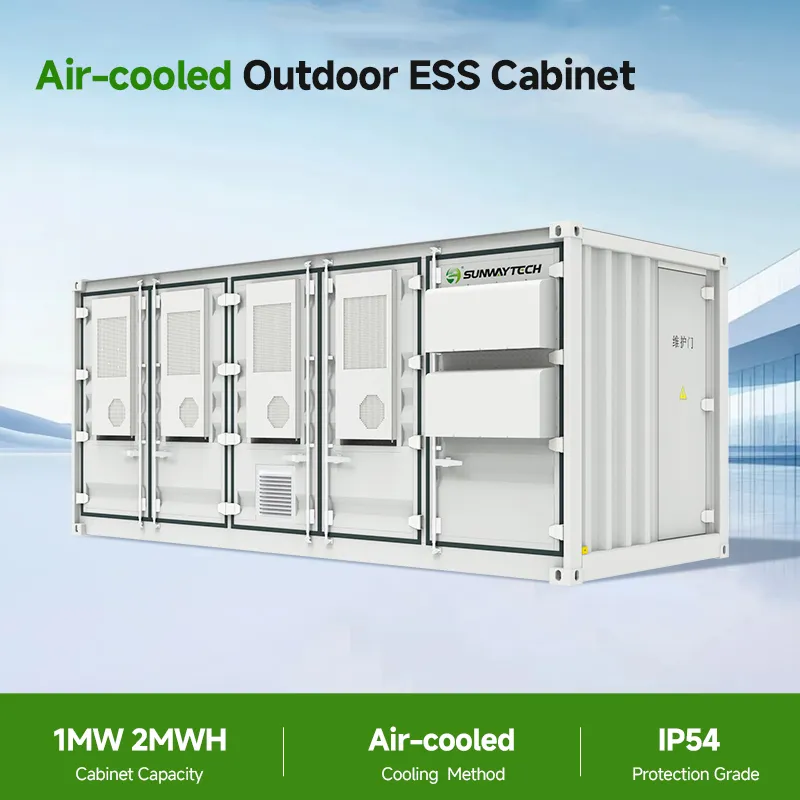

| Battery Compartment Cooling Method | Air conditioning and refrigeration |
| Electrical Compartment Cooling Method | Intelligent air cooling |
| Altitude | 3000m (Derating above 2000m) |
| Communication Interface | RS485 /CAN |
| Dimensions (WxDxH)mm | 6058*2438*2896mm |
| Weight (approx.) | 28.5t |
