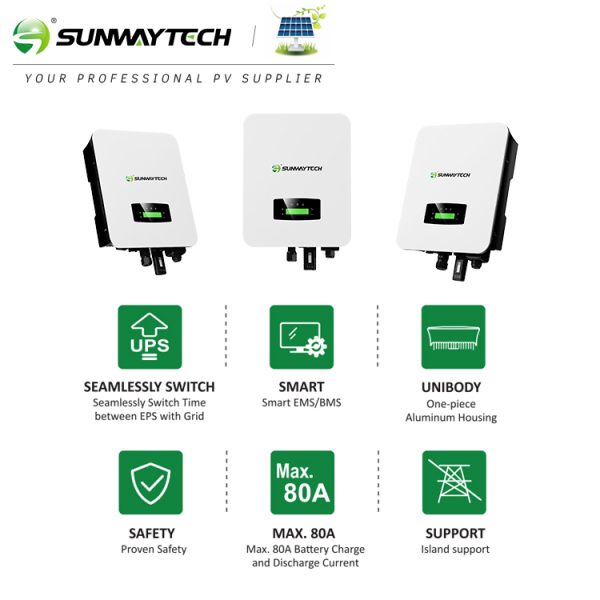

97.6% High Frequency lsolation Charge and Discharge Efficiency
Integrated WlFl Monitoring & Remote Parameter Setting
Plug & Play, Easy Maintenance
IP 65 Water-resistant & Dustproof

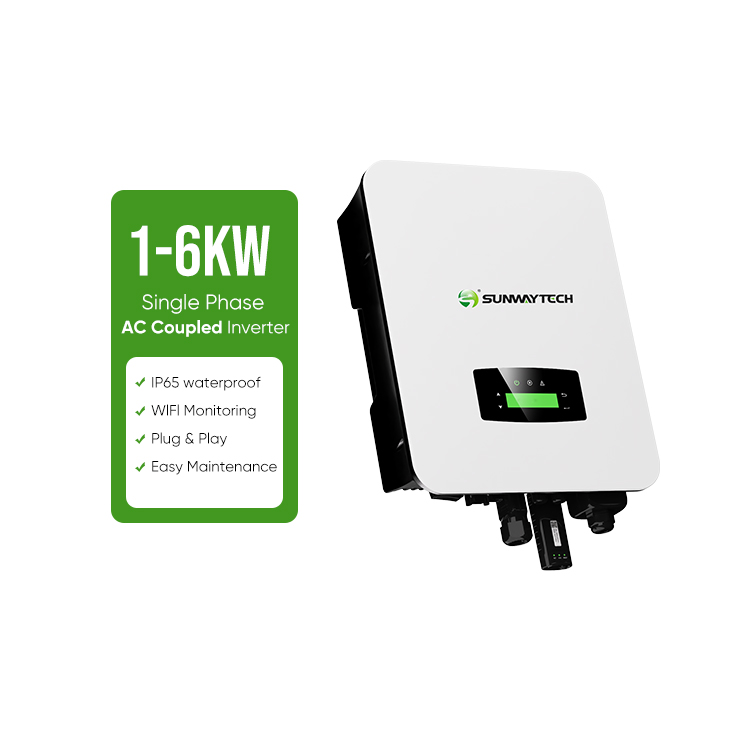

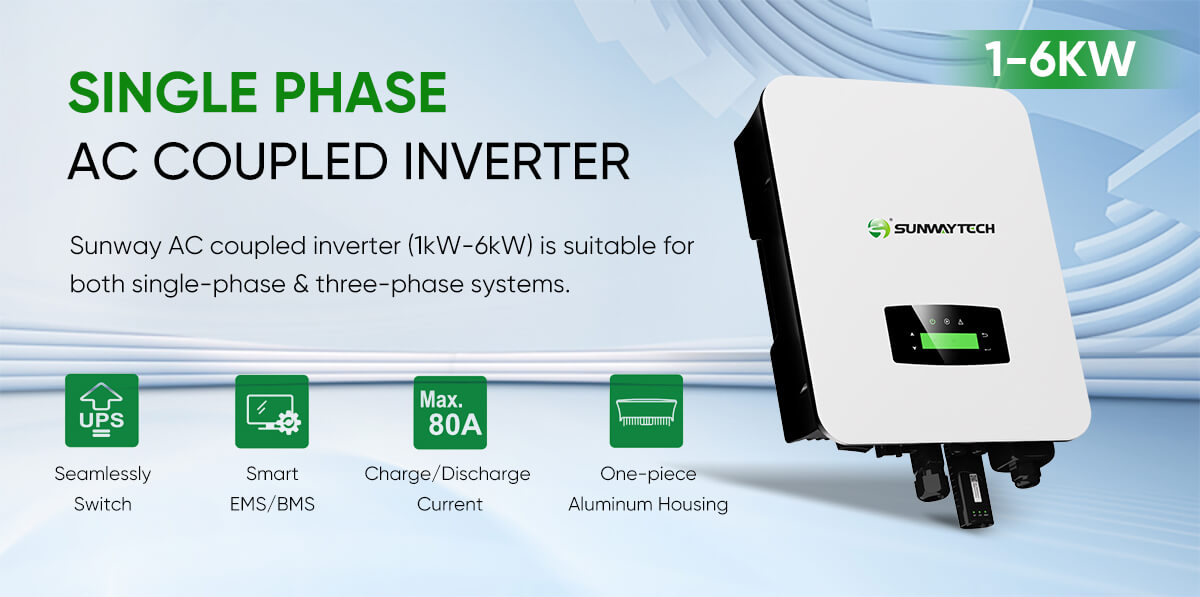

Sunway AC coupled inverter (1kW-6kW) is suitable for both single-phase & three-phase systems. It can be fitted alongside with string inverter, enabling you to upgrade to solar battery storage system without changing your current installation.
|
Dimensions (W x H x D, mm)
|
370 x 535 x 192
|
|
Topology
|
Tranformerles
|
|
Cooling
|
Intelligent Fan
|
|
Relative Humidity
|
0 - 100 %
|
|
Operating Temperature Range (℃）
|
- 25 to 60
|
|
Operating Altitude (m)
|
< 4000
|
|
Noise Emission (dB)
|
< 25
|
|
Standby Consumption (W)
|
< 10
|
|
Mounting
|
Wall Bracket
|
|
Weight
|
18.5kg(1-3.6kw), 20.5kg(4-6kw)
|
|
Technical Data
|
SW1KLP1EU0
|
SW1.5KLP1EU0
|
SW2KLP1EU0
|
SW2.5KLP1EU0
|
SW3KLP1EU0
|
|
Battery Port
|
|||||
|
Max. Charge/Discharge Power (kW)
|
1
|
1.5
|
2.0
|
2.5
|
3.0
|
|
Max. Charge/Discharge Current (A)
|
25
|
40
|
50
|
63
|
80
|
|
Battery Normal Voltage (V)
|
51.2
|
||||
|
Battery Voltage Range (V)
|
40-60
|
||||
|
Battery Type
|
Li-ion/lead-acid etc.
|
||||
|
AC Grid
|
|||||
|
Max Continuous Current (A)
|
5.0
|
7.0
|
10.0
|
12.0
|
14.0
|
|
Max Continuous Power (kVA)
|
1.0
|
1.5
|
2.0
|
2.5
|
3.0
|
|
Nominal Grid Current(A)
|
4.6/4.4
|
6.9/6.6
|
9.1/8.7
|
11.4/10.9
|
13.7/13.1
|
|
Nominal Grid Voltage (V)
|
198 to 242 @ 220 / 207 to 253 @ 230
|
||||
|
Nominal Grid Frequency (Hz)
|
50/60
|
||||
|
Power Factor
|
0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)
|
||||
|
Current THD (%)
|
< 3
|
||||
|
AC Load Output
|
|||||
|
Max Continuous Current (A)
|
5.0
|
7.0
|
10.0
|
12.0
|
14.0
|
|
Max Continuous Power (kVA)
|
1.0
|
1.5
|
2.0
|
2.5
|
3.0
|
|
Max Peak Current (A) (10min)
|
6.9/6.6
|
10.5/10.0
|
13.7/13.1
|
17.1/16.4
|
20.5/19.6
|
|
Max Peak Power (kVA) (10min)
|
1.5
|
2.3
|
3.0
|
3.75
|
4.5
|
|
Nominal AC Voltage L-N (V)
|
220 / 230
|
||||
|
Nominal AC Frequency (Hz)
|
50 / 60
|
||||
|
Switching Time (ms)
|
Seamless
|
||||
|
Voltage THD (%)
|
< 3
|
||||
|
Technical Data
|
SW3.6KLP1EU0
|
SW4KLP1EU0
|
SW4.6KLP1EU0
|
SW5KLP1EU0
|
SW5.5KLP1EU0
|
SW6KLP1EU0
|
|
Battery Port
|
||||||
|
Max. Charge/Discharge Power (kW)
|
3.6
|
4.0
|
4.6
|
5.0
|
5.5
|
6.0
|
|
Max. Charge/Discharge Current (A)
|
80
|
120
|
120
|
120
|
120
|
120
|
|
Battery Normal Voltage (V)
|
51.2
|
|||||
|
Battery Voltage Range (V)
|
40-60
|
|||||
|
Battery Type
|
Li-ion/lead-acid etc.
|
|||||
|
AC Grid
|
||||||
|
Max Continuous Current (A)
|
17.0
|
19.0
|
22.0
|
23.0
|
26.0
|
28.0
|
|
Max Continuous Power (kVA)
|
3.6
|
4.0
|
4.6
|
5.0
|
5.5
|
6.0
|
|
Nominal Grid Current(A)
|
36.4/15.7
|
18.2/17.4
|
21.0/20.0
|
22.8/21.8
|
25.0/24.0
|
27.3/26.1
|
|
Nominal Grid Voltage (V)
|
198 to 242 @ 220 / 207 to 253 @ 230
|
|||||
|
Nominal Grid Frequency (Hz)
|
50 / 60
|
|||||
|
Power Factor
|
0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)
|
|||||
|
Current THD (%)
|
< 3
|
|||||
|
AC Load Output
|
||||||
|
Max Continuous Current (A)
|
17.0
|
19.0
|
22.0
|
23.0
|
26.0
|
28.0
|
|
Max Continuous Power (kVA)
|
3.6
|
4.0
|
4.6
|
5.0
|
5.5
|
6.0
|
|
Max Peak Current (A) (10min)
|
24.6/23.5
|
27.3/26.1
|
31.4/30.0
|
34.1/32.7
|
37.8/36.1
|
41.0/39.2
|
|
Max Peak Power (kVA) (10min)
|
5.4
|
6.0
|
6.9
|
7.5
|
8.3
|
9.0
|
|
Nominal AC Voltage L-N (V)
|
220/230
|
|||||
|
Nominal AC Frequency (Hz)
|
50/60
|
|||||
|
Switching Time (ms)
|
Seamless
|
|||||
|
Voltage THD (%)
|
< 3
|
|||||

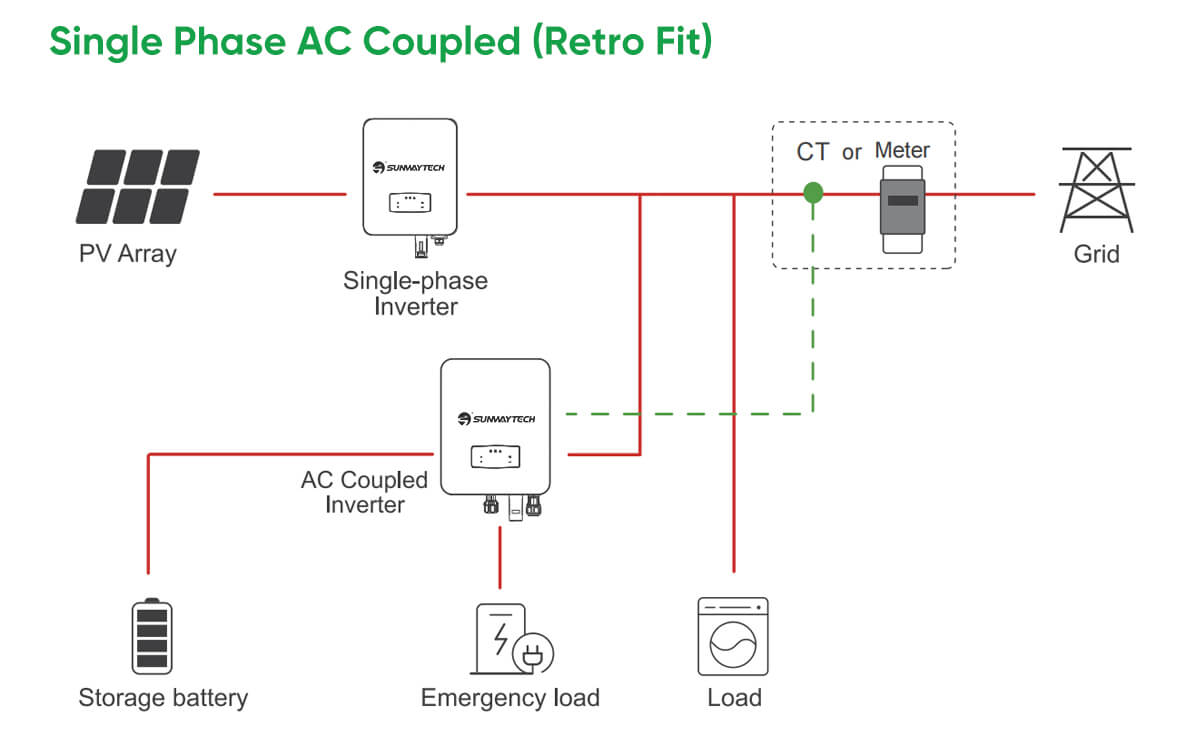

Retrofitting Storage Solution on Existing Solar System:
