Solis 80-125KW Three Phase Grid-tie Inverters

Solis 80-125KW Three Phase Grid-tie Inverters

Categories Hybrid Solar Inverter, Solis Inverter

Model Number:	Solis S6-GC(80-125)K
Brand Name	Solis
Output Voltage:	3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Size(mm):	1014 * 567 * 345
Weight(KG)：	96

Solis S6-GC(80-125)K three-phase series inverter is a new S6 models, designed for C&I and utility PV projects. it input current up to 21A, can perfectly match a variety of high-power PV panels, the maximum support 150% DC/AC ratio, while supporting PLC communication, AC and DC cable design optimization, intelligent I-V curve scanning and remote O&M functions, can effectively reduce system costs and simplify O&M, improve system efficiency, very suitable for cost reduction and efficiency of PV plant projects. moreover, the product has IP66 protection grade, and the inverter can easily cope with complex and harsh natural environments.

Models	80K	100K	110K	125K	125K-HV
Input DC
Max. input voltage	1100 V
Rated voltage	600 V				720 V
Start-up voltage	180 V
MPPT voltage range	160 - 1000 V
Max. input current	4 × (42 A / 36 A)	5 × (42 A / 36 A)
Max. short circuit current	8 × 50 A	10 × 50 A
MPPT number / Max. input strings number	8 / 16	10 / 20
Output AC
Rated output power	80 kW	100 kW	110 kW	125 kW	125kW
Max. apparent output power	88 kVA	110 kVA	121 kVA	125 kVA	137.5 kVA
Max. output power	88 kW	110 kW	121 kW	125 kW	137.5 kW
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V				3/PE, 480 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	121.6 A / 115.5 A	152.0 A / 144.3 A	167.1 A / 158.8 A	189.9 A / 180.4 A	150.4 A
Max. output current	133.7 A	167.1 A	183.8 A	189.9 A	165.4 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Efficiency
Max. efficiency	98.7%
EU efficiency	98.3%
Features
AC connection	OT terminal (max. 240 mm²)
Display	LCD

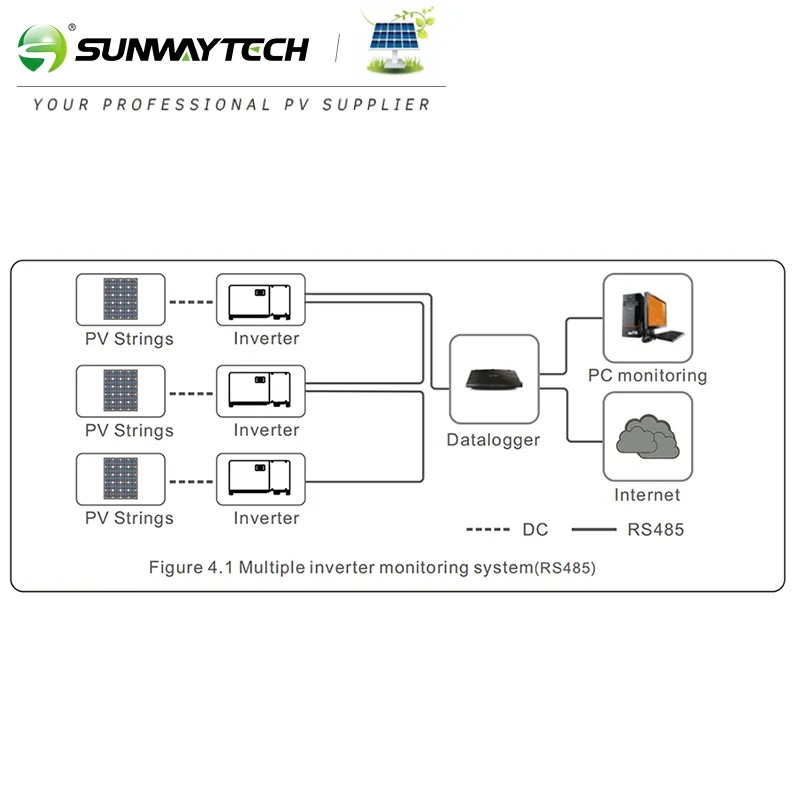

Communication	RS485, Optional: Wi-Fi, GPRS, PLC

* AI-based millisecond arc protection (AFCI)

* Integrated meteorological equipment, intelligent system inefficiency warning

* Dual independent RS485 ports, perfect adaptation to third-party integration

* Supports single and multiple genset applications without the need for an external genset controller

* Real-time photovoltaic insulation detection

* Arc fault and RSD (Rapid Shutdown) co-operation for improved fire safety (optional)

* Master-slave export power control solution, flexible and fast control, support 10 units in parallel

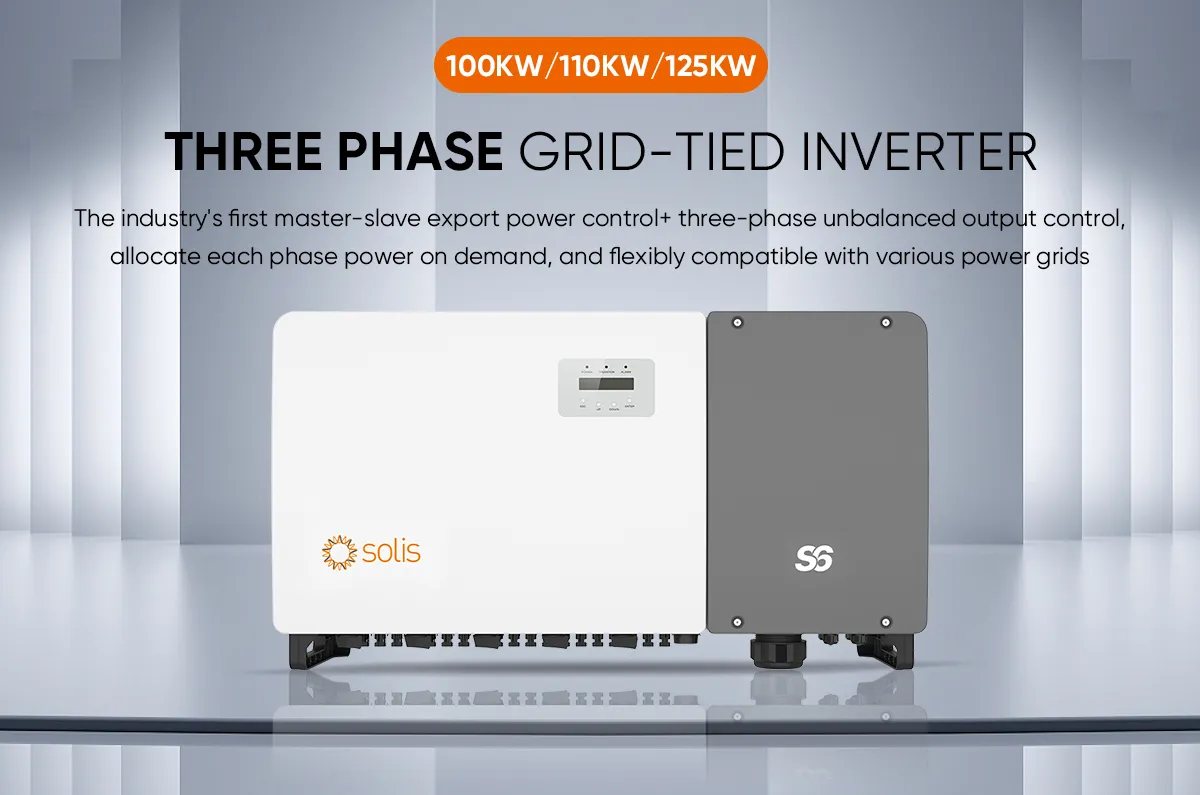

* The industry's first master-slave export power control+ three-phase unbalanced output control, allocate each phase power on demand, and flexibly compatible with various power grids (optional)
