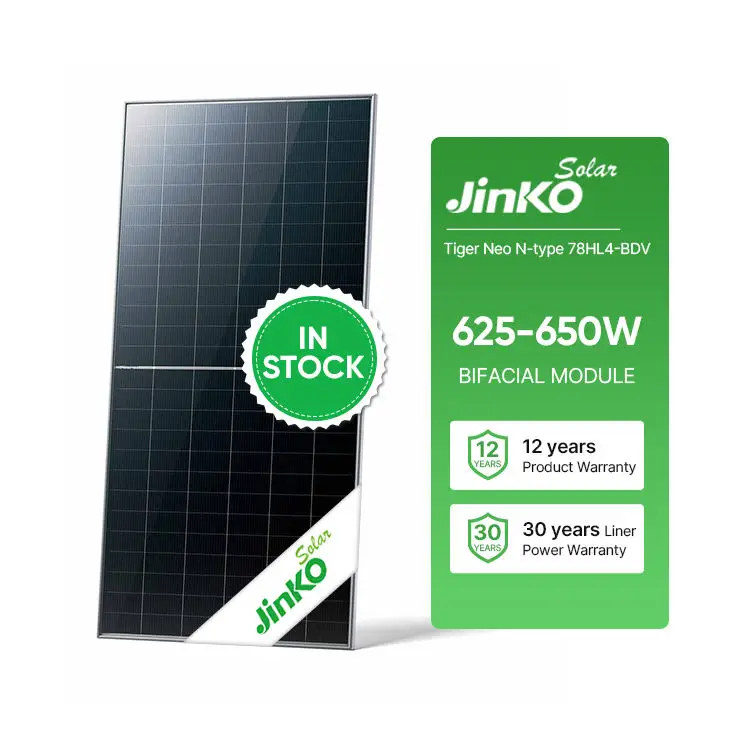

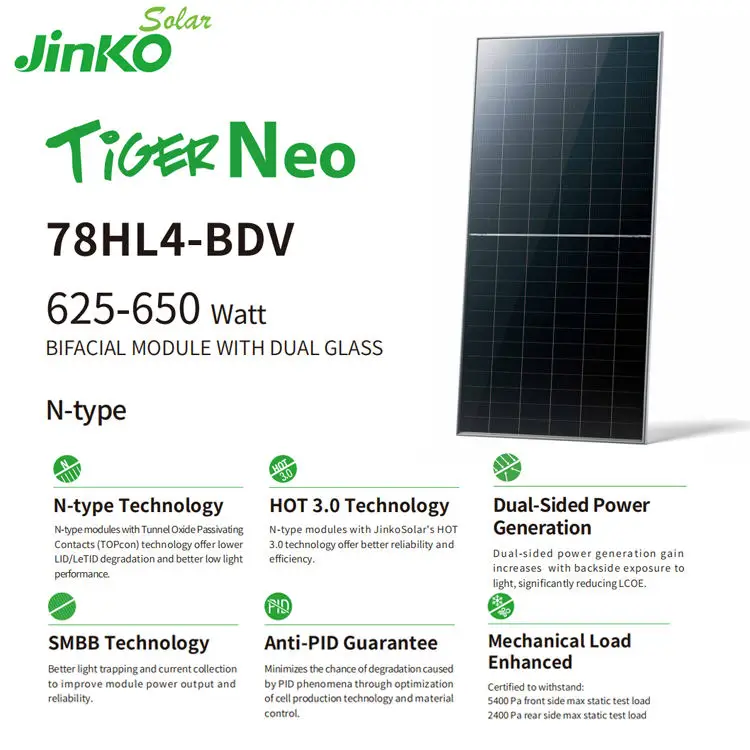

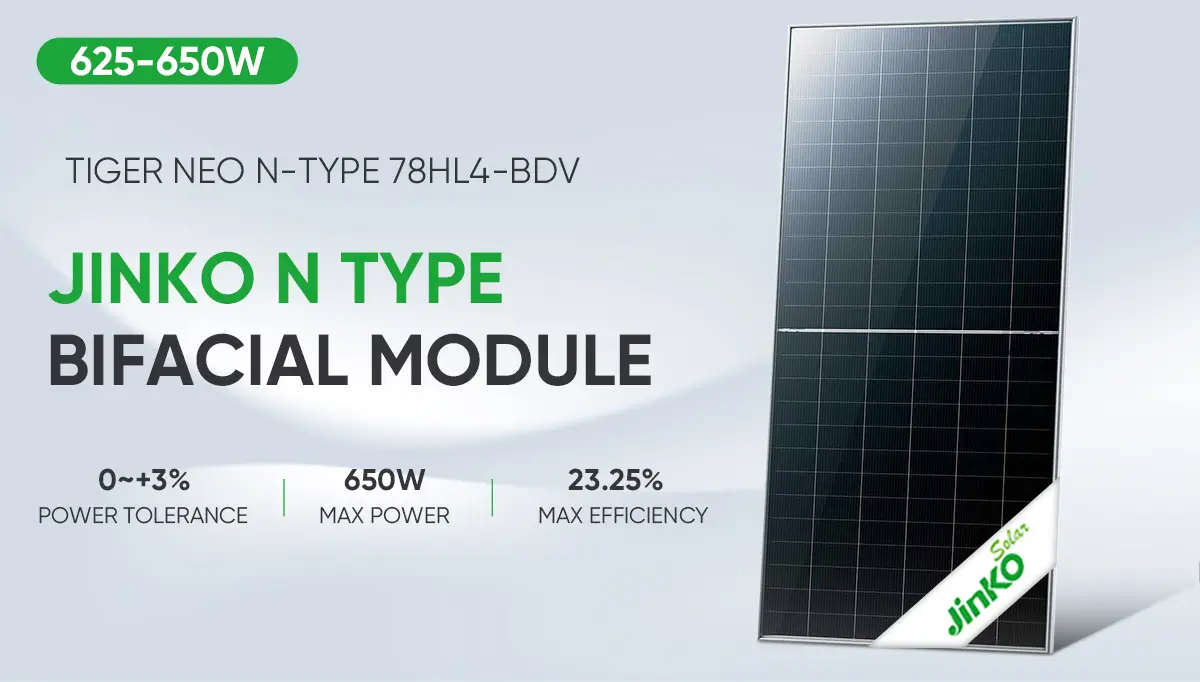

JKM625-650N-78HL4-BDV
|
Model
|
JKM625-650N-78HL4-BDV |
|
Power
|
625W-650W
|
| Weight(kg) | 34.0kg |
| Dimensions(L*W*H)(mm) | 2465*1134*30mm |
|

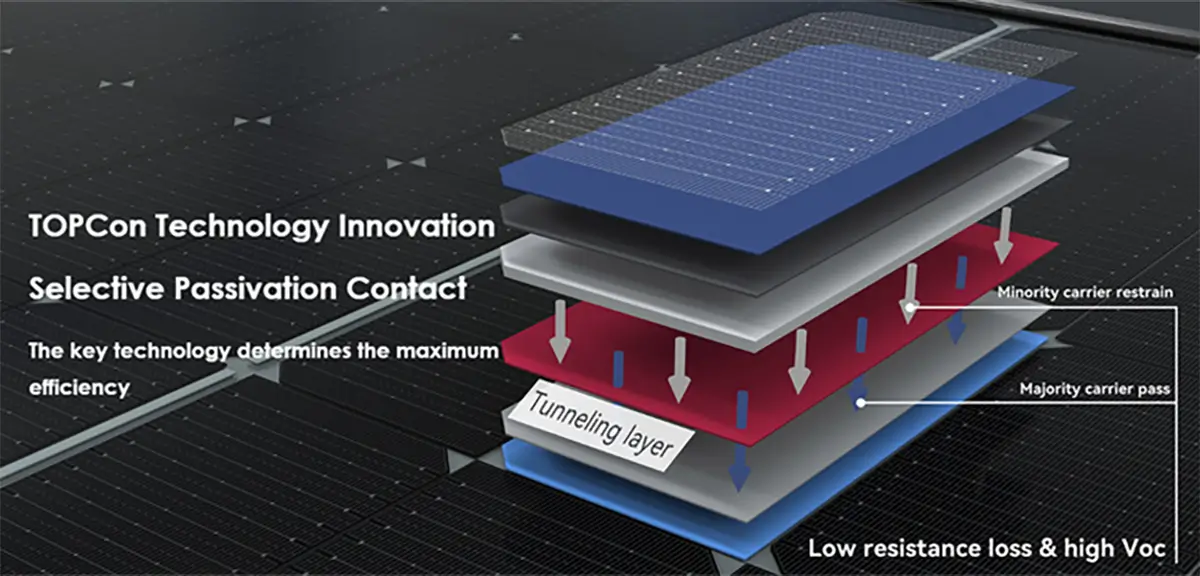

Cell Type
|
N type Mono-crystalline
|
|
No.of Half-cells
|
156（78*2）
|
|

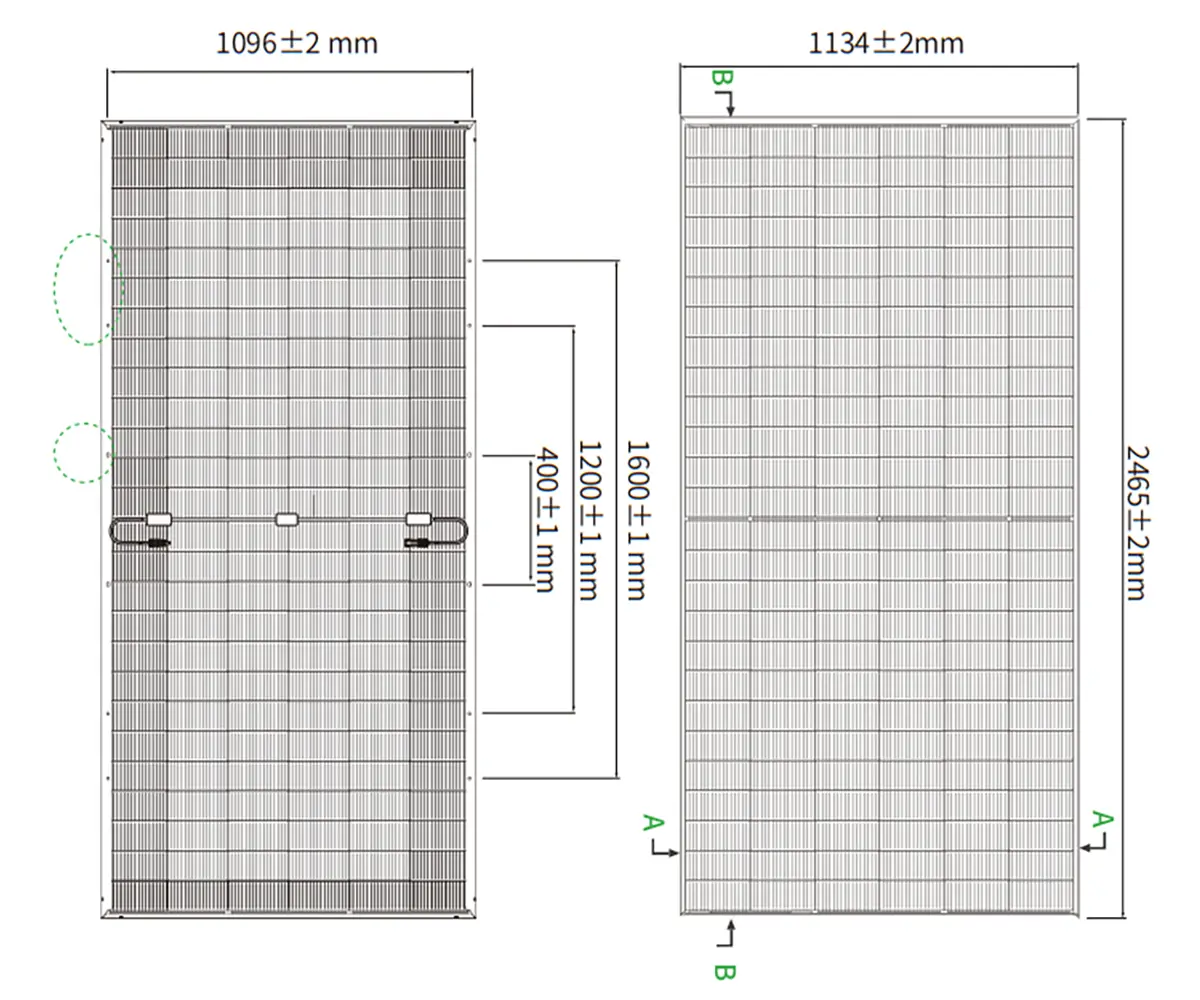

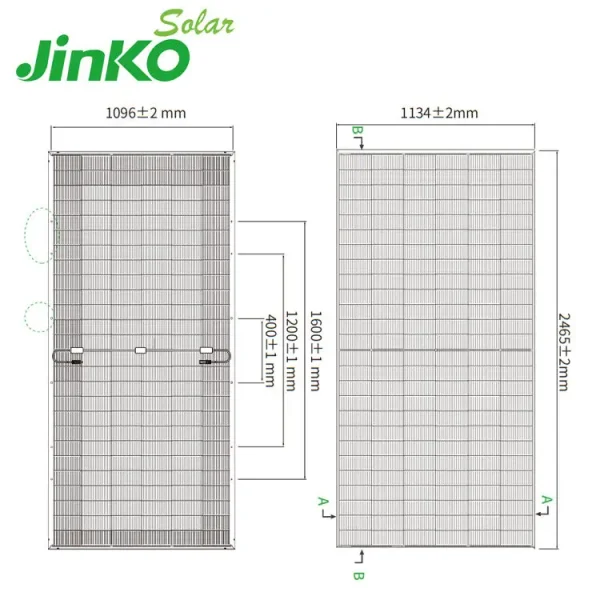

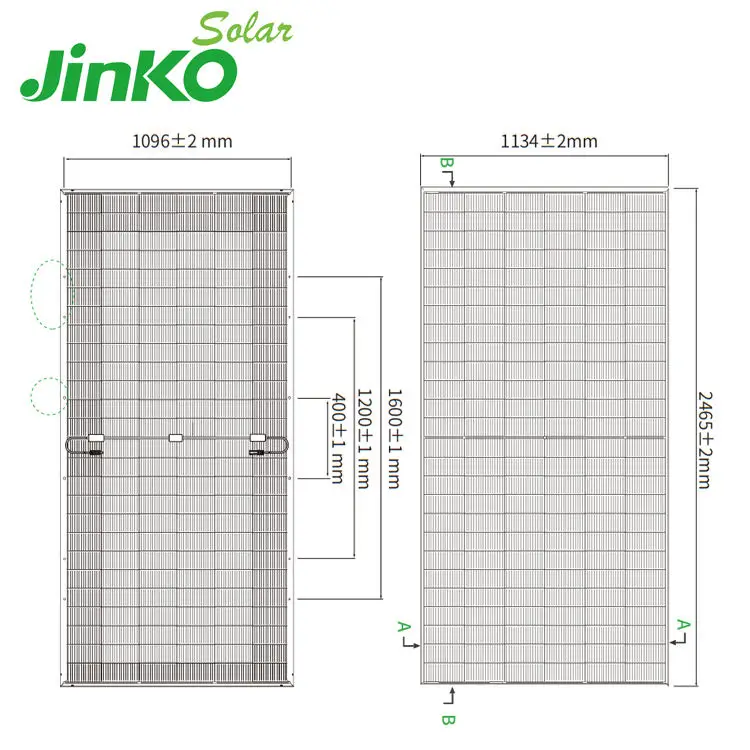

Dimensions
|
2265*1134*30mm
|
|
Weight
|
34 kg
|
|
Front Glass
|
2.0mm,Anti-Reflection Coating,
|
|
Back Glass
|
2.0mm,Heat Strengthened Glass
|
|
Frame
|
Anodized Aluminium Alloy
|
|
Junction Box
|
IP68 Rated
|
|
Protection Class
|
Class II
|
|
IEC Fire Type
|
Class C
|
|
Output Cables
|
4.0mm2(+):400mm, (-):200mm or Customized Length
|
|

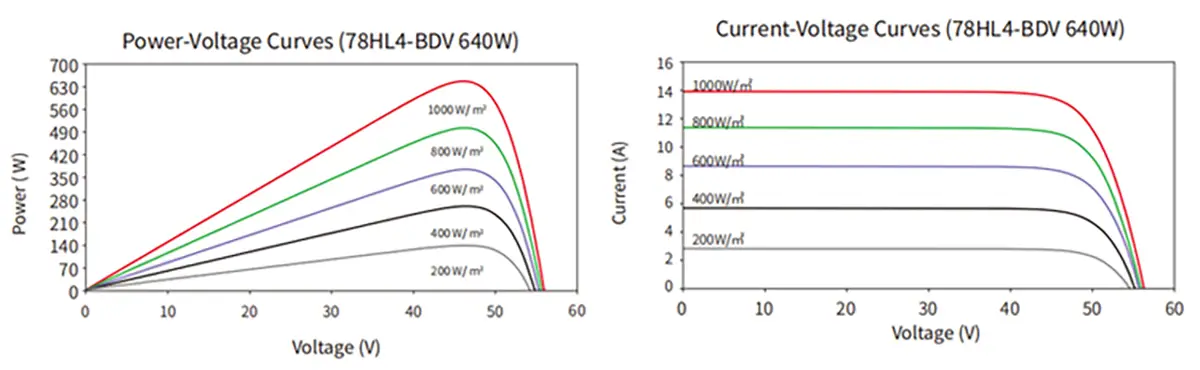

Specifications (STC)
|
||||||
|
Maximum Power - Pmax (Wp)
|
625
|
630
|
635
|
640
|
645
|
650
|
|
Maximum Power Voltage - Vmp (V)
|
47.54
|
47.70
|
47.86
|
48.02
|
48.17
|
48.33
|
|
Maximum Power Current - Imp (A)
|
13.15
|
13.21
|
13.27
|
13.33
|
13.39
|
13.45
|
|
Open-circuit Voltage - Voc (V)
|
56.95
|
57.08
|
57.21
|
57.34
|
57.47
|
57.60
|
|
Short-circuit Current - Isc (A)
|
13.80
|
13.86
|
13.92
|
13.98
|
14.04
|
14.10
|
|
Module Efficiency STC (%)
|
22.36
|
22.54
|
22.72
|
22.90
|
23.07
|
23.25
|
|
Power Tolerance
|
0 ~ + 3 %
|
|||||
|
Temperature Coefficients of Pmax
|
-0.29 %/°C
|
|||||
|
Temperature Coefficients of Voc
|
-0.25 %/°C
|
|||||
|
Temperature Coefficients of Isc
|
0.045 %/°C
|
|||||
|

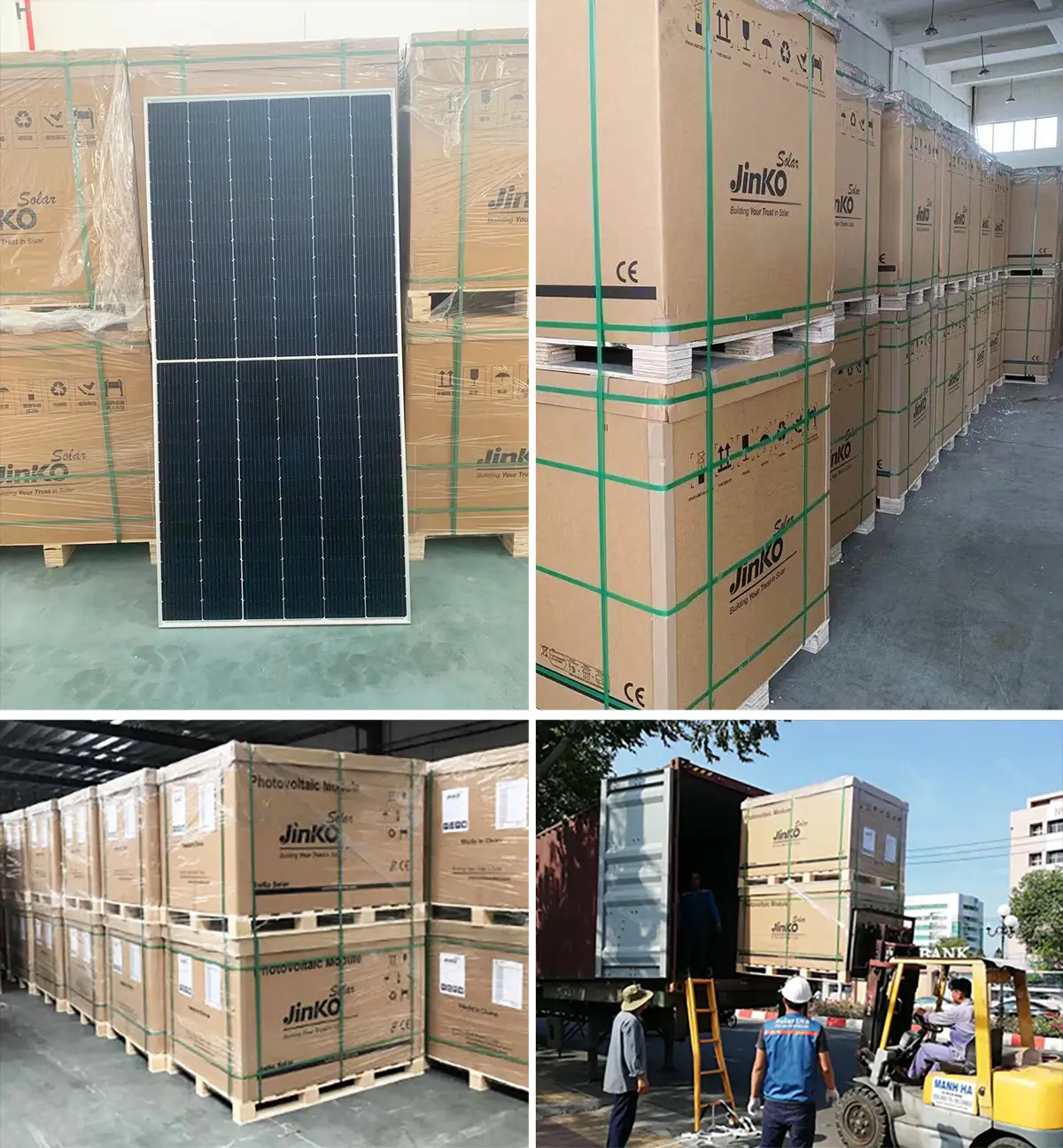

PACKAGE CONFIGURATION
|
|
|
Container
|
JKM625N-78HL4-BDV-JKM650N-78HL4-BDV
|
|
Pallet
|
36PCS
|
|
40'HQ
|
576PCS
|
