Choosing the right battery energy storage system (BESS) is not just about selecting a battery—it’s about matching the system’s size and capabilities to your energy needs, budget, and long-term goals.
An accurately sized BESS can significantly reduce energy costs, improve power reliability, and boost renewable energy performance.
So, how do you choose the right size for your energy storage system? This article explains the key factors that determine the ideal BESS size for you to get the most out of your investment.
Steps and Tips to Size the Right Battery Energy Storage System
1. Define Objectives and Use Cases
Sizing begins with knowing why the BESS is being installed. Each objective determines a different sizing approach.
For example:
- Peak shaving requires sizing based on peak load magnitude and duration.
- Backup power needs enough BESS capacity to support critical loads for several hours.
- Solar storage is sized around the surplus solar energy available daily.
- Load shifting is based on the difference between off-peak and on-peak energy use.
Identifying the primary use case ensures that the system size directly aligns with performance expectations. Without this clarity, it becomes difficult to calculate a suitable BESS capacity.
2. Assess Energy Needs and Loads
To size a BESS accurately, the first technical step is analyzing your load profile.
Key data points include:
- Average daily consumption
- Highest demand periods
- Essential loads that must stay running (for backup applications)
- Solar generation curves (if integrating PV)
These numbers determine the required energy capacity (kWh) and power output (kW). For example, if your critical load is 20 kW and you need four hours of backup, you will need a minimum of 80 kWh usable capacity—even before adding safety margins.
This stage is crucial because BESS sizing is only as accurate as your load assessment.
3. Determine Capacity and Duration
This section directly shapes the heart of BESS sizing: how much energy storage is needed and for how long.
When you calculate battery size, consider the following:
- Energy capacity (kWh): determines how long the BESS can run your loads.
- Power rating (kW): determines how many loads the BESS can support at once.
- Duration: how many hours the system must supply power.
For example, solar-heavy sites may need a larger capacity to store midday excess energy, while commercial sites focusing on peak shaving often require high power capability but shorter duration.
Creating a balance among these factors ensures the BESS delivers meaningful performance instead of running out of power too early or being oversized unnecessarily.
4. Select Technology and Components
The chosen technology directly influences the effective size of your BESS.
Lithium-ion systems, for example, offer:
- High energy density
- Long cycle life
- Stable discharge capability
- Higher usable capacity ratios
Other components also affect sizing:
- BMS (Battery Management System) determines the allowable depth of discharge.
- Inverters define how much power the system can output.
- Thermal management affects capacity retention in different climates.
Selecting the right technology ensures that the BESS’s rated capacity matches actual usable capacity—a critical distinction for accurate system sizing.
5. Economics and Efficiency Considerations
The financial aspects and system efficiency also influence how big the BESS should be. When optimizing size for cost performance, evaluate:
- Round-trip efficiency (affects real usable energy)
- Cycle life (affects long-term value)
- Levelized cost of storage (helps compare different sizes and chemistries)
Efficiency and operating economics help narrow the “ideal size” where the system provides maximum value without unnecessary capacity.
6. Planning for Future Expansion and Risk
A well-sized BESS also considers how your energy usage may change over time.
To ensure long-term sizing accuracy:
- Choose modular systems that can expand as loads grow.
- Add extra capacity to account for battery degradation.
- Reserve space for future PV expansions or added loads.
- Ensure the electrical infrastructure supports scaling.
Future-proofing prevents the system from becoming undersized as operational needs evolve.
A Simple Questionnaire to Calculate Your BESS Size
Before finalizing the size, answer these questions to achieve greater accuracy:
- What is your main use case (backup, solar storage, peak shaving, or load shifting)?
- What are your average and peak loads?
- How many hours of backup do you require?
- What percentage of solar energy do you want to store?
- Are your energy needs expected to increase?
- Do you have specific budget constraints?
- What safety or compliance requirements must be met?

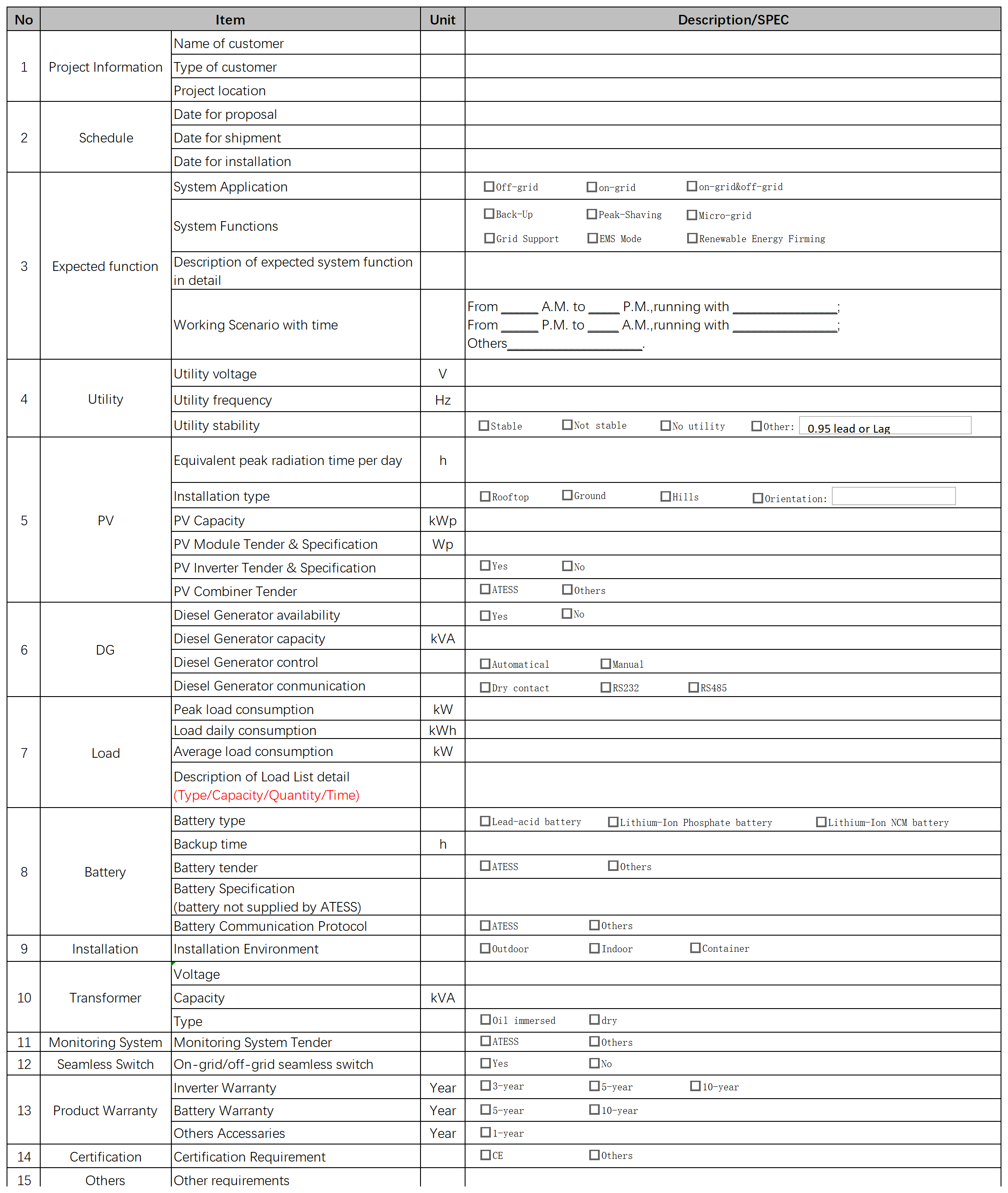

Sunway offers fully tailored guidance for our clients, as reflected in the questionnaire below. If you need more help, feel free to get in touch with our professional team here.
Why Choose Sunway for Your BESS Solutions?
Sunway specializes in delivering safe, reliable, and fully certified battery energy storage solutions for residential, commercial, and industrial applications. You can explore our commercial and industrial ESS systems and complete solar system solutions.
We help our clients size and deploy the right battery energy storage system (BESS) with flexible configurations ranging from 50 to 1000 kW and 100 to 2150 kWh. To match different project environments and performance requirements, we offer both liquid cooling and air cooling solutions. All products meet global standards with TÜV, IEC, CE, ISO, INMETRO, UL, and other certifications, ensuring safety and reliability.
Our systems are exported to 200+ countries, supported by comprehensive OEM and ODM services that allow tailored designs. This combination of certified quality, wide capacity options, and customization helps customers choose their BESS accurately and confidently.
Wrapping Up
Selecting the right battery energy storage system size requires careful analysis of energy needs, load patterns, use cases, technology choices, and long-term goals. When you fully understand these factors, you can confidently calculate battery size and choose a BESS capacity that delivers maximum performance and ROI.
If you’re planning a new energy storage project, Sunway could be your trustworthy partner. With professional guidance and a well-designed system, you can unlock safer, smarter, and more efficient energy storage for years to come.
