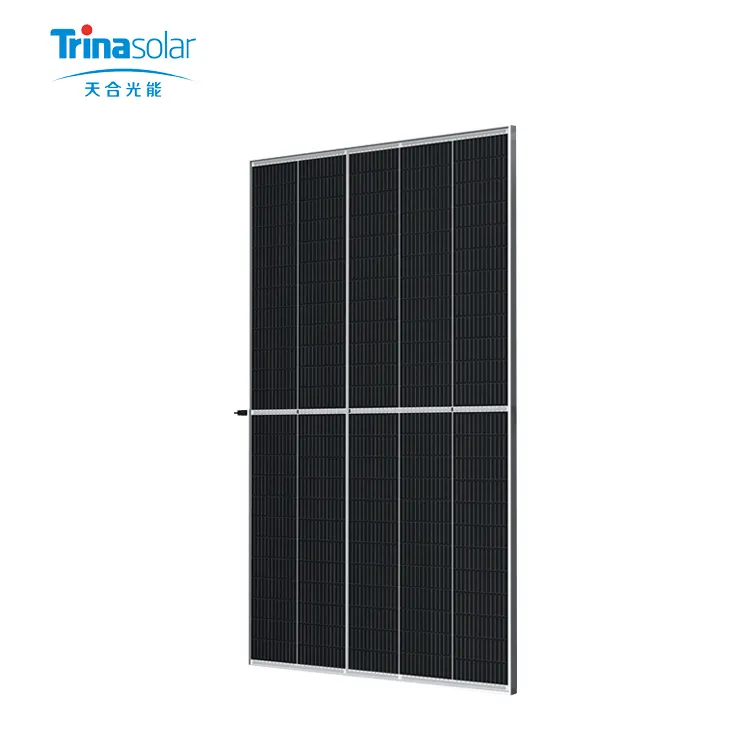

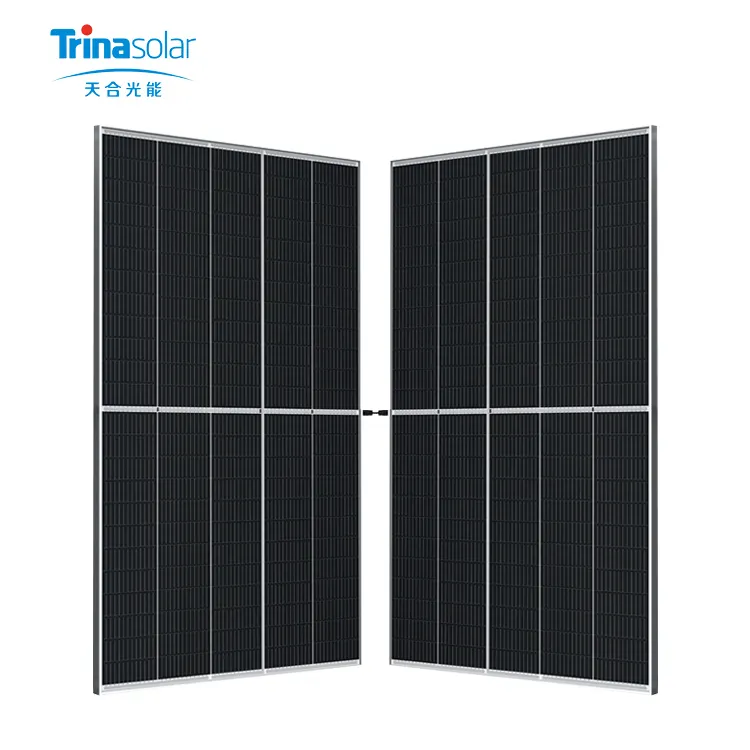

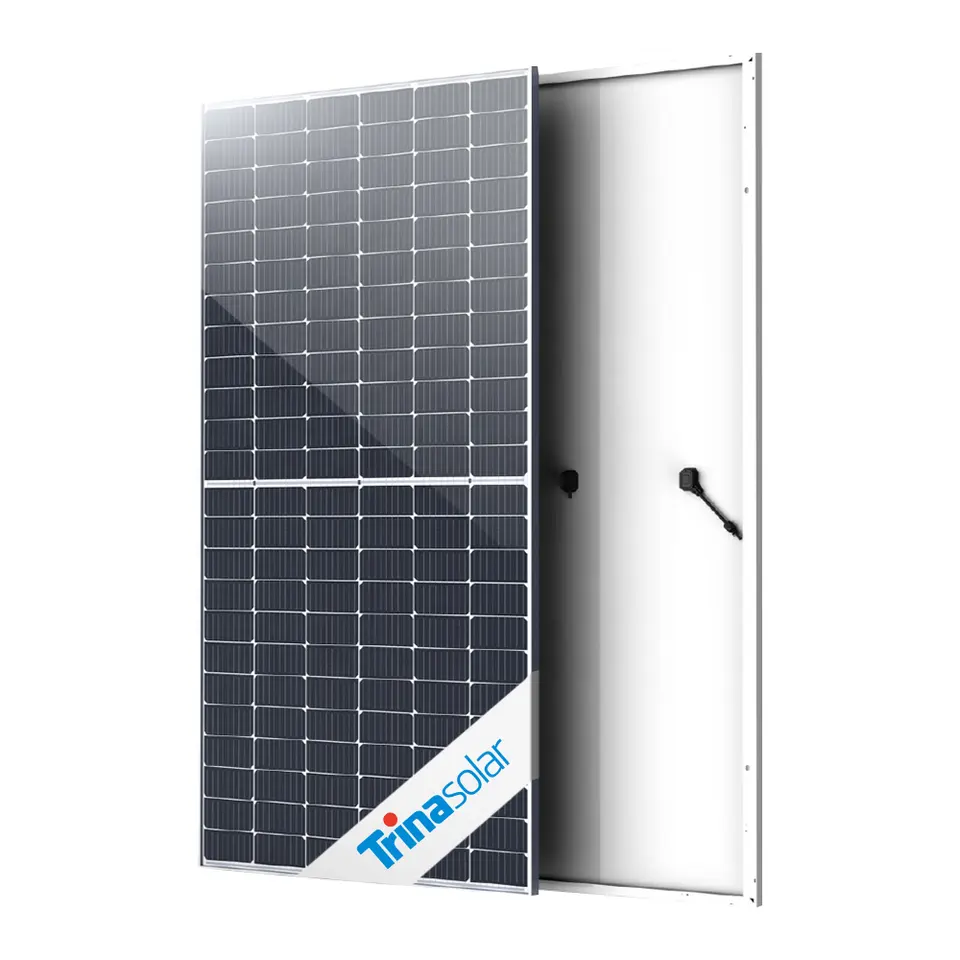

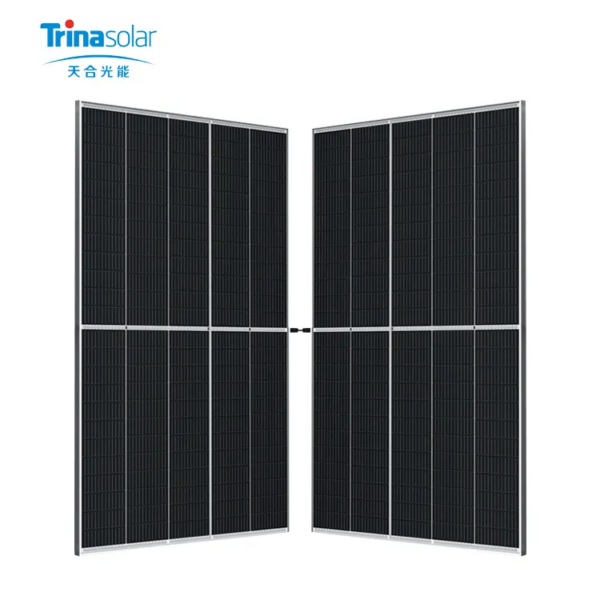

Sunway Trina 144cells 182mm 390w 405w Monocrystalline Half Cell Solar Panel

Sunway Trina 144cells 182mm 390w 405w Monocrystalline Half Cell Solar Panel

Hot Selling 144cells 390w 395w 400w 405w mono fotovoltaik solar panel for home

Model Number:TSM-DE09
Power Range:390W-405W
Dimensions:1754*1096*35mm
Weight:21kg
Certificate:CE/TUV

ELECTRICAL DATA (STC)

Peak Power Watts-PMAX (Wp)

390

395

400

405

Maximum Power Voltage-VMPP (V)

33.8

34.0

34.2

34.4

Maximum Power Current-IMPP (A)

11.54

11.62

11.70

11.77

Open Circuit Voltage-VOC (V)

40.8

41.0

41.2

41.4

Short Circuit Current-ISC (A)

12.14

12.21

12.28

12.34

Module Effciency η m (%)

20.3

20.5

20.8

21.1

Power Tolerance-PMAX (W)

0 ~ +5

Front Glass

3.2mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass

Frame

30mm(1.18 inches) Anodized Aluminium Alloy

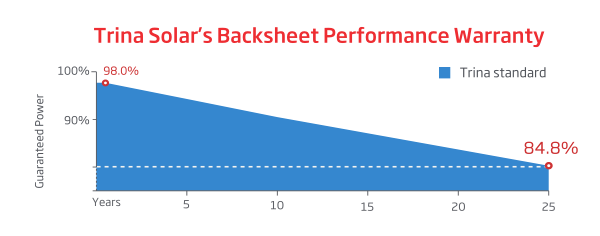

WARRANTY

12 year Product Workmanship Warranty,25 year Power Warranty

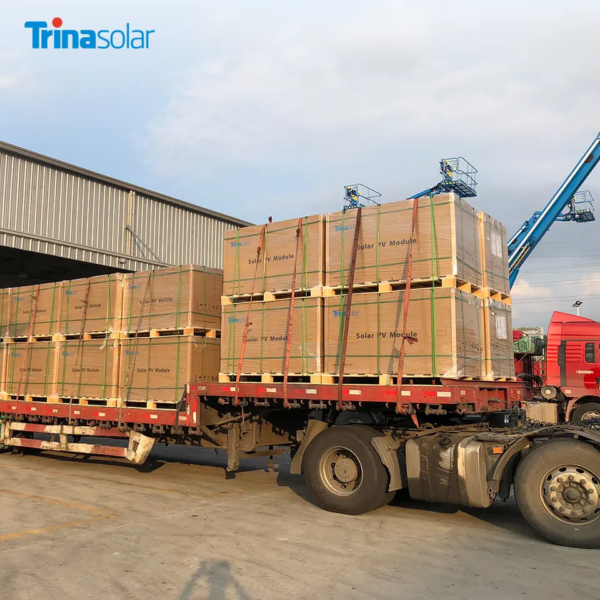

PACKAGING CONFIGURATION

Modules per box: 36 pieces,Modules per 40’ container: 936 pieces

ELECTRICAL DATA (NOCT)

Maximum Power-PMAX (Wp)

295

298

302

306

Maximum Power Voltage-VMPP (V)

31.8

32.0

32.2

32.5

Maximum Power Current-IMPP (A)

9.26

9.32

9.38

9.41

Open Circuit Voltage-VOC (V)

38.4

38.6

38.8

38.9

Short Circuit Current-ISC (A)

9.78

9.84

9.90

9.95

Module Dimensions

1754 ×1096×30 mm (69.06×43.15×1.18 inches)
