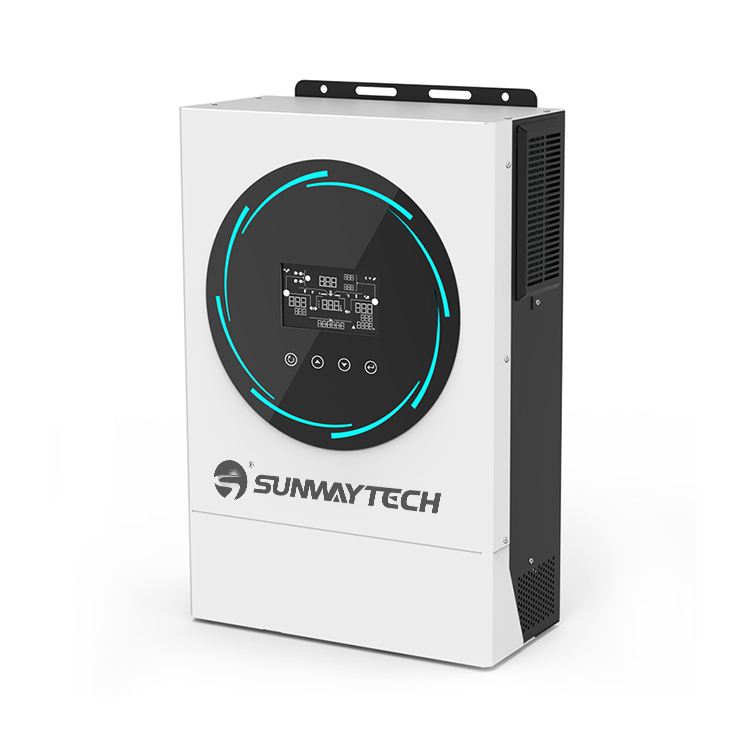

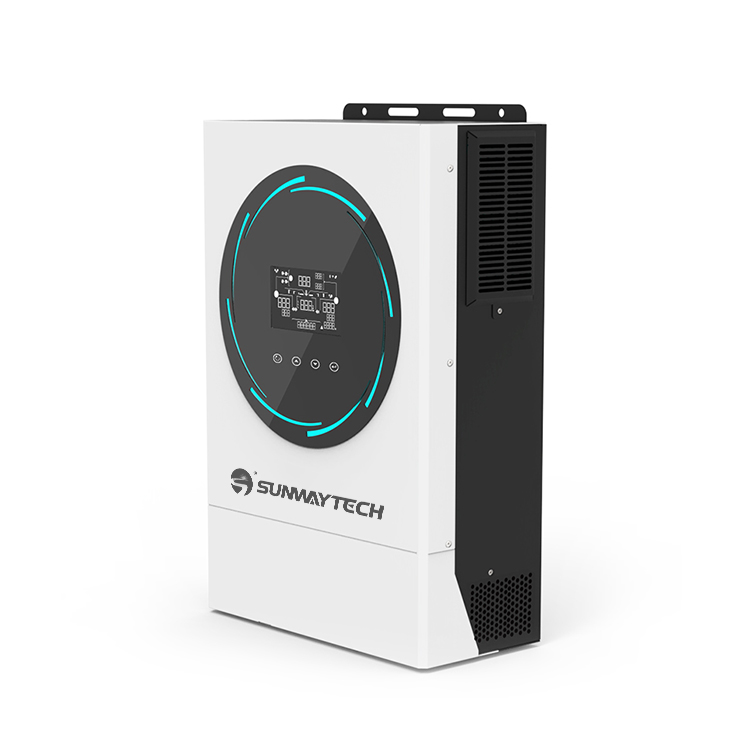

Sunway SUNPOLO 6kw 230V Solar Inverter Hybrid Power Invertor Pure Sine Wave Inverter With 120A MPPT Charger Controller
| Model Number: | SUN-6K-HI |
| Output power： | 8-12kw |
| Output Voltage: | 230V |
| Size: | 535*382*224mm |
| Weight: | 13.5KG |
Features of Sunway Sunpolo Series 6KW Hybrid Inverter:
1. 120A MPPT Solar Charger+AC Charging Current
|
Model No.
|
SUNPOLO 6KVA
|
|
Basical information
|
|
|
Max. PV Input Power
|
6000W
|
|
Rated AC Output Power
|
6000W
|
|
Grid-Tie Operation
|
|
|
PV Input (DC)
|
|
|
Nominal DC Volt/Max DC Voltage
|
360VDC/500VDC
|
|
Start-up Voltage/Initial Feeding Voltage
|
120VDC
|
|
MPPT Voltage Range
|
120-450VDC
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
Grid Output (AC)
|
|
|
Nominal Output Volt
|
230Vac, Single Phase (dual AC output)
|
|
Output Voltage Range
|
184V-265Vac or 195-253V (Selectable)
|
|
Nominal Output Current
|
26.0A
|
|
Power Factor
|
>0.9
|
|
Efficiency
|
|
|
Max. Conversion Efficiency (DC/AC)
|
96%
|
|
Off-Grid Operation
|
|
|
AC Input (AC)
|
|
|
AC Start-up Voltage/Auto Restart Volt.
|
120Vac-140Vac/180Vac
|
|
Acceptable Input Voltage Range
|
90-280Vac or 170-280Vac
|
|
Max. AC Input Current
|
40A
|
|
PV Input (DC)
|
|
|
Max. DC Voltage
|
500VDC
|
|
MPPT Voltage Range
|
120-450VDC
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
Grid Tie Mode
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac, Single Phase
|
|
Feed-in Voltage Range
|
184V-265Vac
|
|
Max Efficiency DC/AC
|
>95%
|
|
Battery Mode Output
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac (dual AC output)
|
|
DC output
|
1pc*12Vdc/10A Max
|
|
Waveform
|
Pure sine wave
|
|
Efficiency(DC to AC)
|
93%
|
|
Hybrid Operation
|
|
|
PV Input (DC)
|
|
|
Nominal DC Volt/Max DC Voltage
|
360VDC/500VDC
|
|
Start-up Voltage/Initial Feeding Voltage
|
120VDC
|
|
MPPT Voltage Range
|
120-450VDC
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
Grid Output (AC)
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac, Single Phase (dual AC output)
|
|
Output Voltage Range
|
184V-265Vac or 195-253V (Selectable)
|
|
Nominal Output Current
|
26.0A
|
|
AC Input (AC)
|
|
|
AC Start-up Voltage/Auto Restart Volt.
|
120Vac-140Vac/180Vac
|
|
Acceptable Input Voltage Range
|
90-280Vac or 170-280Vac
|
|
Max. AC Input Current
|
40A
|
|
Battery Mode Output
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac (dual AC output)
|
|
DC output
|
1pc*12Vdc/10A Max
|
|
Waveform
|
Pure sine wave
|
|
Efficiency(DC to AC)
|
93%
|
|
Battery & Charger
|
|
|
Battery Type Supported
|
Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/LiFePO4
|
|
Nominal Battery Voltage
|
48Vdc
|
|
Max Solar Charge Current
|
120A
|
|
Max AC Charge Current
|
120A
|
|
Max Total Charge Current
|
120A
|
|
General
|
|
|
Products Dimension,D X W X H (mm)
|
456*303*148
|
|
Product Net Weight(kgs)
|
12
|
|
Packing Dimension,D X W X H (mm)
|
535mm*382*mm*224mm,1PC/CTN
|
|
Gross Weight(kgs)
|
13.5
|
|
Parallel functions Optional
|
Yes, optional, max 9pcs
|
|
Communication Interface
|
RS232,USB,RS485,WIFI
|
|
Environment
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
Operating Temperature
|
-10℃ to 50℃
|
|
Storage Temperature
|
-15℃ to 60℃
|
|
*Product specifications are subject to change without further notice
|
|
