| Model Number: | SW51B300TG2 |
| Capacity： | 10KWH 15KWH |
| Battery Rated Voltage: | 51.2V |
| Dimensions（mm）: | L640*W360*H895mm |
| Weight（kg）: | 90±0.5Kg |
Sunway removable battery is a reliable and user-friendly energy storage system with a power range of 10-15kWh. It is equipped with CE and IEC certifications, ensuring that it meets the highest safety standards and providing customers with peace of mind.The product is designed for a variety of applications, including backup power, solar PV systems, and energy efficiency solutions. It is easy to install and compatible with most leading energy storage systems, making it a perfect choice for those looking to improve their energy efficiency and reduce their carbon footprint.
|
Models
|
SW51B200TG2
|
SW51B300TG2
|
|
Array mode
|
16S1P
|
16S1P
|
|
Nominal Capacity
|
200Ah(0.2C charge and 0.2C discharge)
|
300Ah(0.2C charge and 0.2C discharge)
|
|
Minimum Capacity
|
≥200Ah(0.2C charge and 0.2C discharge)
|
≥300Ah(0.2C charge and 0.2C discharge)
|
|
Watt Hour
|
10240Wh
|
15630Wh
|
|
Nominal Voltage
|
51.2V
|
|
|
Initial AC Impedance
|
IR≤1mΩ(at 1kHz after standard charge)
|
|
|
Charging Voltage
|
58.4V
|
|
|
Charging cut-off current
|
4A(0.02C)
|
6A(0.02C)
|
|
Standard charging method
|
Constant Current:50A Max Charge Current:50A
|
|
|
Charging limit function
|
10A
|
|
|
Charge limit trigger
|
55A
|
110A
|
|
Standard discharging method
|
Constant current of 100A
|
Constant current of 150A
|
|
Maximum continuous discharge current
|
100A
|
150A
|
|
Discharge overcurrent protection
|
160A±10A( 200±100ms)
|
200A±10A( 200±100ms)
|
|
Cycle Life
|
4000 cycles (0.5C charge ，0.5C discharge, capacity retention ≧80%)
|
|
|
Communication mode
|
RS232/RS485/CAN
|
|
|
Weight(Kg)
|
90±0.5Kg
|
120±0.5Kg
|
|

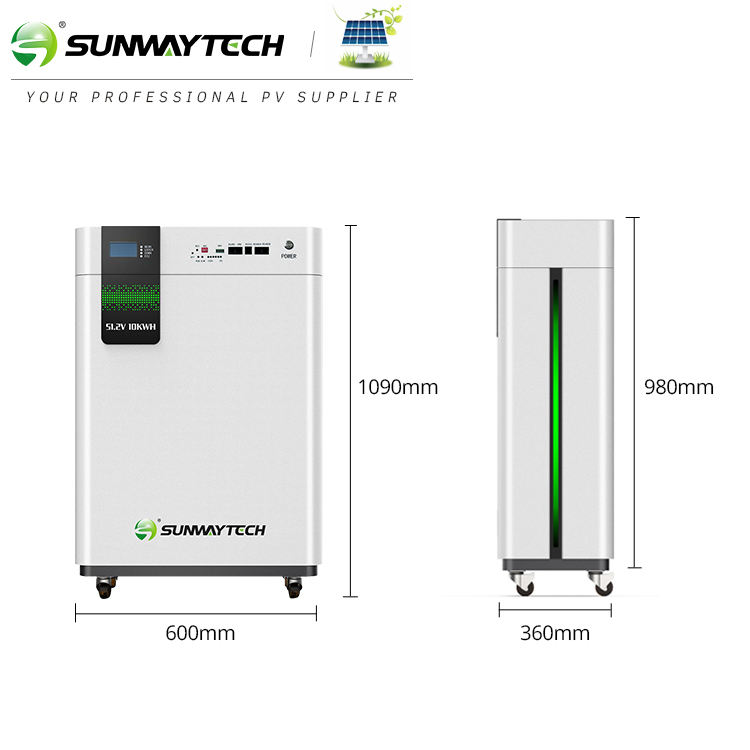

Size
|
L640*W360*H895mm
|
L600*W360*H1045mm
|
|
Operating Temperature
|
Charging：0℃~60℃
|
|
|
Discharging： -15℃~65℃
|
||
|
Storage Temperature
|
1 month： -20℃~60℃
|
|
|
6 months： -20℃~45℃
|
||
|
1 year： -10℃~25℃
|
||
|
Relative Humidity
|
65±20%
|
|
|
Delivery Capacity
|
SOC45%±10%
|
|
|
Charge retention and capacity recovery capability
|
Standard charge the battery, and then put aside at room temperature for 28d or
55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge ≥90
|
|
|
Certifications
|
CE、IEC、UN38.3，etc
|
|
